Summary of Contents for Attero Tech Zip4

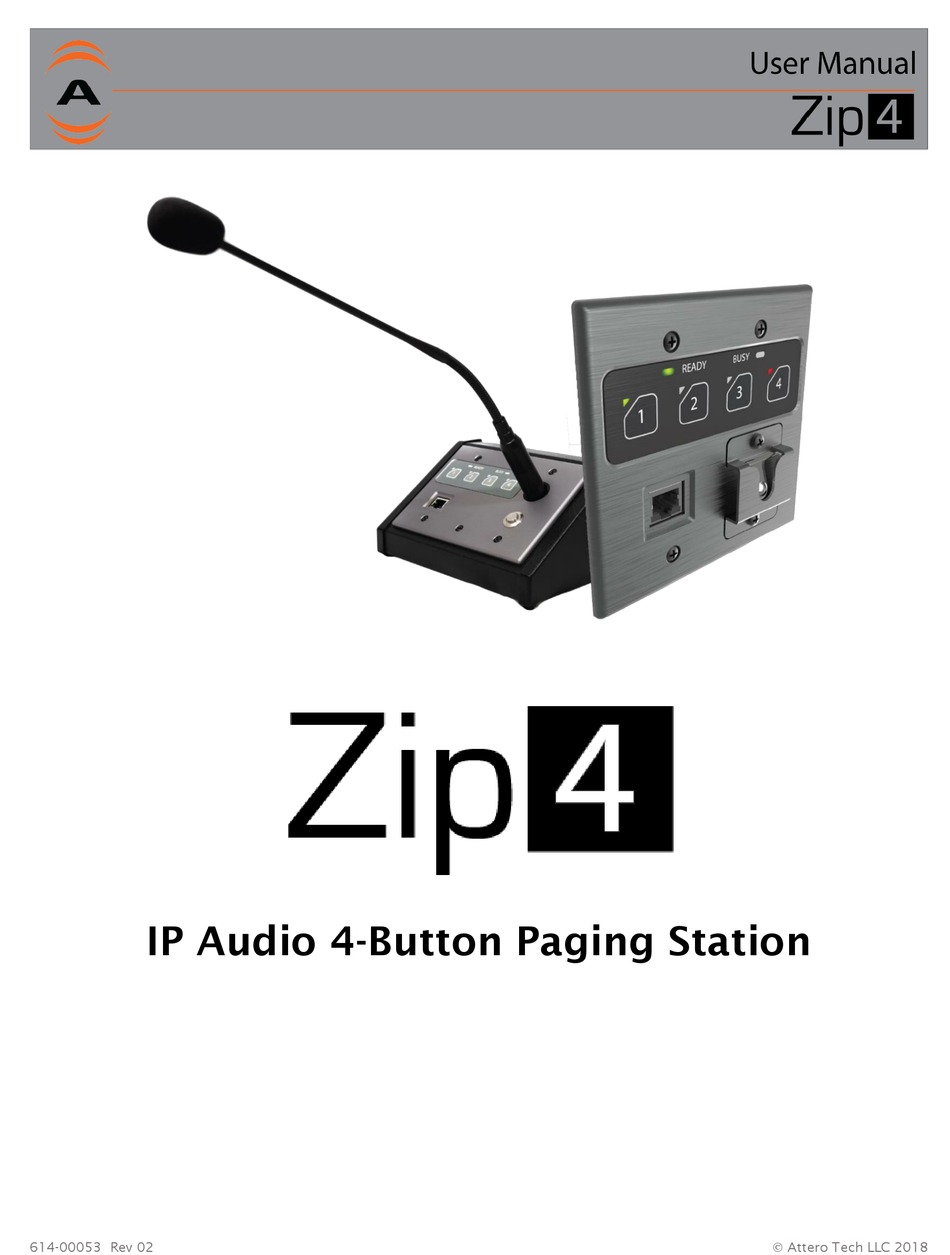

- Page 1 IP Audio 4-Button Paging Station 614-00053 Rev 02 Attero Tech LLC 2018...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 Should any defect develop, Attero Tech, LLC will, at our option, repair or replace any defective parts without charge for either parts or labor. If Attero Tech, LLC cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item.
-
Page 4: Table Of Contents
2.2 – Mounting ........................................ 8 2.3 – Mic Hanger Options ....................................8 2.4 – Zip4 Dimensions (2-Gang Dimensions) ..............................9 2.5 – Zip4-3G Dimensions (3 – Gang) ................................10 3 – Device Operation ..............................................11 3.1 – Q-SYS Integration ....................................11 3.1.1 –... -
Page 5: Overview

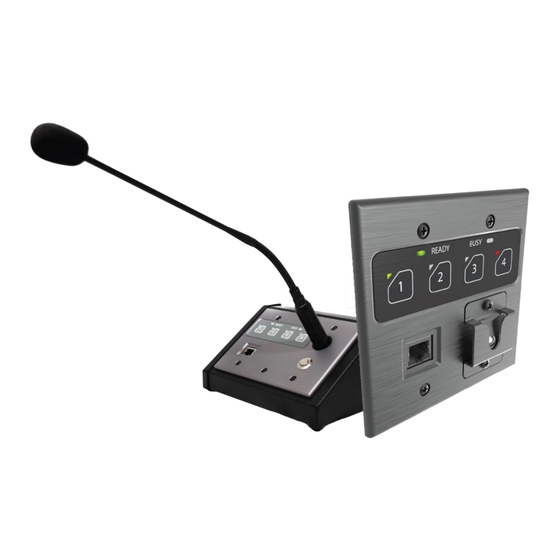

RJ-45 to ensure a reliable and rugged connection. The following are available as options for the Zip4 and may be A latching metal microphone clip is included for holding the PTT ordered separately: microphone when not in use. - Page 6 (Not shown) Side Phoenix microphone connection *Note: The MAC address is located on a label on the rear of each Zip4 unit. This is important for initial device identification as the last six digits make up part of the device’s default network name that is shown when the device is detected by Dante™ Controller or unIFY Control Panel 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞...
-
Page 7: Device Installation
2 – Device Installation 2.2 – Preamp Configuration The microphone preamp is configured by setting 2 DIP switches located on the rear of the Zip4. These should be set prior to 2.1 – Microphone final installation in the target enclosure or wall box. -
Page 8: Mounting
A typical installation will involve mounting the Zip4 wall plate into a pre-mounted wall box, wall mounting bracket, or desktop enclosure. Before installation, make sure the wall box where the Zip4 is to be installed is pre-wired with a suitable cable back to a PoE-enabled network switch or mid-span injector. -
Page 9: Zip4 Dimensions (2-Gang Dimensions)
2.5 – Zip4 Dimensions (2-Gang Dimensions) Complete CAD drawings are available for download via the Attero Tech website and customer portal. 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞ (260) 496-9668 ⁞ www.atterotech.com Page 9... -
Page 10: Zip4-3G Dimensions (3 - Gang)
2.6 – Zip4-3G Dimensions (3 – Gang) 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞ (260) 496-9668 ⁞ www.atterotech.com Page 10... -
Page 11: Device Operation
When set to “No”, only a single zone group can be selected For integrating the Zip4 with a QSC Q-SYS Core DSP, a plug-in has at one time. been developed that makes the ZIP4 and Zip4-3G operate like the Virtual Paging Station (VPS) component in Q-SYS Designer. -
Page 12: Plug-In Setup
“Auto” will activate a live page in possible and switch to a The plug-in for the Zip4 is designed to work in a similar way to “delayed” page if the required zones are busy. -
Page 13: Security
While “Locked” no pages may be initiated, and the zone status will not be updated on the keypad. Any key press in the locked stated will light the Zip4 keypad backlight, to indicate the Zip4 is awaiting success pin code entry. -
Page 14: 3Rd Party Usage
If the reset was successful, the unit should reboot. 3.4 – Firmware Updates If a firmware update for the Zip4 is released, it may be applied in the field by the end user or installer. The update process takes advantage of the smart firmware update tool in Attero Tech’s unIFY Control Panel application. -
Page 15: Architects & Engineers Specification - (Zip4)
44.1 kHz or 48 kHz. The Dante™ interface unit shall receive power over the Ethernet cable from an 802.3af PoE compliant network switch. The Dante™ interface shall be wall mounted in a standard US dual gang junction box (Zip4). -
Page 16: Device Specifications
Status LEDs Zone Status LEDs (bicolor red/green) Physical Dimensions Microphone Input 4.57” (Zip4) 6.38” (Zip4-3G) Width (Front) Front mounted RJ-45 with integrated PPT button Input Type (Zip4) Height (Front) 4.49” (Zip4) 4.49” (Zip4-3G) Side-mounted 6-pin depluggable 1.5” (Zip4) 1.5” (Zip4-3G) Depth...
