SYR Safe-T Connect
Operating manual
(translation of original version)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Safe-T Connect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SYR Safe-T Connect

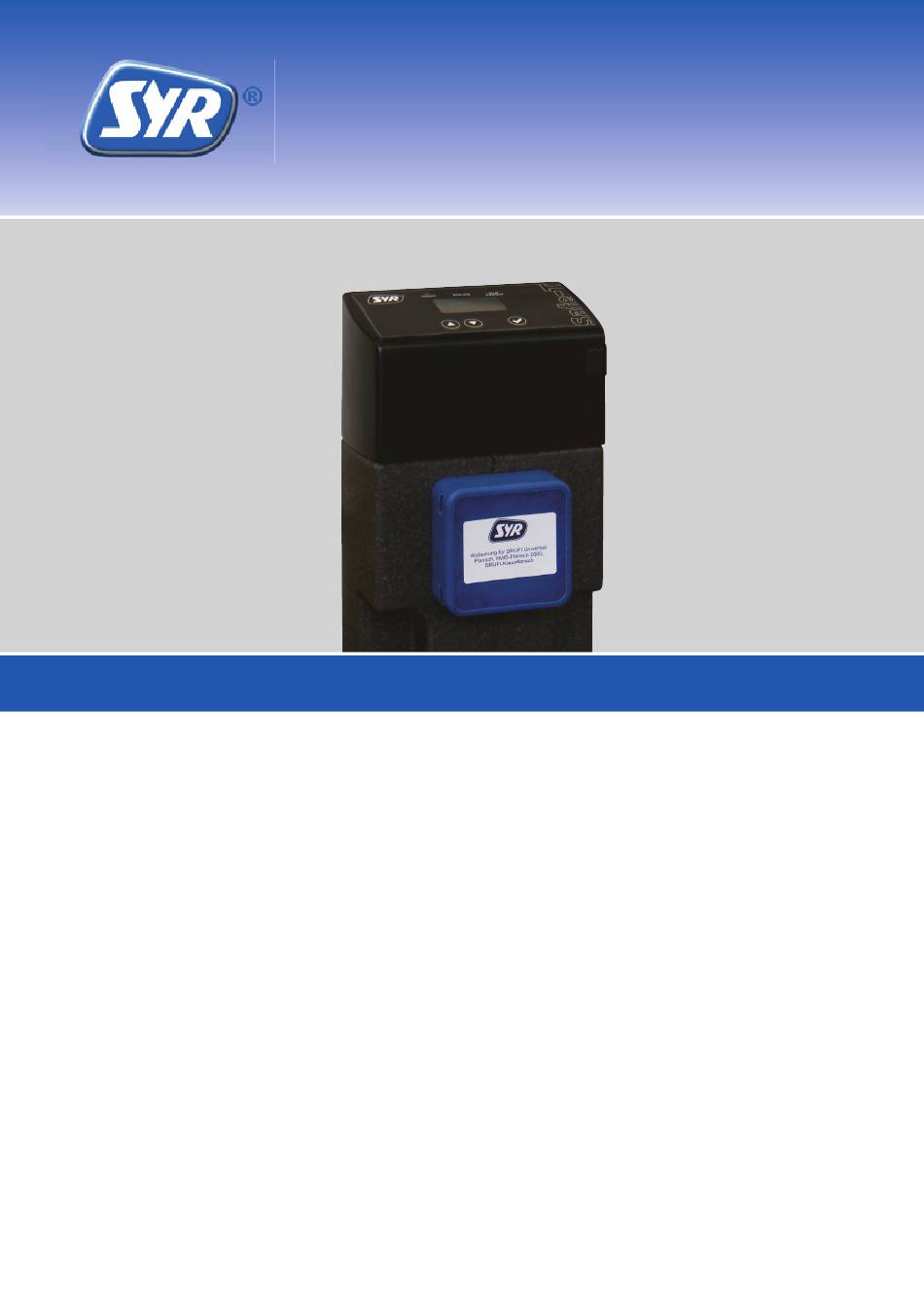

  • Page 1 SYR Safe-T Connect Operating manual (translation of original version)
  • Page 2 SYR Hans Sasserath GmbH & Co. KG Mühlenstrasse 62 41352 Korschenbroich © SYR Hans Sasserath GmbH & Co. KG Copying of this manual, including of extracts, is only permitted with the written permission of Hans Sasserath GmbH & Co. KG.
  • Page 3: Table Of Contents

    Operation ..........15 6.1. Controls on the Safe-T Connect .......15 6.1.1.
  • Page 4: General

    General General 1.1. About this manual This operating manual enables you to operate your SYR Safe-T Connect leak- age protection safely and efficiently. It is a supplied with the product and must always be kept accessible for the user. Due to technical developments, images and descriptions in this operating man- ual may differ from the Safe-T Connect leakage protection actually delivered.
  • Page 5: Copyright Protection

    These documents may be neither reproduced nor made available to third par- ties, in particular competing companies, without the express authorisation of SYR. Note that there is a patent protection for the SYR Safe-T Connect leakage pro- tection. 1.4. Warranty The manufacturer provides a warranty in accordance with the conditions of sale and delivery.
  • Page 6: Safety

    The SYR-Safe-T Connect is an effective leakage protection in accordance with DVGW VP 638 for dwellings. The appliance is adaptable to all SYR flanges from DN 20 to DN 32. A 100 % protection against water damage cannot be guaran- teed for every possible system.
  • Page 7: Servicing And Repair Work

    Safety 2.4. Servicing and repair work Servicing and repair work may only be carried out by trained and authorised specialists. These are persons who, on the basis of training, instruction or expe- rience, have been authorised to carry out the required work and can recognise and avoid the possible risks involved.
  • Page 8: Construction And Operation

    Construction and operation Construction and operation 3.1. Contents of package Fig. 1: SYR-Safe-T Connect package contents Legend 1 Electronics unit 2 Insulating casing 3 Blanking cap 4 Leakage protection valve 5 Mains adapter 6 Batteries (4x AAA) 7 Operating manual...
  • Page 9: Construction

    Construction and operation 3.3. Construction Fig. 2: SYR-Safe-T Connect construction Legend 1 LCD display 2 LEDs for status indication 3 Control buttons 4 Battery compartment 5 Mains adapter connection (9 V DC) 6 Connection for humidity sensor 7 LAN connection...
  • Page 10: Function

    The maximum permissible parameters can be configured or changed directly on the Safe-T Connect or via software on a smartphone or PC. Even if there is a loss of Internet connectivity, the parameters will continue to be monitored. How- ever, there will be no communication with the server during this time.
  • Page 11: Installation And Commissioning

    Installation and commissioning Installation and commissioning 5.1. Safety notices for installation and commissioning Installation and commissioning of the SYR Safe-T Connect may only be carried out by authorised trained and instructed specialists, who have the appropriate knowledge. Compliance is required with the applicable safety provisions for drinking water installations.
  • Page 12: Installation

    It is essential to observe the flow direction! 5.2.2. Installation of the SYR-Safe-T Connect The SYR-Safe-T Connect is adaptable to all SYR flanges from DN 20 to DN 32. Note: In the case of continu- If a SYR DRUFI + pressure reducer-filter combination is already installed, this ous drawing (e.g.
  • Page 13 Fig. 4: Battery insertion ► Connect a network cable (1, fig. 5) and the mains adapter (2) to the Safe-T Connect. Fig. 5: Connections to the Safe-T Connect ► Plug the network cable and the mains adapter into the sockets provided. Note: ►...
  • Page 14: Commissioning

    The system goes into the “open” position and changes to the normal operating state. You can make all the required settings directly on the Safe-T Connect, with the SYR app on your smartphone or via a PC. The SYR app is available free of charge from the App Store.
  • Page 15: Operation

    LED Pulse indicates flow (LED flashes) red LED Fault indicates fault (LED lights up) green LED SYR Connect Connection made to server (LED flashes) The following graphic shows sections of the menu structure of the Safe-T Connect:...
  • Page 16 Operation Fig. 8: Sections of the menu structure of the Safe-T Connect...
  • Page 17: Configurable Parameters

    Operation 6.1.1. Configurable parameters The following table shows the configurable parameters. Parameter Adjustment range Factory setting Start menu Presence leakage 100 l ... 1,500 l 400 l (at home level) Absence leakage Off, 10 l ... 100 l (away level) Leakage protection 0 ..
  • Page 18 Operation Parameter Adjustment range Factory setting System and device information Firmware Safe-T Connect VX.X Serial number 12345678 Code number 123456789 Battery voltage 0 ... 6 V. Temperature Error log Some important terms in the menu are explained in the following table with examples.
  • Page 19: Setting The Presence Leakage On The Appliance (Without Lan Cable Plugged In)

    6.1.3. Emergency open function The emergency open function enables the valve to be opened in the event that the SYR Safe-T Connect shuts off at the same time as a power cut (no batteries inserted or batteries flat). The access to the emergency open function is underneath the control unit.
  • Page 20 Possible material damage through improper assembly! Because of the manual intervention, the control unit will no longer fit on the appliance! ► Do not insert the controller on the Safe-T Connect for recom- missioning! ► Reconnect the controller to the mains or insert batteries.
  • Page 21: Control Via Syr App

    As an alternative to using the controls on the appliance, you can make the ba- sic settings from your smartphone. You first need to install the SYR app on your smartphone or use your Web browser (http://syrconnect.de) and follow the us- er instructions.
  • Page 22: Service And Maintenance

    - Press the button. Another attempt or limit switch defective) will be made to reach the position. - Inform SYR Service 0800/6105000. - no turbine signal (turbine defective - Inform SYR Service 0800/6105000. or no water drawn for 30 days) - Presence leakage detected.
  • Page 23: De-Installation And Disposal

    De-installation and disposal De-installation and disposal 9.1. Dismantling A Safe-T Connect that is no longer functional must be de-installed and sent for environmentally compatible disposal. ► Remove the mains adapter and network cable. ► Dismantle the Safe-T Connect from the universal flange.
  • Page 24: Technical Data

    Technical data 10. Technical data 10.1. Safe-T Connect Units Safe-T Connect Mains adapter voltage V DC Batteries 4 x AAA Protection class IP 21 Max. load on external floating contact External input IN2 V/mA not less than 12/20 External output (Out) 24/2 max.
  • Page 25: Dimensions

    Technical data 10.3. Dimensions 131,5 Fig. 12: Dimensional drawing, Safe-T Connect...
  • Page 28 Hans Sasserath GmbH & Co. KG • Mühlenstr. 62 • D-41352 Korschenbroich • Tel. +49 2161 6105-0 • Fax +49 2161 6105-20 • info@syr.de • www.syr.de...
