Summary of Contents for FM Electronics FM4040

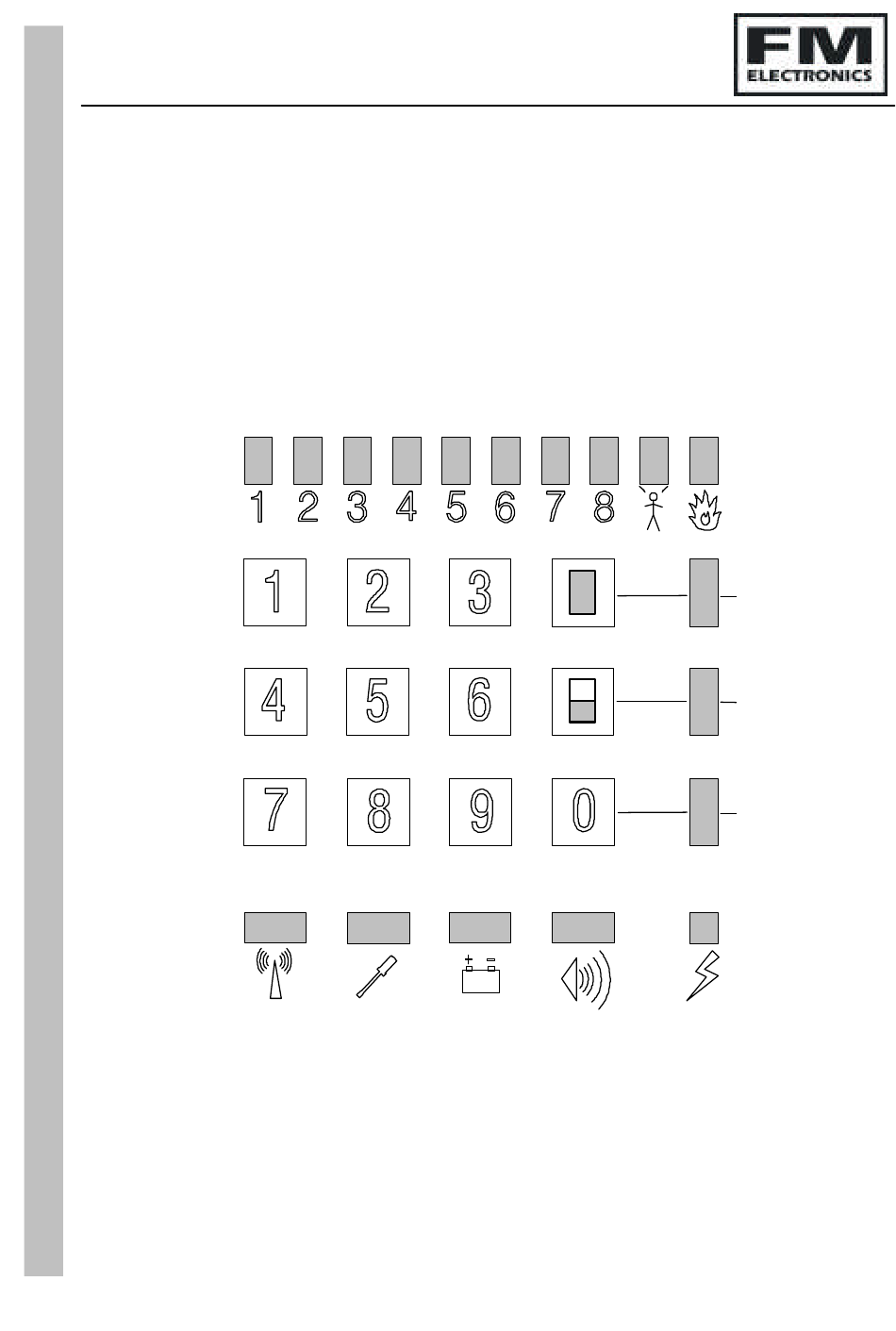

- Page 1 FM4040 Installation Instructions FM4040 CLASS 6 INTERFACE INSTALLATION INSTRUCTIONS Zones 1-8 Panic Fire Full set Part set Signalling Tamper Alarm Power on battery FM Electronics Ltd. The market leader in high security wireless alarm systems CI 202 Iss 1 26-11-02...
-
Page 2: Table Of Contents
FM4040 Installation Instructions CONTENTS MAIN PCB CONNECTIONS............3 INTERFACE CONNECTIONS ............4 INSTALLATION................6 HOW TO MAKE A PROGRAMMING CHANGE......8 ADDING WIRELESS DEVICES............ 9 PROGRAMMING – SYSTEM OPTIONS ........11 PROGRAMMING – RESTORE FACTORY DEFAULTS ..... 11 PROGRAMMING –ENGINEER FUNCTIONS & TESTS ..... 12 PROGRAMMING –... -
Page 3: Main Pcb Connections
When an Armed voltage from the main control panel is connected to one of these terminals, the FM4040 knows when the main control is armed. Once armed any activation from a wireless detector will be stored in the engineers log. -
Page 4: Interface Connections
FM4040 Installation Instructions INTERFACE CONNECTIONS CI 202 Iss 1 26-11-02 Page 4 of 20... - Page 5 FM4040 Installation Instructions INTERFACE CONNECTIONS Relay outputs Are clean change over contacts. The designations show the relay when energised. (The default state is de-energised and may be inverted with program option 64) Arming Outputs These voltage outputs can be used to arm the main control panel using a wireless 4173 remote control or 4180 wireless keypad.
-
Page 6: Installation
FM4040 Installation Instructions INSTALLATION The factory defaults for the user and engineer codes are:- USER CODE = 1 2 3 4 ENG CODE = 4 6 7 9 The recommended installation procedure is as follows: 1. Label detectors. Each detector has a label inside for you to write the zone number onto for reference during installation and for later service reference. - Page 7 FM4040 Installation Instructions INSTALLATION cont.. 6. Carry out range test If you keep a 4173 remote control for testing, you can program this onto the system and then go to each detector location in turn and verify that the control can be armed and disarmed from all detector locations.
-
Page 8: How To Make A Programming Change
FM4040 Installation Instructions Once the Sounders and dialler have been connected and the installation completed a full test with remote signalling should be carried out. HOW TO MAKE A PROGRAMMING CHANGE The following sequence shows how to change a program option: 1. -
Page 9: Adding Wireless Devices
FM4040 Installation Instructions When all programming is complete Key in 48 to exit engineer mode ADDING WIRELESS DEVICES When installing the system you may find it easier to label each detector with its zone number and learn them into the panel before installation. Once programmed into the panel's memory, the information will not be lost even when power is removed from the panel. - Page 10 FM4040 Installation Instructions You can add up to 8 PA's to the panic zone by simply pressing each one in turn. Press the Full Set key to exit. FIRE ALARM SENSORS To delete all Fire sensors press Part & 0 keys together.
-
Page 11: Programming - System Options
FM4040 Installation Instructions PROGRAMMING – SYSTEM OPTIONS P.A. SILENT / AUDIBLE The factory default is silent. 1= Silent* O= Audible Press the full set key to exit. SUPERVISORY Do not select supervisory unless all your detectors are 4600 series. Do not select supervisory if using zoned Panic buttons. -
Page 12: Programming -Engineer Functions & Tests
FM4040 Installation Instructions PROGRAMMING –ENGINEER FUNCTIONS & TESTS AUDIBLE RECEIVE MODE The output from the receiver can be heard on the panel loudspeaker. Press the full set key to exit. DISPLAY ENGINEERS LOG Press keys 1 to 8 to view the last 8 events. - Page 13 FM4040 Installation Instructions Key 6 = Part set Key 7 = Full set Key 8 = Jamming Press the full set key to exit CI 202 Iss 1 26-11-02 Page 13 of 20...
-
Page 14: Programming - Inverting The Inputs & Outputs
FM4040 Installation Instructions PROGRAMMING – INVERTING THE INPUTS & OUTPUTS 63 INVERT ARMING INPUTS The Part & Full armed inputs are +ve applied. This option allows you to program the inputs as +ve removed. Key 1 – changes Part set input Key 2 –... - Page 15 FM4040 Installation Instructions Key 4 changes Panic relay (Z4 LED on = relay normally energised. Off =relay normally de-energised. Key 5 changes Fire relay (Z5 LED on = relay normally energised. Off =relay normally de-energised. Key 6 changes Part set output. (Z6 LED on = -ve removed. Off = -ve applied.
-
Page 16: Appendix Auser Facilities
FM4040 Installation Instructions APPENDIX A USER FACILITIES CHANGING YOUR PIN NUMBER. You can change your 4 digit PIN number at any time by the following sequence. Enter your 4 digit pin number. Press key 7. The full set indicator on the panel will flash. - Page 17 FM4040 Installation Instructions APPENDIX A USER FACILITIES cont.. TESTING YOUR ALARM SYSTEM If your system incorporates an automatic telephone dialler going through to a neighbour let your neighbour know you are carrying out a test . If you have Police response via a Central Station connection, triggering the alarm will not be acceptable to the Police.
-
Page 18: Appendix Bprogram Options (Not Class 6)
FM4040 Installation Instructions APPENDIX B PROGRAM OPTIONS (NOT CLASS 6) These program options are for other applications. For Class 6 alarm systems they should all be set to the Factory default. 61 ZONE 1 TO 8 RELAY OPERATION MODE The relays either operate all the time or only when the arming input is active. - Page 19 FM4040 Installation Instructions 78 Zone 8 operation time Key 1 = NORMAL the relay follows the detector. (Default) Key 2 = Latch whilst Armed input is present Key 3 = Momentary 2 seconds Key 4 = Momentary 10 seconds Key 5 = Momentary 30 seconds...
-
Page 20: Appendix Cfault Finding Guide
FM4040 Installation Instructions APPENDIX C FAULT FINDING GUIDE ZONE LED FLASHING Flashing with tamper LED. (A detector has an open tamper). Flashing with Battery LED. (The detectors battery needs replacing). SIGNALLING LED ON The system is being blocked by a continuous transmission.
