Summary of Contents for Martin Audio ADORN A40

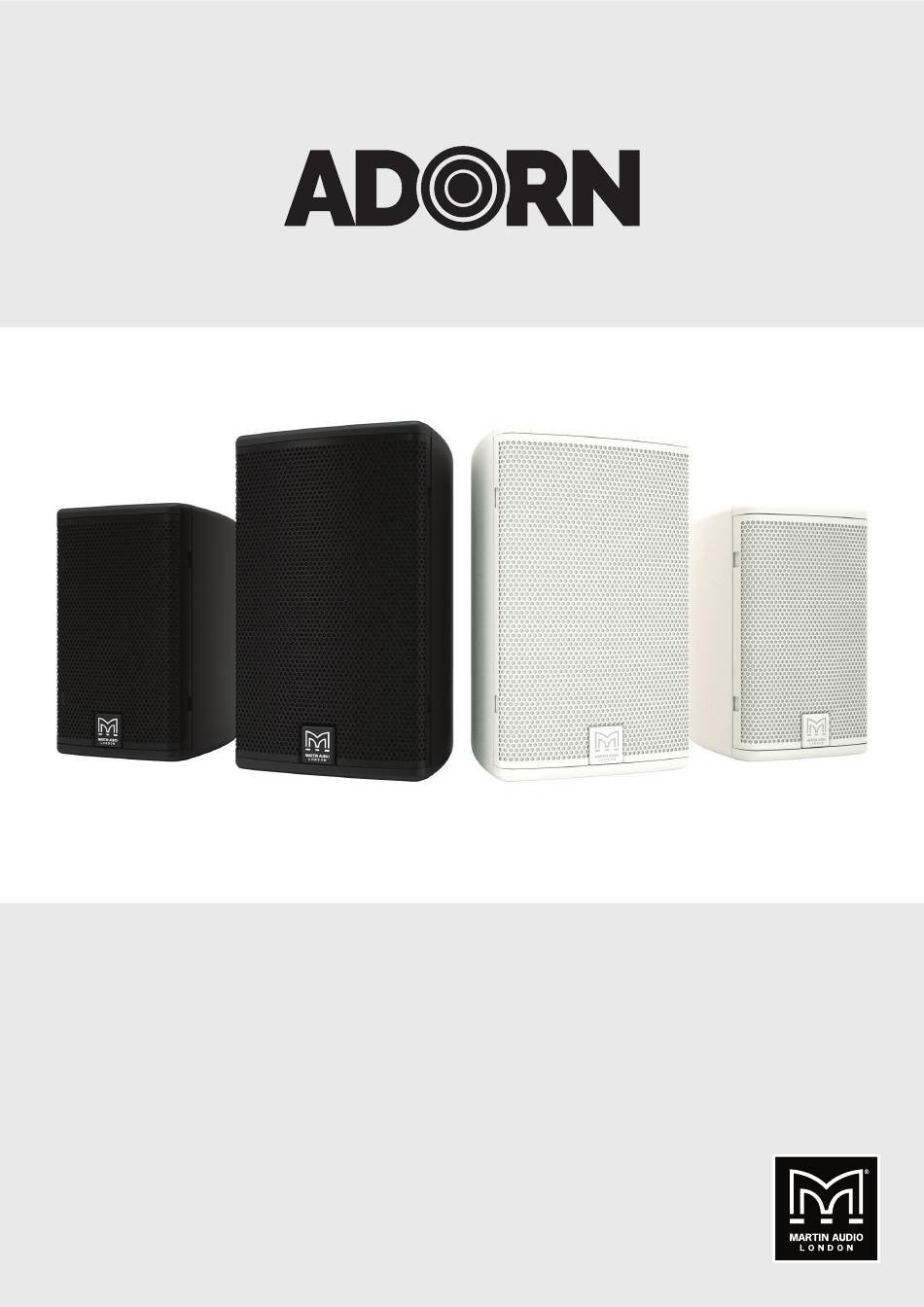

  • Page 1 QUICK START GUIDE...

  • Page 2: System Requirements

    Low Impedance Systems The ADORN A40 and A55 are designed to be used in a low impedance system. The A40T and A55T can also be used in a low impedance system by selecting the 16W position on the selector switch on the back of the speaker. A conventional power amplifier or mixer-amplifier designed for use with low impedance loads must be used.

  • Page 3: Wall Mounting

    Fit the wall bracket in the appropriate orientation for horizontal or vertical adjustment. Fixings appropriate for the wall surface and weight of the cabinet must be used to ensure a safe and secure installation. Copyright © 2019 Martin Audio Ltd. ADORN QUICK START GUIDE V1.0...
  • Page 4 An alternative option is to ceiling mount the ADORN speakers using the optional Ceiling Bracket part number CDDCB5. Accessories ADORN COVER Waterproof connector cover ADORN GRILLE Water resistant grille Copyright © 2019 Martin Audio Ltd. ADORN QUICK START GUIDE V1.0...

  • Page 5: System Examples

    System 1 - A basic ADORN system System input connected to a VIA2502 Amplifi er. Up to four ADORN A40 or A55 speakers connected per channel. The speakers are wired in parallel by “daisy-chaining” speaker connections from each speakers’ push terminal inputs.
  • Page 6 CLIP CLIP CLIP EDIT EDIT3 LOUDSPEAKER ENTER UTILITY EDIT EDIT EDIT EDIT EDIT EDIT EDIT EDIT PROCESSOR DX0.5 LOUDSPEAKER MANAGEMENT SYSTEM MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE Copyright © 2019 Martin Audio Ltd. ADORN QUICK START GUIDE V1.0...
  • Page 7 All information is Copyright © 2019 Martin Audio Ltd. Martin Audio, the Martin Audio logo and Hybrid are registered trademarks of Martin Audio Ltd. in the United Kingdom, United States and other countries; all other Martin Audio trademarks are the property of Martin Audio Ltd.
