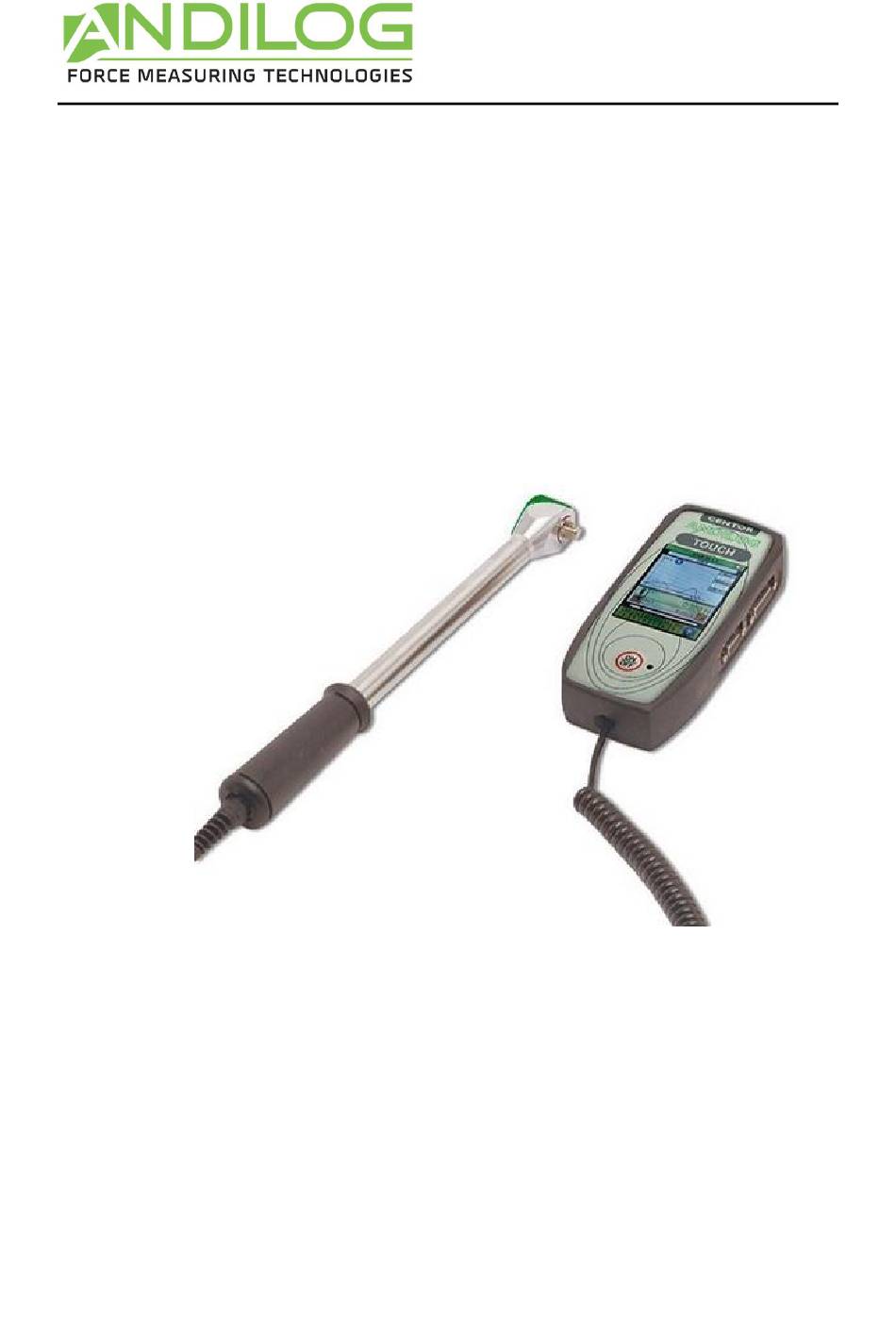

- Page 1 Instructions Manual GYROTOK Gauge Operating Manual GYROTORK DUAL V6.19 ANDILOG COM-TEN / ANDILOG USA BP62001 – 13845 Vitrolles - FRANCE 6405 49th St North – info@andilog.com Pinllas Park, FL, 33781 - USA www.andilog.com sales@com-ten.com Ph : +33 442 348 340...
-
Page 2: Table Of Contents
Instruction Manual – V6.19 GYROTORK DUAL version INTRODUCTION TO THE GYROTORK ................3 DEFINITIONS: ........................3 • Internal Channel or V1: Torque transducer wrench ............3 • External Channel or V2 or SPIP: Angle sensor ............... 3 HANDLING ........................4 Unpacking ......................... - Page 3 Instruction Manual – V6.19 GYROTORK DUAL version DATASTICK – USB Memory Stick (optional) ..............23 Presentation ......................23 Configuration ......................23 Save your data ......................25 Use multiple USB sticks .....................25 INPUT, OUTPUT & Pedal....................26 Outputs ........................26 Inputs and Pedal .......................27 GENERAL Setup ......................27 Buzzer ........................27...
-
Page 4: Introduction To The Gyrotork
GYROTORK DUAL version INTRODUCTION TO THE GYROTORK Thank you for choosing the GYROTORK gauge manufactured by ANDILOG Technologies. This torque gauge is the result of 25 years experience in torque and torque measurement with new electronic technologies offering a higher-performance and more reliable instrument. -
Page 5: Handling
The display can be affixed to a test stand via two M5 or two 10-32 screws, which should not extend through the back cover more than 3 mm. Please contact ANDILOG Technologies if you need more information or if you need a fixture to mount your torque gauge to a test stand. -
Page 6: Starting Your Torque Gauge
External sensors are linked to GYROTORK Gauge through a special connector called SPIP. • For a GYROTORK Dual, both sensors (internal and external) are simultaneously scrutinized The following information regarding the sensor is displayed: • V1 for internal or V2 for external. -
Page 7: Main Screen - Measurement
Instruction Manual – V6.19 GYROTORK DUAL version 4. Main screen – Measurement After the starting (identification) screen, you access the main measurement screen as displayed below. According to the configuration of your GYROTORK, some information will be displayed, or not. -
Page 8: Touch Area On The Measure Screen
Instruction Manual – V6.19 GYROTORK DUAL version 4. Main display: Many values can be displayed in this window. See display screen chapter for details. 5. Auxiliary display: Many values can be displayed in this window. See display screen chapter for details. -
Page 9: Main Menu
Instruction Manual – V6.19 GYROTORK DUAL version 6. Main MENU To access the main menu, press the green bar at the top of the screen. It will display the main menu: Main display setup Test Setup Statistics Setup Basic and general... -
Page 10: Start Your Measurements
Instruction Manual – V6.19 GYROTORK DUAL version III. START your measurements The GYROTORK allows you to draw a graph of your test. The following screen is displayed: Test state Indicator Graph Displaying Area First channel axis Angle axis - 9 -... -
Page 11: Measurement Principles
Instruction Manual – V6.19 GYROTORK DUAL version Measurement principles When the curve mode is activated, the torque gauge is under the “TEST” mode. Here is the process of a TEST: Tare torque gauge Waits to detect torque on the sensor... -
Page 12: Display Setup
Instruction Manual – V6.19 GYROTORK DUAL version If you wish to acquire a more precise graph, you can transfer the data to your computer under continuous mode: • The RS232 output allowing a maximum acquisition rate of 100 values per second •... -
Page 13: Main Screen
Instruction Manual – V6.19 GYROTORK DUAL version 1. Main screen The main display area can show all of the values that appear in the list. Touch this value to display the list of available values. Select the sensor you want to display by touching the green window (channel 1: internal or channel 2: external). -
Page 14: Sensor Units V1
Instruction Manual – V6.19 GYROTORK DUAL version 8. Sensor Units V1 Sensor units are independently selected. Touch the arrow key in the desired display window to display all available units. The units allowed will change with the sensor attached. Torque or travel units. -
Page 15: Type Of Data
Instruction Manual – V6.19 GYROTORK DUAL version 3. Type of Data You can either choose to apply the set point to the “Raw Data” or the “Peak value”. Usually, the raw data is used but you can setup a limit on the maximum or a calculation (mean, standard deviation, break... -
Page 16: Graph & Test Settings
Instruction Manual – V6.19 GYROTORK DUAL version GRAPH & TEST Settings. Touch the graph icon on the setting screen 1. Setups tab. Touch the control in the upper left corner to enable or deactivate the graph. 2. Test settings There are 2 parameters that need to be defined to setup a test •... -
Page 17: Curve Resolution
(Torque 1), External channel. So you can display: The internal channel vs. time The external channel vs. time For GYROTORK Dual only: internal channel vs. external channel (or vice versa) For GYROTORK Dual only: internal and external channel vs. time 5. Output control Graph completion can cause an output control to change. -
Page 18: Calculation Settings
Instruction Manual – V6.19 GYROTORK DUAL version VII. CALCULATION Settings The GYROTORK torque gauge allows you to setup automatic calculations derived from the graph. The settings of the calculation can be done in the Test menu. It is possible to perform 2 simultaneous calculations in addition to raw data, the maximum and the minimum. -
Page 19: Output Actions
Instruction Manual – V6.19 GYROTORK DUAL version 2. Output actions After each calculation, it is possible to activate an output of the torque gauge. Select the output control from the drop down menu to activate (from 1 to 6) then select its running mode: pulse or switch mode and the high or low state. -
Page 20: Record Data
Instruction Manual – V6.19 GYROTORK DUAL version 3: By default the “Tare” will be done automatically once the results are saved; but you can de- activate it. 4: Then you would be able to display the tab of values by touching button “Arrays”. -
Page 21: Communication Settings
Instruction Manual – V6.19 GYROTORK DUAL version COMMUNICATION Settings. You can connect your GYROTORK to a computer through RS232, USB or Analog input, or to a memory USB stick called DATASTICK. Select the communication setup by touching the communication symbol. - Page 22 T: Last 2000 calculated values • U: unit • W: Last Graph • Z: Tare the gauge For the GYROTORK Dual, additional commands are available: • F: Current value sensor 1 • I: Current value sensor 2 • P: Maximum value sensor 1 •...
-
Page 23: Usb Connection
Instruction Manual – V6.19 GYROTORK DUAL version • Torque and displacement data are separated by the TAB character (09 decimal, 09 hex, octal • Lines are terminated through a carriage return (13 decimal, 0D hex and octal 015) 2. USB Connection The USB is set as the RS232 communication: on demand or continue mode;... -
Page 24: Datastick - Usb Memory Stick (Optional)
Instruction Manual – V6.19 GYROTORK DUAL version 5. DATASTICK – USB Memory Stick (optional) Presentation The DATASTICK kit is an option available with the GYROTORK in order to save your data on a USB memory stick. The kit includes a USB Stick, a connection... - Page 25 Instruction Manual – V6.19 GYROTORK DUAL version All of these files are saved as TXT format and so, can be opened with regular Table software, such as Microsoft Excel. Data is separated by a TAB character (09 decimal and 09 hexadecimal) and the rows are separated by a carriage return (decimal 13, hex 0D).
-
Page 26: Save Your Data
« Stick » setttings screen. Use multiple USB sticks The USB stick supplied by ANDILOG at the time of the purchase of the DATASTICK option has been set to communicate with your GYROTORK; and it recognizes the serial number of your GYROTORK. -
Page 27: Input, Output & Pedal
Instruction Manual – V6.19 GYROTORK DUAL version INPUT, OUTPUT & Pedal The GYROTORK is able to communicate and send data to an external device such as a test stand or a programmable logic controller, using its TTL inputs and outputs. -
Page 28: Inputs And Pedal
Instruction Manual – V6.19 GYROTORK DUAL version • Pulse: the output changes state for a period of time of 50ms, and then returns back to its previous state. 2. Inputs and Pedal The 3 inputs (Pedal, E1 and E2) of the GYROTORK can be set separately. These Inputs allow you to do the following actions: •... -
Page 29: Eco Mode
Instruction Manual – V6.19 GYROTORK DUAL version 2. ECO Mode: Reduces power consumption. Useful for long test times and USB communication. 3. Time out settings. You can adjust individual times for sleep and power down. Time out Sleep: Individually adjust times for sleep. The GYROTORK will go to sleep after this time. -
Page 30: Maintenance Panel
Instruction Manual – V6.19 GYROTORK DUAL version XII. MAINTENANCE Panel The maintenance panel allows access to basic test and control functions. Select the maintenance symbol from the setup panel. Touch to set date & time 1. General The Setup tab gives you the torque transducer’s information, the software version, the state of the battery and the possibility to adjust the time and date. -
Page 31: Channels Tab
Instruction Manual – V6.19 GYROTORK DUAL version 3. Channels tab Display details of the sensor memory data and the present settings of all input and output signals. 4. Factory configuration Re-load the factory setup 5. Reset of the Gyrotork From the Version V6.18 on, you can reset your Gyrotork when you press the ON/OFF button XIII. -
Page 32: Appendices
Instruction Manual – V6.19 GYROTORK DUAL version Cable for USB connection: connect your gauge to a computer using the USB output. XIV. APPENDICES 1. Error Messages Information screen: This screen is displayed after completion of internal tests and a minor or major defect has been found. -
Page 33: Factory Settings
Instruction Manual – V6.19 GYROTORK DUAL version 2. Factory Settings Default screens Communications default Test default Setups default Statistics default Maintenance default 3. Connections - 32 -... - Page 34 Instruction Manual – V6.19 GYROTORK DUAL version Connector detail SubDHD 26 pin connected to GYROTORK electronic card I1 input Not used RS232 read data USB device data minus USB host data minus O3 output. Open collector requires 50 k ohm pull up to 5 volts DC...
-
Page 35: Setup Examples
Instruction Manual – V6.19 GYROTORK DUAL version 4. Setup Examples Display with graph: Touch information bar. Touch graph icon. Set Start to Value 1. 1% End time 10 sec Curve resolution = 10000. Axis H = TIME. Axis V = TORQUE1 Send peak data after test complete with send key to the RS232 port: Touch information bar. -
Page 36: Dimensions
Instruction Manual – V6.19 GYROTORK DUAL version 5. Dimensions - 35 -...
