- Page 1 Wireless WIFI Video Doorbell User Manual ---------------------------------------------------------------------------------------------------- Please read this user’s guide carefully before using this products...
-
Page 2: Table Of Contents
Catalogue Products Introduction……………………………………………………………1 Products Description……………………………………………………………2 Pairing Code……………………………………………………………………3 Installation………………………………………………………………………4 E-lock Wire Diagram…………………………………………………………5 Specification……………………………………………………………………6 ID card Operation..................7 App Installation…………………………………………………………………8 Hotspot Configuration …………………………………………………………9 Wireless Router Setting………………………………………………………10 Function Setting………………………………………………………………11 Interface ………………………………………………………………………12 Intercom,Monitor,Unlock Setting……………………………………………13 Exit…………………………………………………………………………… 14 Delete User……………………………………………………………………15 Accessories……………………………………………………………………16 Failure Diagnosis…………………………………………………………… 17 Work environment…………………………………………………………… 18 Notice …………………………………………………………………………... -
Page 3: Products Introduction
1. Products Introduction WiFi video doorbell connects to network via wireless router or network cable.Mobile devices include smartphone or tablet,could connect to the doorbell;After the visitor rings,mobile devices could interact with doorbell via real time video and audio,user can view the visitor,then decide to whether intercom or open the door etc. WiFi doorbell support motion detection alarm,with IR night vision,12V power supply. -
Page 4: Products Description

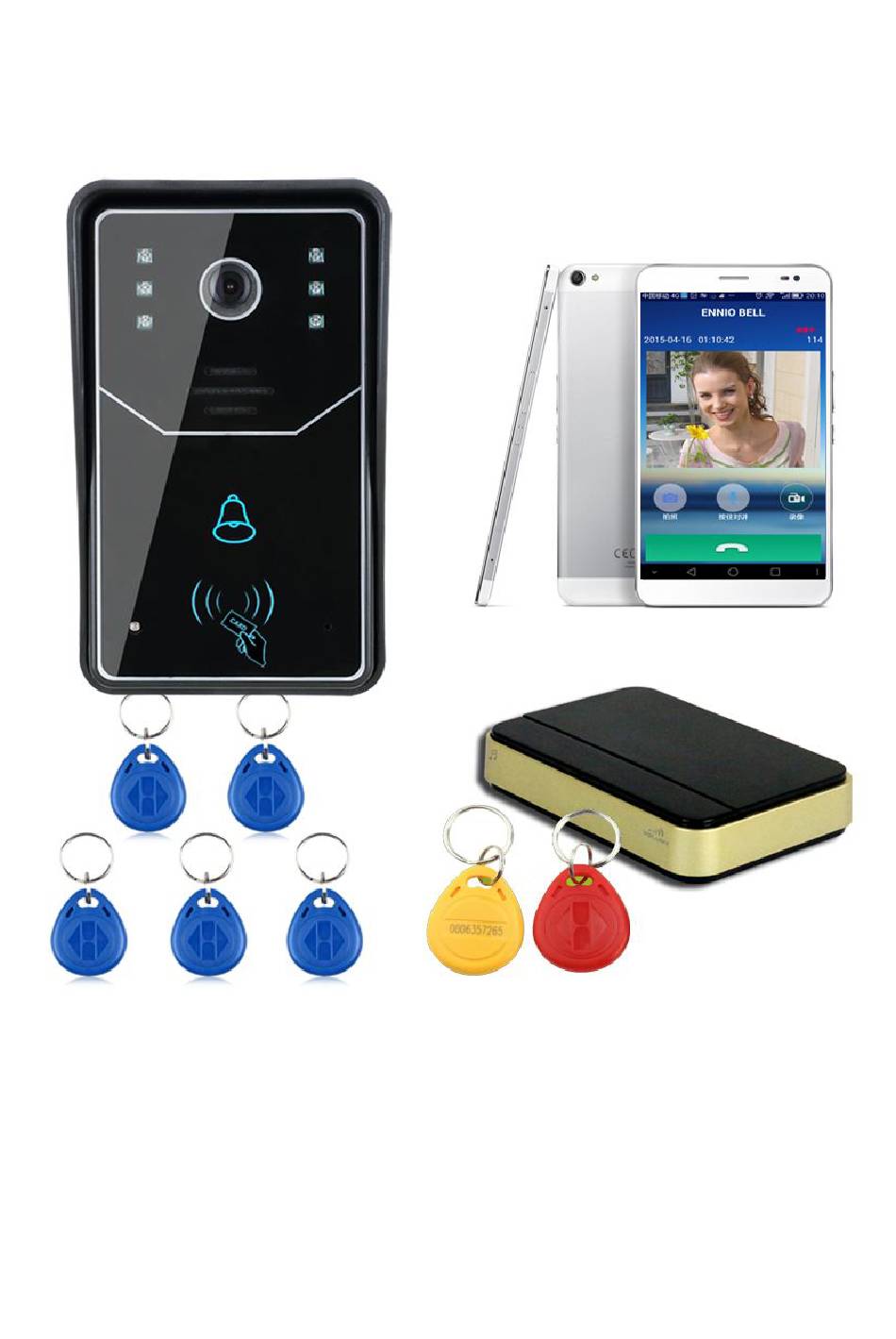

2. Product Description Outdoor Unit: Wireless Doorbell:... -
Page 5: Pairing Code
3. Wireless doorbell Pairing Code Press the volume UP/DOWN button,then press the outdoor calling button to pair code,can repeat if not succeed. 4. Installation: 1.Wireless doorbell recommended location: A. on the desk. B. Avoid to put on the ground-land or lots of metal place. 2.Outdoor unit recommended location: A. -
Page 6: E-Lock Wire Diagram
5. E-lock Wire Diagram: Often open/often atresia lock can connect to outdoor camera directly,don’t need extra power supply,time delay can be set in mobile device APP. 6. Specification: Model PST-WIFI001ID Lens 1/4 / F2.4 / 92 degree Pixel 0.3 million... -
Page 7: Id Card Operation
7. ID Card Operation Set the Admin Card: 1. Connect the PUSH + to PUSH- use a wire,about 5 seconds hear “DIDI” continuously, then enter the “set admin card” mode. 2. First,set the “add card” (the color is red),read this card,when hear “DI”,it succeed;second,set the “delete card” (the color is yellow),read this card,when hear “DI”,it is successful. -
Page 8: Hotspot Configuration
9. Hotspot Configuration Connect power supply to start the equipment (start time approx 35 seconds),then heard voice hint: “welcome to the smart phone”，wait for about 35 seconds (sometimes more than 35 seconds),then the calling led will flash quickly,now press the calling button approx 5 seconds,there an voice hints “ enter into the network configuration mode,please complete the network configuration within 5 minutes”... - Page 9 Select "Search" or "Scan Barcode" to get the ID number; click ID "GBELL-XXXXXX",it will automatically fill doorbell ID, non-password; click "Done" back to the main interface. Current doorbell status “ENNIO BELL” should be online,click “ENNIO BELL” to complete the hotspot connection to enter monitor &...
-
Page 10: Function Setting
10. Connect Router Note: If you are connected via network cable to router,please ignore this step,can enter directly into the APP interface. Click icon to enter into setting interface. Click "WIFI Settings" to select the target router,put password,the device will restart, a voice hints “device start successful,welcome”... - Page 11 2. Administrator setting ：click “add”,put user name and password (6 or more letter or digits)。 After set the new user and password,please input the product ID number (like 、 user、password on the new user’s mobile device,can add 8 users,among users can view each other status, such as user 1 connect, user 2 disconnect, user 3 disconnect etc.
- Page 12 3. New mobile device user setup steps: 1. Install APP 2. Click “add doorbell” 3. Enter the ID number,user and password .4 .click “ok”.5 New user can access the doorbell. When a visitor press call button or motion detect alarm,all users will receive a push message from doorbell,if any mobile device answers,others will hang up automatically,in “administrator setting”menu can check what a user is monitoring.
- Page 13 6. Time setting： Set time and time zone,Support synchronize with NTP server 12. Interface Button 1、Photo: Touch “photo”button to take photos,the pictures will store on the mobile device. 2、Press button talk: Touch the “press button talk ”button to talk 3、Video: Touch “video”button to take videos,the video file will store on the mobile device,press it again to stop. 4、End call.
- Page 14 2、Record: touch this icon to view the motion detect alarm and the history records of visitor 3、Picture:touch this icon to view the photos. 4、Video: touch this icon to view the video files...
-
Page 15: Intercom,Monitor,Unlock Setting
13. Intercom, Monitor, Unlock 1.All mobile device will receive the push message from doorbell when a visitor rings or motion detect alarm,answer the doorbell from left to right,or hang up from right to left. 2.Hold the “press button talk” button to talk,release the button to hear visitor’s voice. 3.Touch the “answer”... -
Page 16: Exit
14. Exit system Touch ,it will show bell rings、 alarm rings、 about software、 exit software、 running in background etc operation. 15. Delete User Touch ,can delete user.Touch again to back. -
Page 17: Accessories
16. Accessories 12V2A Power Supply 1 pc WIFI Outdoor camera 1 pc terminal wire 1 pc unlock wire 1 pc Screws 1 set Tools 1 set Admin Card 2 pcs (Red is add card,yellow is delete card) User Card 5 pcs 17. -
Page 18: Notice
19. Notices (1) The product should be placed where is stable , windy , air-dry, non-sunshine ,non strong magnetic and non-dusty； (2) Don't clean the surface with chemicals but with soft and clean dry cloth； (3) Don’t press several buttons at the same time； (4) The outdoor and indoor unit must be matched with appointed specified models and cannot match with others that are not our products.
