Maico SQUARE BARREL Service Manual

Engine section
Hide thumbs

Advertisement

Quick Links

Download this manual
Service Manual
www.maicowerk.com
MAICO
SQUARE BARREL
SQUARE BARREL

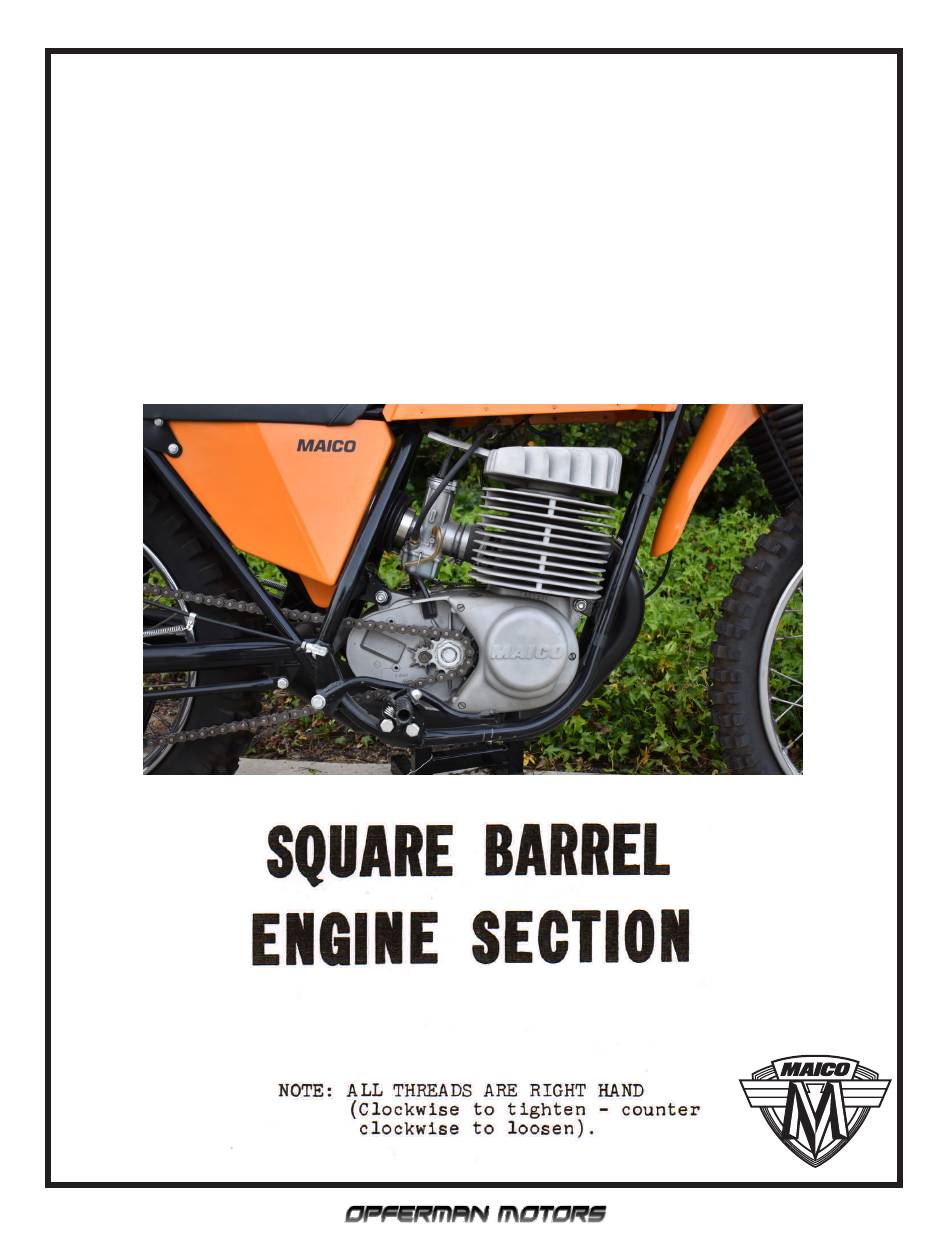

ENGINE SECTION
ENGINE SECTION
NOTE:
NOTE:
ALL THREADS ARE RIGHT
ALL THREADS ARE RIGHT
(Clockwise to tighten - counter
(Clockwise to tighten - counter
clockwise
clockwise
Square Barrel Engine Manual Service Manual
HAND
HAND
to loosen).
to loosen).
Courtesy of vintagemaico@gmail.com
