MODI T10 Series Manual

Multifunctional bluetooth helmet intercom
Hide thumbs

Advertisement

Table of Contents

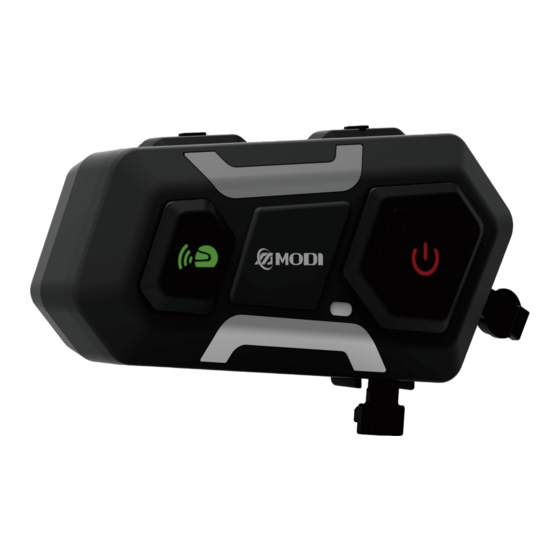

MODI-T10
Multifunctional Bluetooth Helmet Intercom
T10-3/T10-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T10 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MODI T10 Series

Summary of Contents for MODI T10 Series

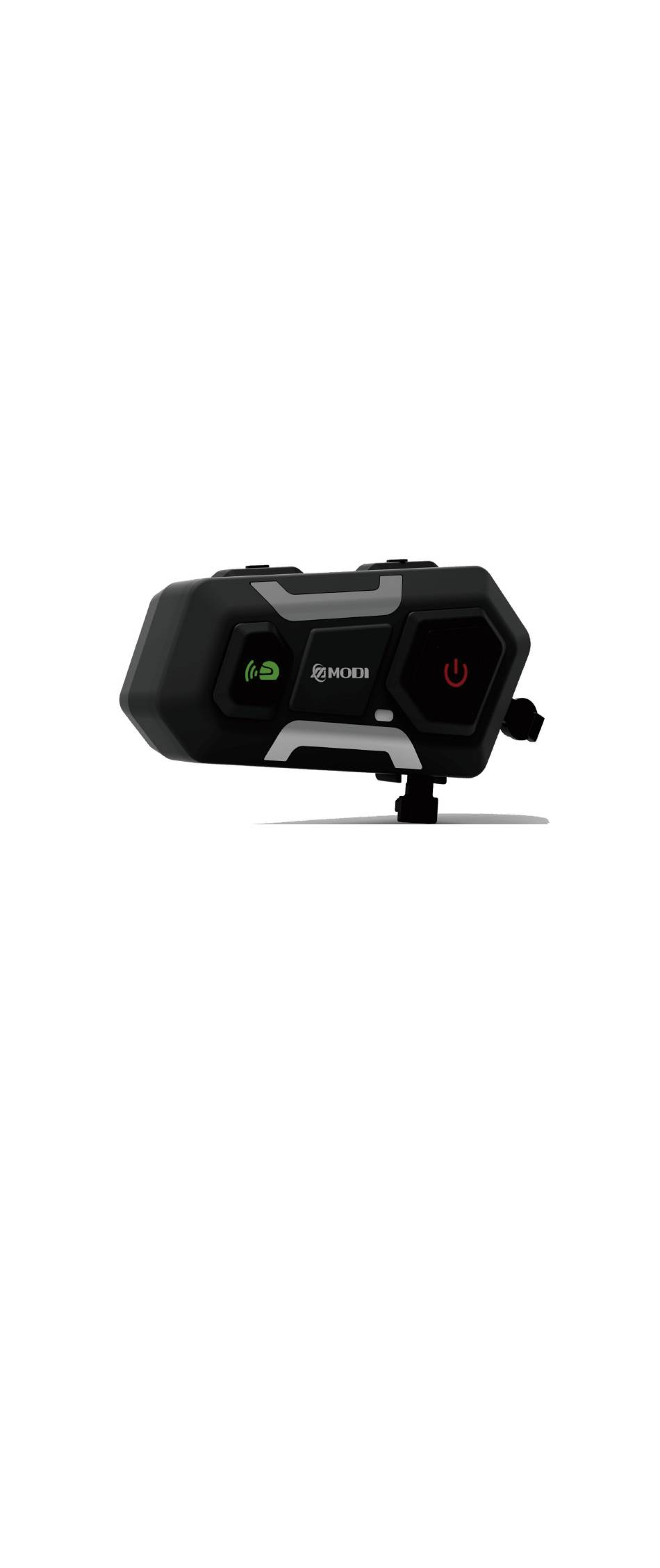

  • Page 1 MODI-T10 Multifunctional Bluetooth Helmet Intercom T10-3/T10-4...

  • Page 2: Table Of Contents

    Table of Contents Packet Contents -------------------Page 1 Introduction ------------------------- Page 2 Install Instructions ----------------- Page 3 Led State ----------------------------- Page 6 Pair to Cell Phone ------------------ Page 8 Pair to Common BT Headset----- Page 10 Internal Intercom -------------------Page 11 FM Operation ----------------------- Page 17 Technical Specifications ----------- Page 18 Certification ------------------------- Page 19...

  • Page 3: Packet Contents

    Packet Contents T10 Main Unit: HIFI Speaker and Microphone USB Cable Clip Mounting Bracket User Manual...

  • Page 4: Introduction

    T10_3/T10_4 Introduction Power on / Power off Button 1: Power on/Power off 2: Pair mobile phone 3: Power prompt 4: Hang up Bluetooth intercom 5: Music play / pause 6: Call answering / Third party call answer /End / Reject Bluetooth Intercom Button 1: Pair Bluetooth intercom 2: Open / exit Bluetooth intercom...

  • Page 5: Install Instructions

    3: FM turn down 4: FM Turn on / Turn off 5:Voice dialing Fixed installation method 1:Locate the helmet at the left and clean it up 2:Peel off the 3M rubber protective film 3:Apply pressure to the metal carrier to secure the holder firmly Note: it takes 24 hours after drying.
  • Page 7 Install host 1:Slide T10 host off the top of the clip and you'll hear a click when it is completely plugged in 2:Plug in the 3.5mm headset plug Headset mounting method 1:Stick the left and right horns of the headphones in the position of the left and right ears of the helmet 2: Keep the microphone in front of the mouth，...

  • Page 8: Led State

    Led State Blue light slow flash once： Bluetooth connection is not connected Red and blue light flash slowly alternately: Bluetooth in paired mode Blue light flash quickly： Bluetooth in searching situation and pairing mode Red and blue light flash quickly twice simultaneously：...
  • Page 9 Charging 1. You can charge with the Micro USB cable in the package. During charging, red light is flash, After full charging, the light will turn blue. and it is recommended to recharge the battery before each use. Suggest full charge before each use. 2.

  • Page 10: Pair To Cell Phone

    Pairing with cell phone and using Mobile pairing steps 1. When power off，press K_POWER approx 8S, red and blue light flash alternately， headset prompt “pairing”. Open the phone Bluetooth, search for ‘T10-3’or ‘T10-4’, then click on the phone connection pair. After the pairing, the phone light goes back to standby mode, and the blue light flashes 2 times.
  • Page 11 within 12s。 Voice dial: When phone standby, double press K_DOWN to make voice dialing (The phone itself must have voice dialing function) Last number redials: When cell phone standby, double press K_UP to make last number redialing. When dialing a number, short press K_POWER to cancel the last number redialing.

  • Page 12: Pair To Common Bt Headset

    back to the conversation with fist cell phone. Play /Pause Music: Short press K_POWER control play/pause the music. Music next/previous: During music playing, double press to choose next/previous songs. Voice volume control: Short press K_UP /K_DOWN to adjust the voice volume Pairing common Bluetooth device and using Pair to common Bluetooth device: Power on...

  • Page 13: Internal Intercom

    with Bluetooth headset which connected before. End talking with headset: short press K_POWER one times to end the talking between T10-3/T10-4 and headset. Bluetooth intercom pairing and usage T10_3 Three person intercom operation: T10_3(1) and T10_3(2) pairing: Two of T10_3 headset power on , long press T10_3(1) K_INTERCOM for approx.
  • Page 14 will flash quickly, after paring finish there will be a voice prompt "pairing success", blue light will slowly flash. T10_3(2) and T10_3(3) pairing: Two of T10_3 headset power on, long press T10_3(2) K_INTERCOM K_UP at the same time for 2S, blue and red light flash alternately means into Paired mode, long press T10_3(3) K_INTERCOM...
  • Page 15 Quit T10_3(1) and T10_3(2) intercom: During the intercom mode, short press K_INTERCOM or K_POWER once to end intercom, blue light flash slowly back to standby mode. Activate T10_3(2) and T10_3(3) intercom: after pairing successfully, press T10_3(2) or T10_3(3) double press K_INTERCOM to connect two intercom, red and blue light flash quickly twice.
  • Page 16 alternately. Then long press T10_4(2) K_INTERCOM K_UP for approx. 2s ,red and blue light flash alternately into Pair mode, then short press K_INTERCOM on either unit, the blue led will flash quickly, after paring finish there will be a voice prompt "pairing success", blue light will slowly flash.
  • Page 17 T10_4(3) and T10_4(4) pairing: Two of T10_4 headset power on , long press T10_4(3) K_INTERCOM K_UP approx. 2s, red and blue light light flash alternately. Then long press T10_4(4) K_INTERCOM K_UP for approx. 2s ,red and blue light flash alternately into Pair mode, then short press K_INTERCOM on either unit, the blue led will flash quickly, after paring finish there will be...
  • Page 18 K_INTERCOM to connect T10_4(2) and T10_4(3) intercom, red and blue light flash quickly twice. Connect T10_4(3) and T10_4(4): after pairing successfully, short press T10_4(1)/T10_4(2) K_INTERCOM to connect T10_4(1) and T10_4(2) intercom, red and blue light flash quickly twice. End intercom: During the connection mode, short press K_POWER once to end intercom, blue light flash slowly back to standby mode.

  • Page 19: Fm Operation

    FM radio usage Power on FM radio: When standby, long-press K_DOWN button for approx. 2s to turn on FM radio. Power off FM radio: During FM working, long-press K_DOWN button for approx. 3s to turn off FM radio. Choose a FM channel: During FM working, double press K_UP or K_DOWN to choose...

  • Page 20: Technical Specifications

    Technical specifications ： 1. Bluetooth 3.0 Support : HSP,HFP,A2DP,AVRCP, AGHSP 2. Working hours: 15 hours 3. Standby time: 350 hours 4. Charging time: 3 hours 5. Battery: lithium containing rechargeable lithium battery 800mAH, 3.7v 6. Dimensions: 85 mm *42 mm *23 mm 7.
  • Page 21 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
  • Page 22 operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information: FCC RF Exposure requirements: The highest SAR value reported under this standard during product certification for use next to the...
  • Page 24 MADE IN CHINA Web: www.winnerelec.com E-mail: sales@winnerelec.com...

This manual is also suitable for:

T10-3T10-4
