Firelite CELL-MOD Series Product Installation Document

Gsm communicator

1 Description

The CELL-MOD houses a GSM (cellular) communicator card for central station reporting. The CELL-MOD is a red plastic enclosure. The CELL-

MOD is compatible with the ES-50X Series, ES-200X Series, NFW-50X Series, NFW-100X Series, IFP-75, IFP-300/ECS, IFP-2100/ECS, 6820/

EVS, 6808, 6700, and GWF-7075 Fire Alarm Control Panels.

NOTE: Please contact your AlarmNet® distributor prior to programming this device to ensure the SIM card is activated.

If the module has been deactivated, follow these steps to reactivate:

1. Visit www.alarmnet360.com.

2. Login with a valid ID and password. If these credentials are not available, contact AlarmNet technical support.

3. Go to Tools > Cellular Activation.

4. Enter the 12-digit Activation ID (AID) found on the label on the GSM card.

5. Click "Activate".

WARNING: THIS SYSTEM CONTAINS STATIC SENSITIVE COMPONENTS

WEAR A PROPER GROUNDING WRIST STRAP AND WORK ON A STATIC-SAFE WORKSPACE TO PROTECT

ELECTRONIC ASSEMBLIES.

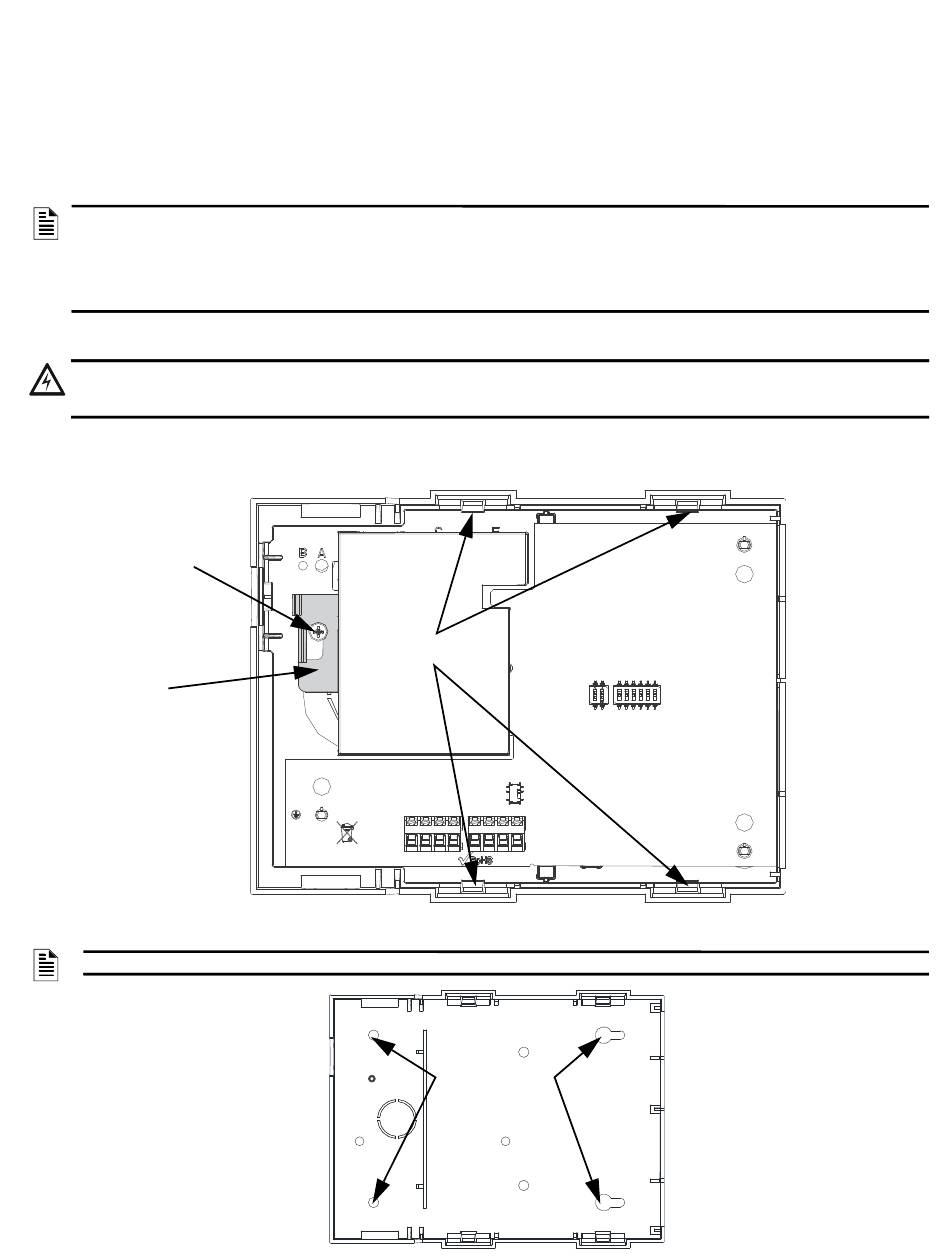

Remove the red plastic cover of the assembly.

Loosen, but not remove, the screw centered in the blue tab to remove the gray mounting plate. Place the PCB assembly in a safe location until

the backbox installation is complete.

loosen screw

blue tab

Mark and pre-drill holes in the wall for the right-side keyhole mounting. Install fasteners in the wall with the screw heads protruding. Place

backbox over the screws, level, and secure. Mark and drill the left-side mounting holes and secure.

NOTE: The CELL-MOD mounts in a "landscape" orientation. Ensure keyhole mounting is on the right.

Product Installation Document

PN LS10182-000GE-E:C 3/20/2018 18-114

remove mounting

plate

drill holes, level, and

secure backbox

CELL-MOD Series

Table of Contents

Do you have a question about the CELL-MOD Series and is the answer not in the manual?

Page 1 CELL-MOD Series Product Installation Document PN LS10182-000GE-E:C 3/20/2018 18-114 1 Description The CELL-MOD houses a GSM (cellular) communicator card for central station reporting. The CELL-MOD is a red plastic enclosure. The CELL- MOD is compatible with the ES-50X Series, ES-200X Series, NFW-50X Series, NFW-100X Series, IFP-75, IFP-300/ECS, IFP-2100/ECS, 6820/ EVS, 6808, 6700, and GWF-7075 Fire Alarm Control Panels.
Page 2: Specifications
Insert the gray mounting plate under the tabs on the right side of the backbox and gently push to secure under the four snap latches. Tighten the screw loosened in step 2. If the screw was completely removed, ensure that the screw passes through the hole in the blue tab. Reattach cover.
