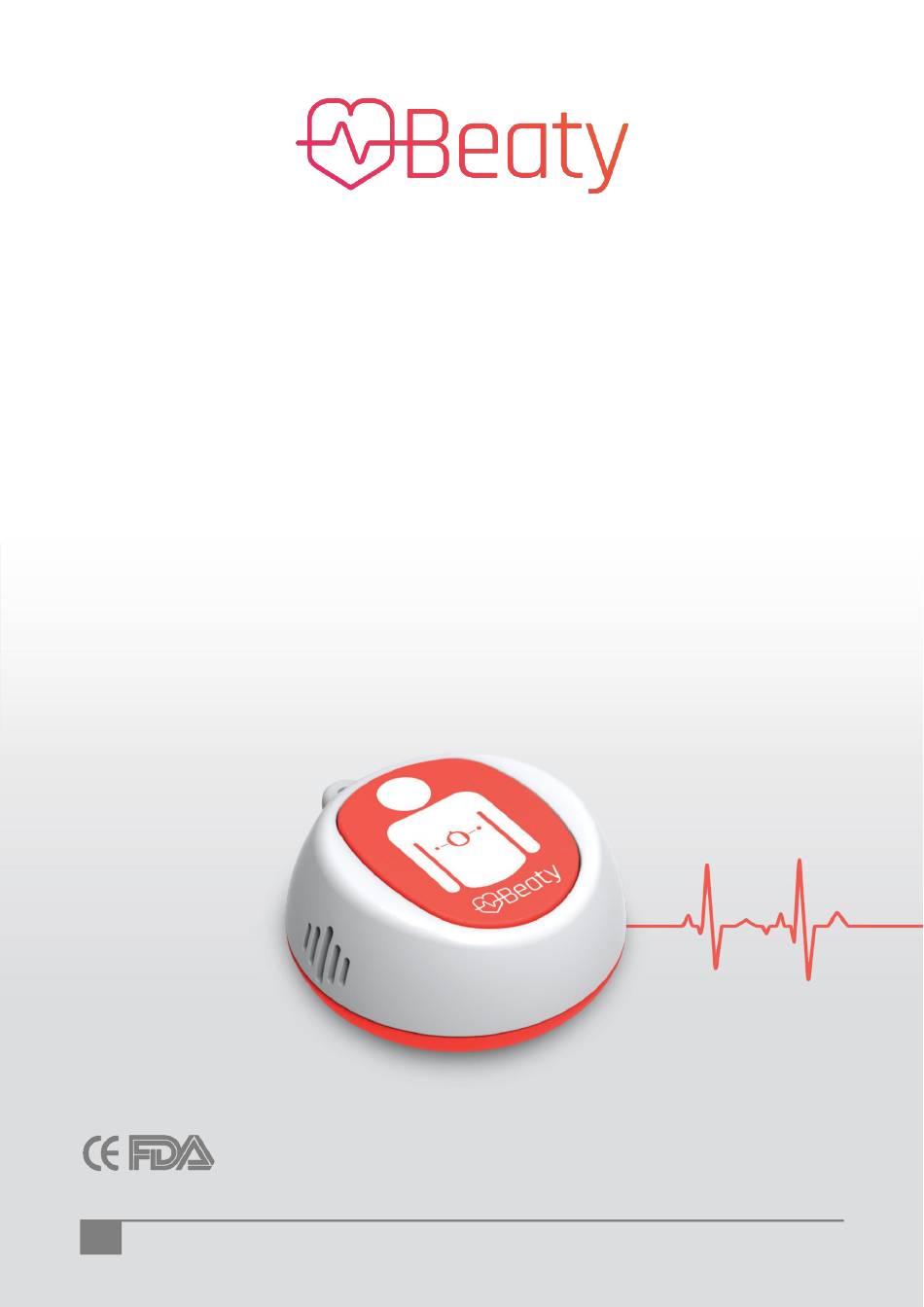

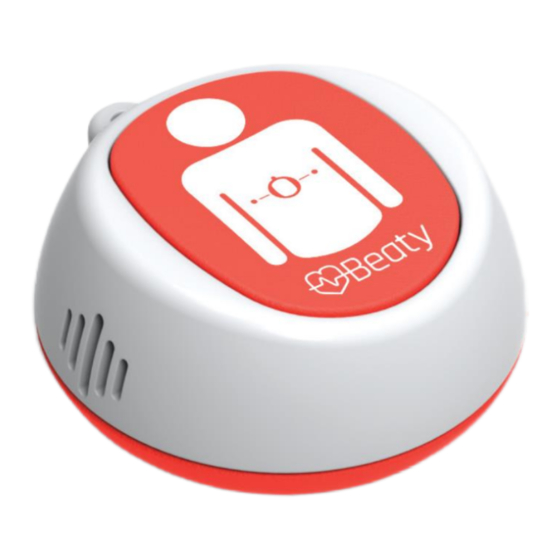

- Page 1 The power to save lives CPR Feedback Device User Manual Manufactured by Medical Feedback Technologies Ltd. Baruch Benaceraff 2, Rishon Lezion 7580537, Israel European representative- Medes Limited 5 Beaumont Gate, Shenley Hill, Radlett, Hertfordshire WD7 7AR, England, UK Tel. +44 208123 8056 Fax +44 1923859 810 www.imbeaty.com...
-
Page 2: Important User Information
Before using BEATY, users must read and fully understand all information and instructions provided with the device. In case of any questions please contact our team. It is strongly recommended that BEATY will be used by a person familiar with basic CPR principles. (visit our website www.imbeaty.com) Users must follow local guidelines for CPR when using BEATY. -
Page 3: Table Of Contents
1.4 Adverse effects…………………………………………………………………………………………..…………...….………6 1.5 BEATY description…………………………...............…………….…..…6 1.6 Symbols on the device…………………………………………………………………………………………….………9 1.7 Delivered items…………………………………………………………………………………..……..…….…….…………10 2. Using BEATY…………………………………………………………………………………...………..….………10 2.1 Approaching the Victim……………………………………………………………………………..………….….…10 2.2 CPR using BEATY…………………………………………………………….………………………………..….….……..10 3. After use care………………………………………………………..…………..……………………….…..……11 3.1 Cleaning………………………………………...………………………………………………………………………….……..……11 3.2 Changing Battery……………………………………………….…………………………………………………..….…..12 3.3 Routine checks……………………………...…………………………………………………………..…………..………12 3.4 Storage……………………………………….………………………………………………………..……..…………………...….13 4. Warnings and precautions……………………………………………………………..….………….13 5. -
Page 4: Introduction
BEATY is a feedback device that provides audible feedback regarding the effectiveness of chest compressions during CPR. With every chest compression, BEATY will tell its user whether the performance is effective or not. The real-time given feedback will increase sense of capability among users and the effectiveness of chest compressions. -
Page 5: Intended Use
1.3 Contraindications BEATY is not to be used in the following cases: - Children- BEATY is to be used only on victims 8 years old and above - If there is no indication for chest compressions or chest compressions are unlikely to help the victim www.imbeaty.com... -
Page 6: Adverse Effects
NOTE! BEATY is not the resuscitator. It is only there to give an audio feedback during real time CPR that is performed according to guidelines. - Page 7 CPR is required (rural areas, medical teams etc.). NOTE! The silicone adapter is not mandatory for the proper utilization of BEATY and does not increase its effectiveness. The adapter can be used at user’s choice and preference. www.imbeaty.com...
- Page 8 1. Hold the silicon adapter with hollow part facing up. 2. Align BEATY according to the silicon adapter using buzzer output and keychain holes as reference points (See arrows in fig. 1 next page). NOTE that BEATY’s bottom part (silicon cushion with embedded symbols) should also face upwards.
-
Page 9: Symbols On The Device
Bottom part Upper part Figure 2 Figure 1 Figure 3 1.6 Symbols on the device CE Compliant Restriction of Waste Electrical Refer to User Handle with care Hazardous and Electronic Instruction Substances Directive Equipment Guide Compliant (materials Directive and components) Compliant IP22 Ingress property- Degree of... -
Page 10: Delivered Items
2.2 If CPR is indicated Start chest compressions according to CPR guidelines • Place BEATY in the middle of the victim's chest as shown in the sketch on top of the device. It is recommended not to use the device above clothes. -
Page 11: After Use Care
Perpendicular alignment to the victim o Locked elbows o Chest compressions rate should be 120/min. o Full chest recoil- after BEATY produces a sound, it is crucial to allow full chest recoil before next compression *If AED (Automatic External Defibrillator) is within reach use it according to instructions. -
Page 12: Changing Battery
3.2 Change of battery When changing battery, only UL approved batteries are allowed (list of UL approved batteries is described below) 1. Remove upper soft pad 2. Unscrew upper screw 3. Open the device using rotation movement 4. Change battery List of possible UL approved 3v lithium coin cell batteries* GP CR2032 Energizer CR2032... -
Page 13: Storage
(provided within this user manual). WARNING - INCORRECT POSITION OVER CHEST If Beaty is not in the correct position in relation to the sternum, there is a possibility that it does not function properly. Place the device in the middle of victim’s chest as shown on the sketch on top of the device. - Page 14 CPR without the device. WARNING- EXTERNAL DAMAGE If external damage is seen, do not use Beaty as it can result in user and victim injury as well as malfunction of the device. WARNING- DO NOT OPEN THE DEVICE IF UNESSECERY Open the device only for battery replacement.
-
Page 15: Troubleshooting
5. Troubleshooting Users must be familiar with the possible technical problems and their solution. For any questions please contact our team. Arising Possible Solution Prevention problem cause No sound is -Not enough Make sure 1. Check heard before pressure audio inlet is routinely for use/ sound is applied... - Page 16 3) device pressure Change battery as instructed in page 12; section Contact our customer service If no solution found – remove BEATY and start compressing without the device Continuous Improper 1. With each sound during chest recoil sound produced by the device.
- Page 17 Discomfort in Improper 1. Change palms user’s palm location of position over palm over the the device. device BEATY has an upper concave soft pad that should fit the base of your palms. NOTE! Do not change position of the device regarding victim’s chest...
-
Page 18: Technical Specifications
Technical specifications Item Specification Technical Data Power Rated input voltage 3V lithium coin battery Requirements Dimensions Width*length*height(cm) 5*5*2.4(cm) Weight Total device weight (battery included) Operating Ambient temperatures Between 32° and 102.2° environment F (0° and 39° C) and in normal conditions Relative Humidity 10% to 90% RH Atmospheric Pressure... -
Page 19: Faq
CPR can triple chances of survival. Q: When should I use Beaty? A: Beaty should be used in every case where CPR is indicated. As gauging the exact compression depth is almost impossible, Beaty will help you by providing real- time audible feedback when applying adequate force during chest compressions. - Page 20 CPR. The major gap nowadays is in estimating compression depth (rate can be estimated by using other means) and many studies show suboptimal compression depth, even among professionals. Beaty provides an effective, simple and affordable solution and was confirmed in experiments for effectiveness and www.imbeaty.com...
- Page 21 Q: Can Beaty be used on children? A: Beaty is designed to be used on victims 8 years old and above. Q: What if during CPR, ribs are fractured? A: It is important to understand that deeper compressions increase survival rate.
- Page 22 Q: Can Beaty be used for training? A: Beaty Is designed for real-time CPR on a real person. As some manikins differ from human skeletal structure as well as chest recoil, Beaty may not work properly on these manikins. A ‘Demonstration Only’ sample, calibrated to a desired manikin can be provided.
