Summary of Contents for Omicron Lab B-AMP 12
-

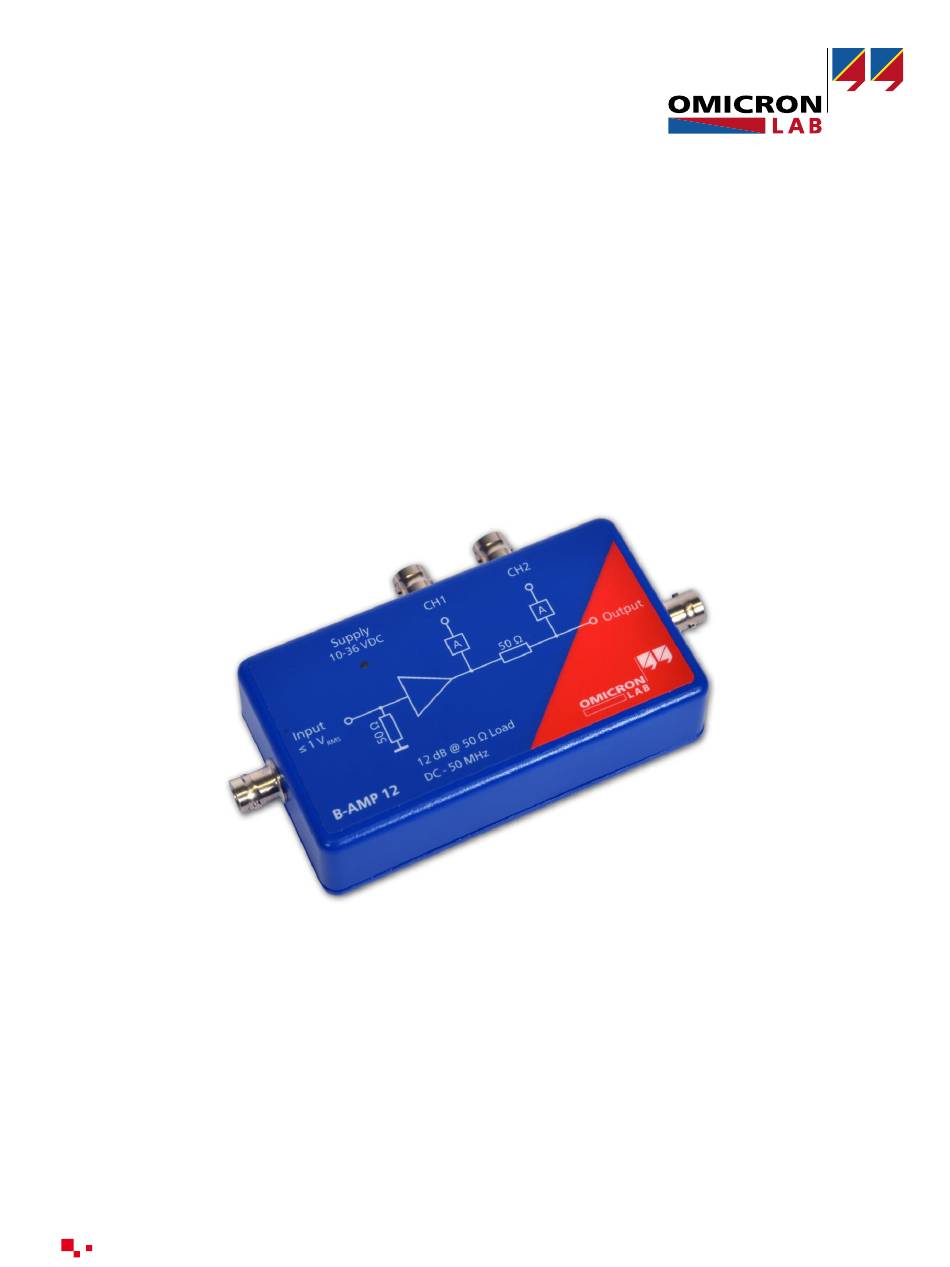

Page 1: User Manual
B-AMP 12 Power amplifier for Bode 100 User Manual Distributed by: dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de... - Page 2 The product information, specifications, and technical data embodied in this manual represent the technical status at the time of writing and are subject to change without prior notice. Windows is a registered trademark of Microsoft Corporation. OMICRON Lab and Smart Measurement Solutions are registered trademarks of OMICRON electronics.
- Page 3 Compliance statements and recycling Declaration of conformity (EU) The B-AMP 12 adhere to the guidelines of the council of the European Community for meeting the requirements of the member states regarding the low voltage directive (LVD), the electromagnetic compatibility (EMC) directive and the RoHS directive.
-
Page 4: Designated Use
Opening the B-AMP 12 invalidates all warranty claims. Designated use B-AMP 12 has been designed to amplify voltages smaller or equal to 1 Vrms in the frequency range from DC – 50 MHz. B-AMP 12 has been especially designed for the use in laboratory and manufacturing environments. -
Page 5: Safety Instructions
► Do not apply hazardous voltage levels >50 VDC or >25 VAC to any input or output of B-AMP 12. ► Be aware that no indication on the B-AMP 12 shows that the output is active. This could be especially critical if additional amplifiers are connected to the B-AMP 12. -
Page 6: Device Overview
Channel 2 output-connector Power supply connector Channel 1 output-connector BNC plug to measure the BNC plug to measure the Supply the B-AMP 12 with output voltage (attenuated) internal voltage (attenuated) 10 V DC to 36 V DC Figure 3-1: B-AMP 12 connector description... -
Page 7: Application Information
Application Information Application Information The B-AMP 12 can be used to amplify a signal ≤ 13 dBm (or 1 Vrms at 50 Ω) in the frequency range from DC to 50 MHz. The amplification factor of B-AMP 12 is 12 dB (or factor 4). Output impedance and input impedance of B-AMP 12 are 50 Ω. -
Page 8: Technical Data
B-AMP 12 User Manual Technical data Table 5-1 Specifications General characteristic Rating DC – 50 MHz Frequency range Gain (1 Hz – 50 MHz) 12 dB ±0.25 dB into 50 Ω Signal connector type Input Characteristic Rating ≤ 1 V Maximum input signal (≙... - Page 9 Relative humidity Table 5-4 Mechanical data Characteristic Rating Dimensions (with connectors) 138 mm x 75 mm x 32 mm 5.43 inch x 2.95 inch x 1.26 inch Weight 0.21 kg / 0.46 lbs Figure 5-1 B-AMP 12 frequency response OMICRON Lab...
-
Page 10: Technical Support
+1 713 830-4660 or +1 800-OMICRON Asia-Pacific: +852 3767 5500 Europe / Middle East / Africa: +43 59495 4444 Additionally, you can find the OMICRON Lab Service Center or Sales Partner closest to you at → Contact. www.omicron-lab.com OMICRON Lab OMICRON electronics GmbH, Oberes Ried 1, 6833 Klaus, Austria. - Page 11 Version 1.0 info@omicron-lab.com www.omicron-lab.com © OMICRON Lab, 2017 B-AMP 12 User Manual English All rights reserved. ENU11880501 Distributed by: dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
