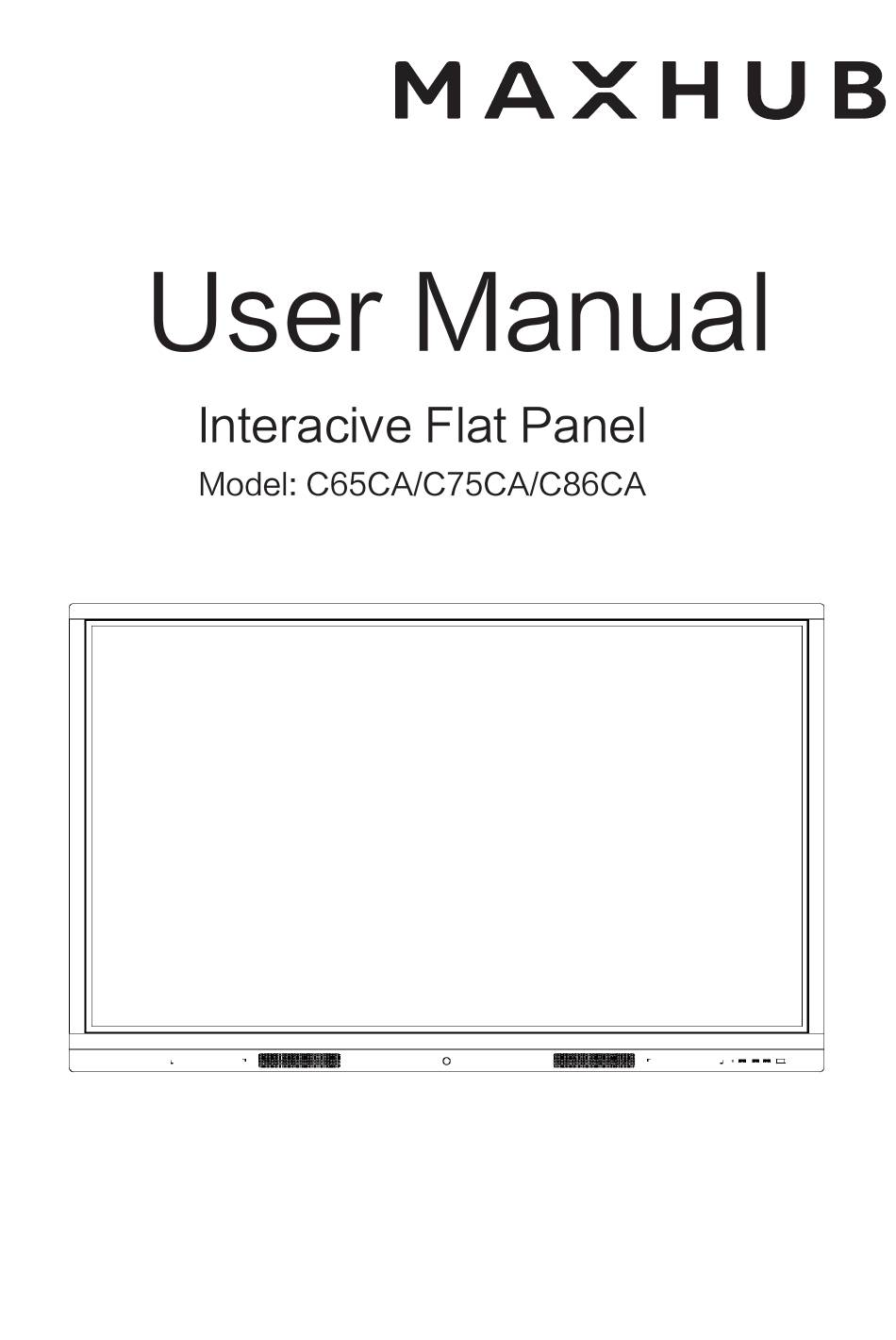

Summary of Contents for MAXHUB C75CA
-
Page 3: Safety Warning
Safety Warning Placement Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. Do not expose the unit to direct sunlight and other sources of heat. Do not put any liquid near or on the unit, make sure do not spill any liquid inside the unit. Do not put heavy objects on top of the unit. - Page 4 Safety Warning Standby It will enter standby mode but not turn off the unit after press the standby key. Battery Please make sure the battery get proper disposal or recycle after using. Please keep the battery away from kids and don't throw the battery into fire. Notes for Cleaning There are vents on back cover, please do not use any liquid or spray directly during cleaning.
- Page 5 Control Panel & Terminal 1.Control Panel Function Tap to enter EnergySaving function. Press at least 2 seconds to enter standby mode. USB Interface Receiving remote control signal...
- Page 6 Control Panel & Terminal 2.Terminal HDMI OUT USB2.0 USB2.0 HDMI IN-1 HDMI IN-2 HDMI IN-3(2.0) TOUCH AUDIO IN - 1 - VGA IN VGA IN - 2 - AUDIO IN YPbPr AV IN COAX OUT RS232 EARPHONE Terminal Function High-definition multimedia interface signal output HDMI OUT Connect USB devices such as mobile hard disk, U disk, USB drives, USB keyboard and mouse, etc...
-
Page 7: Connection & Setting
Connection & Setting For the safety of you and the machine, please do not connect any power plug before connection. 1.External Computer and Touch Connection (1) Use VGA cable to connect to VGA output port of external computer, and meanwhile use headphone audio cable to connect to external computer audio output interface (2) Use USB cable to connect to external computer USB port (3) After cable connection, plug in power cord,and switch power on... - Page 8 Connection & Setting 2.Audio and Video Equipment Video Game Camera Set-top Video Recorder Satelliter TV Receiver AV Cable (1) Use AV audio and video cables to connect audio and video equipments with AV output (yellow for video, red for right sound channel, and white for left sound channel) (2) After cable connection, plug in power cord, and switch power on (3) Press to turn equipment on...
- Page 9 Connection & Setting 3.Coaxial Connection (1) Use coaxial cable to connect audio equipments with coaxial input (2) After cable connection, plug in power cord, and switch power on (3) Press to turn equipment on 4.USB Connection 5.LAN Connection USB Cable LAN Cable USB2.0...
- Page 10 Connection & Setting RS232 Serial Port Cable After using serial port cable to connect central control computer and equipment, certain function of the equipment can be controlled via central control computer, such as: turn on/off the equipment, and adjustment of sound volume, etc.
-
Page 11: Menu Operation
Menu Operation Use touchpen to drag from the left or right of the screen to the middle, can call up the following quik setting menu. In the quick setting, use touchpen can adjust brightness and voice. Klick “Settings” with touchpen to enter Android Setting Menu. Android Setting In “Device name”, you can freely change the device name. - Page 12 Menu Operation In “Wireless hotspot”, you can turn on/off wireless hotspot, adjust the frequency band and security, and set the wireless hotspot password. In “Centralized Contol”, you can open the configuration control address. After finish configuration, you can remotely check the IFP’s status and turn it on/off. In “Apps”, you can look over the downloaded applications, running programs, and all applications.
- Page 13 Menu Operation In “Language & Input”, you can select the system language. Click the language, you can choose the Chinese/English language, and also can select the keyboard & input method. In “Date & time”, turn on the "Automatic date & time", the system time will be automatically synchronized with the time zone you select in the time zone setting.
- Page 14 1. Why does fog often appear on the screen? To ensure the safety of the screen, a layer of tempered glass is added to the external of the screen. Moreover, to ensure heat radiation, there needs to be some gap between the two to reserve an air passage for ease of the convection of the air.
-
Page 15: Simple Troubleshooting
Simple Troubleshooting Abnormality of Booting I. Automatic power off 1. Is the sleep function enabled? Troubleshoot according to the general checking items of the computer. 2. Check whether there is a signal on the channel where the input source is in. If there is no signal, the meeting machine will automatically enable the energy saving mode to power off. -
Page 16: Maintenance
Maintenance Proper maintenance can avoid some simple faults. Regular careful cleaning can maintain a good appearance and running state. Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean Screen Please mix and stir even a little fabric softener or tableware detergent with warm water. Please use a soft cloth to be completely soaked in the mixture. -
Page 17: Fcc Statement
Hereby, Guangzhou Shirui Electronics Co., Ltd. declares that the radio equipment type C65CA/C75CA/C86CA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.seewo.com. -
Page 18: Fcc Radiation Exposure Statement
Statement FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
