Quick
Start
Guide

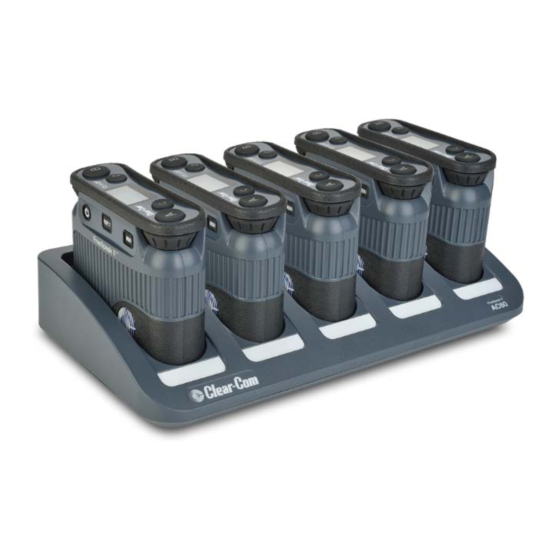

A FreeSpeak II (FS II) battery charger (AC60) allows you to charge up to five FS II beltpacks
simultaneously. You can use it either as a drop-in charger for the whole beltpack, or you can
charge separate beltpack Li-Ion batteries (BAT60) in the charging slots provided. You can use
the charger either as a desktop unit, or you can mount it to a wall using an optional wall
bracket.
Installing the battery charger
1)
Either mount the charger to a wall using
the optional wall bracket or leave on a
desktop.
2)
Connect the power supply to the power
connector.
Power connector
Mounting bracket
Support for optional
mounting bracket
Charging the beltpack
The beltpack can use a rechargeable Li-Ion
battery or AA batteries. The charger can charge
up to five Li-Ion batteries simultaneously.
Page 1
399G108 Rev C 08/07/15
FreeSpeak II™ battery charger
Mounting bracket
Optional wall-mounting bracket
Advertisement
Table of Contents
Related Manuals for Clear-Com AC60
Summary of Contents for Clear-Com AC60
- Page 1 Start Guide A FreeSpeak II (FS II) battery charger (AC60) allows you to charge up to five FS II beltpacks simultaneously. You can use it either as a drop-in charger for the whole beltpack, or you can charge separate beltpack Li-Ion batteries (BAT60) in the charging slots provided. You can use the charger either as a desktop unit, or you can mount it to a wall using an optional wall bracket.
- Page 2 Quick Start Guide | FreeSpeak II™ battery charger (AC60) Note: You can also recharge batteries by using the supplied USB charger. However, this will not charge AA cells. Insert either the beltpack containing the battery, or the battery itself into one of the recharging bays on the battery charger.
