Summary of Contents for IQ Sound IQ-8210DJDRM

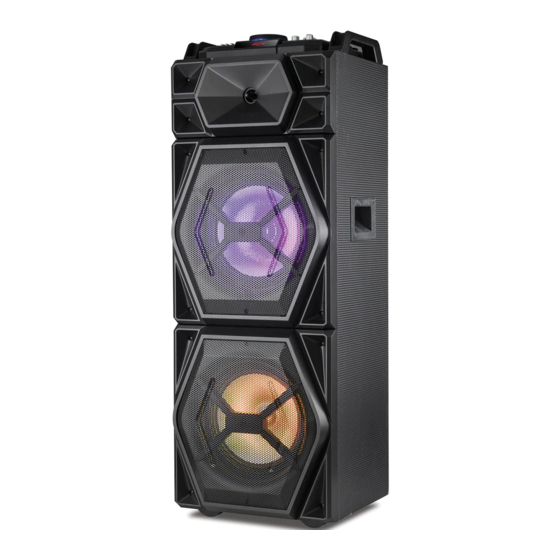

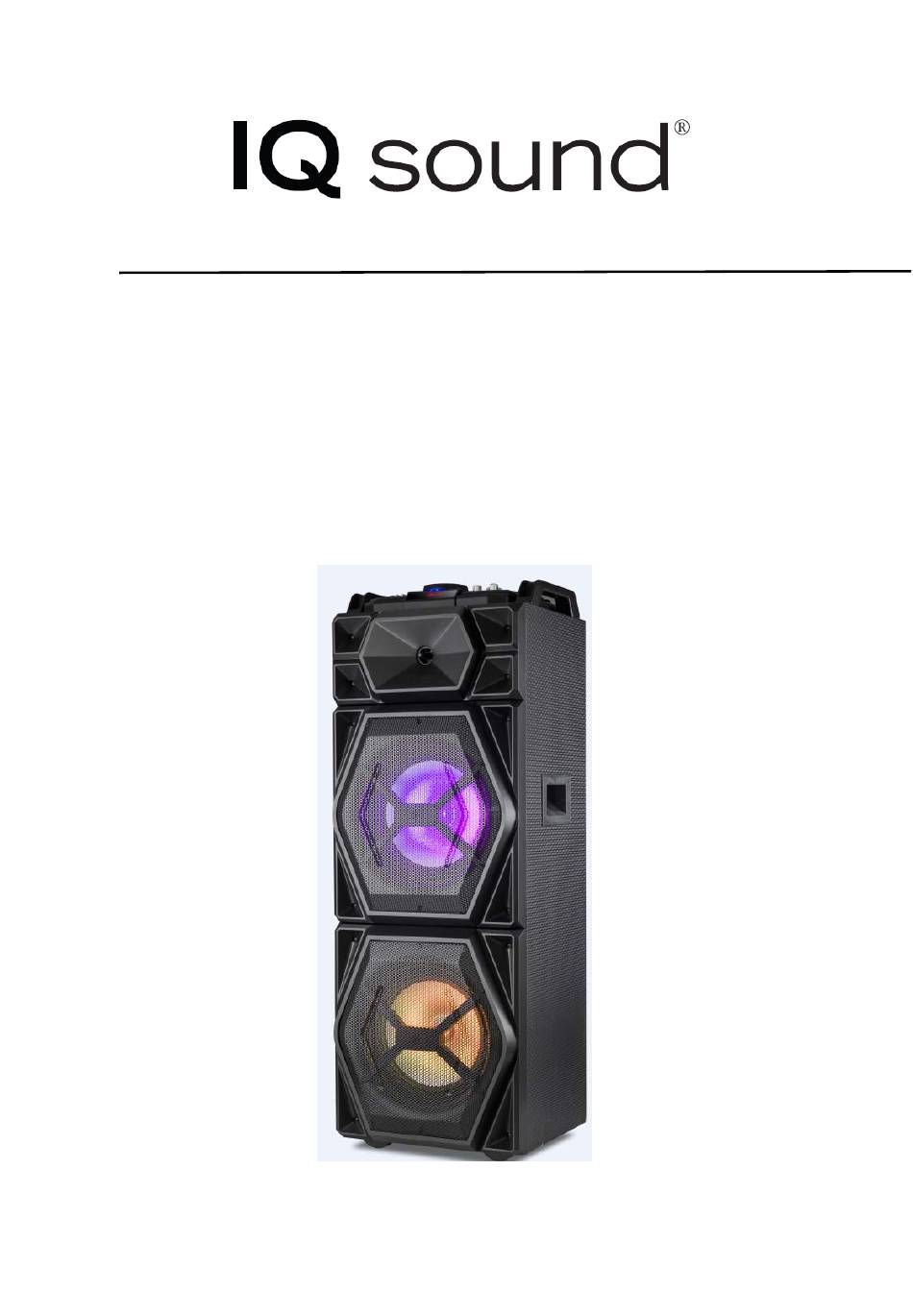

- Page 1 High performance speaker with Drum Kit and stick MODEL: IQ-8210DJDRM USER MANUAL...
- Page 2 COMPLIANCE WITH FCC REGULATIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: （1）this device may not cause harmful interference, and （ 2 ） this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 WARNING: TO AVOID THE DANGER OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NEVER OPEN THE CABINET, AS DANGEROUS HIGH VOLTAGES ARE CONTAINED INSIDE. ONLY A QUALIFIED SERVICE TECHNICIAN SHOULD ATTEMPT TO OPEN THE CABINET. CAUTION: This equipment generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
- Page 5 BLUETOOTH: Use the MODE button on the unit to change the mode to Bluetooth mode. Access your devices Bluetooth settings and pair your device to the unit. The Bluetooth pair name is "IQ-8210DJDRM"(Bluetooth distance:around 10 meters). When the correct mode has been selected, you can then use the backward), (play/pause) and forward )controls on the unit to play music.
- Page 6 A.Microphone on B.Microphone standby C.Microphone off Wireless microphone frequency is :261.80MHz Wireless Microphone distance:around 8 meters GUITAR EFFECT: Use the GUITAR VOL control on the unit to increase/decrease the...
- Page 7 guitar volume when using the guitar input. EQUALIZER EFFECT: use the equalizer to adjust or increase/decrease the bass and treble effect during music playing. Drum kit for the sticks:...
- Page 8 Front control panel silk screen for Drum Panel Microphoneinput 16. Play / Pausekey Guitarinput 17. Modefunction LEDOn/Off key 18. Next track / Next radiopreset DecreaseDrumvolume 19. Guitar volume Drum pad(RideCymbal) 20. Previous track / Previous radiopreset Drum pad(High Tom) 21. Microphone Echoeffect Drum pad(Hi Hat) 22.
- Page 9 13. SD cardslot 28. Rhythmeffects 14. 2.0USBport 29. Drum Styleeffects 15. Auxinput 30.GRAAPHIC EQUALIZER...
- Page 10 Remote ControlFunctions 1. Stop key 2. Play / Pause – FMScan 3. Modefunction 4. Numericalkeys 5. Volume increase 6. Volumedecrease 7. Previous track – Previous FMpreset 8. Next track – Next FM preset 9. Repeatfunction 10. Mutefunction 11. EQ presets **This picture is for reference purposes only. ...
- Page 11 Back panel silk screen 1.POWER SWITCH 2.DC IN JACK 3.AUX OUT 11 ...
- Page 12 5. If you are pairing (linking) your computer to the speaker using Bluetooth, you may need to set the IQ‐8210DJDRM as your computer’s default sound device. 6. After successfully pairing the IQ-8210DJDRM with your Bluetooth device. (You will hear the sound “The Bluetooth is connected successfully”).
- Page 13 Accessories included: 1x wireless microphone(with one pair AAA size battery), 1x DC Adaptor,1xUser Manual,1 pair of sticks,1x Aux cable,1xRemote control (with button cell). Specifications and functions are subject to change without notice. It is connected with continual improvement of the device. TROUBLE SHOOTING If you experience difficulties in the use of this music system, please check the following or call for Customer Service.
- Page 14 SPECIFICATION Power requirement: AC-DC adaptor: Input AC ~ 120V ~ 60Hz Output DC 15V 2.4A Power Output for the unit: 50W (RMS) Woofer Speaker information: 10inch,4Ω，30W Main Unit: DC input: DC 15V 2.4A Battery for wireless microphone（included）: 2x AAA Frequency Range Radio Band: FM 87.5 ~ 108 MHz Wireless microphone frequency is :261.80MHz...
- Page 15 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, ...
