Summary of Contents for ERNITEC TAURUS DX 2 SERIES

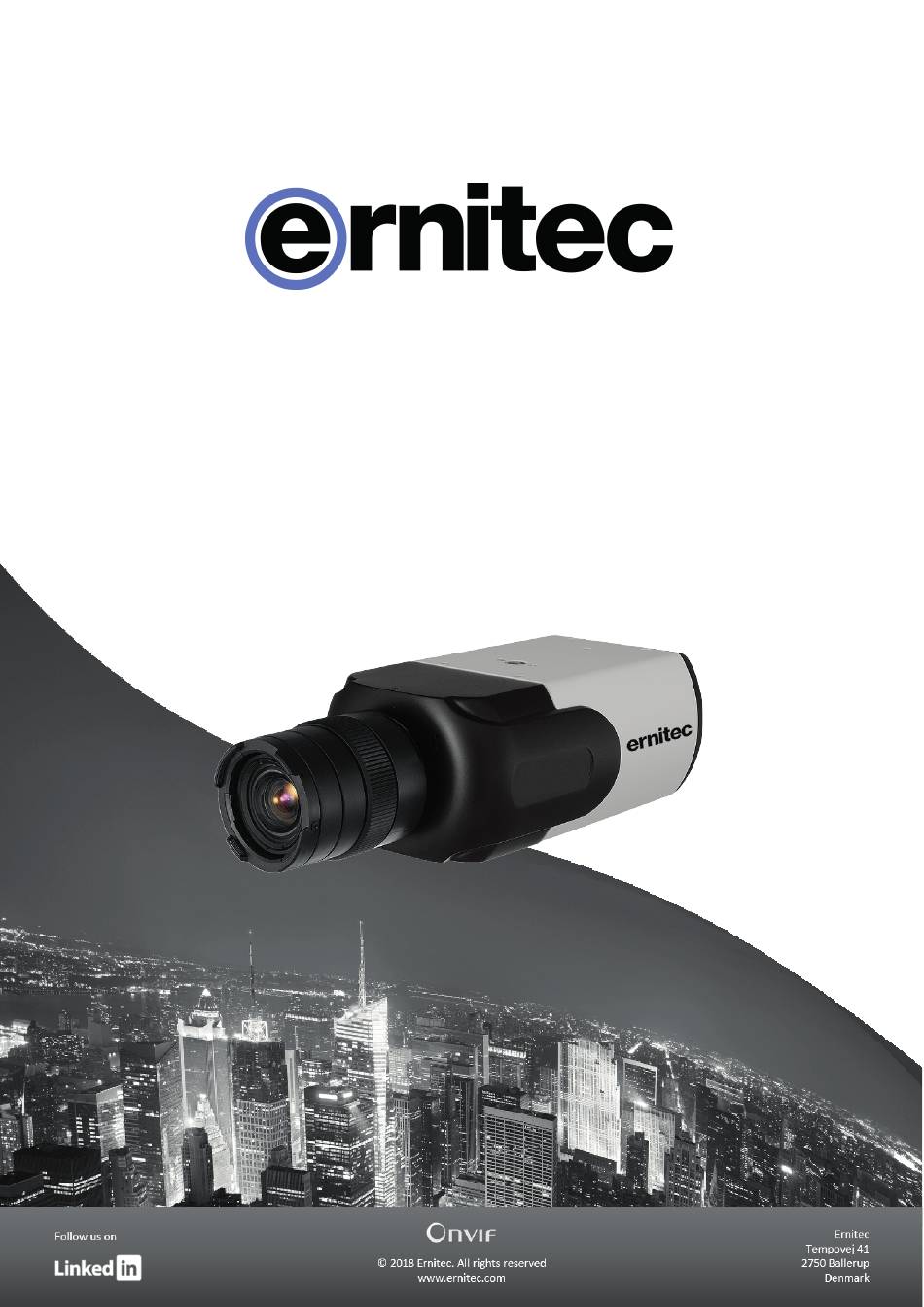

- Page 1 TAURUS DX 2 SERIES Low Light Box Camera User’s Manual Ver. 2.0...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ......................3 Dimensions ........................4 Connectors ........................5 1.4.1 Light Sensor (ABF Models Only) ..............6 Camera Cabling ........................6 Power Connection ......................6 Ethernet Cable Connection ................... 6 Lens Mounting ....................... -
Page 3: Overview
Overview Full HD Multi-Streams Ultra-WDR Box IP Camera features multiple streams, and supports up to 1080p @ 60 fps. Ultra Dynamic Range offers excellent images from combined two/four shutter speeds exposed pictures under extreme high contrast environments. Besides excellent wide dynamic range performance, with latest CMOS sensor, the camera is also capable of handling the surveillance in nearly total darkness environments. -
Page 4: Package Contents
Package Contents Please check the package containing the following items listed below. Full HD Multi-Streams Ultra-WDR Box IP Camera Back Focus Adjuster* Quick Guide *For Non-ABF models. NOTE: To purchase power adaptor, please contact the camera manufacturer for further information. -
Page 5: Dimensions
Dimensions The IP camera’s dimensions are shown below. Non-ABF Models ABF Models... -
Page 6: Connectors
Connectors The diagram below shows the various connectors of the camera. Definition for each connector is given as follows. DC 12V / PoE DC 12V / AC 24V / PoE Item Definition Remarks Audio I/O Two-way audio transmission (Line In/Out) Power LED For power connection indication (green light) Press the button with a proper tool for at least 20... -
Page 7: Light Sensor (Abf Models Only)
1.4.1 Light Sensor (ABF Models Only) For ABF models, a light sensor is located at the front of the cameras. The location and definition of the light sensor is as below. Item Definition Light Sensor Ambient light detection for day/night switching function. Camera Cabling Please follow the instructions below to complete IP camera installation. -
Page 8: Lens Mounting
Check the status of the link indicator and the activity indicator LEDs. If the LEDs are unlit, please check the LAN connection. Green Link Light indicates good network connection. Orange Activity Light flashes for network activity indication. Lens Mounting Follow the steps below to mount the C/CS Mount Lens to the camera. Step 1: Remove the plastic cover of the camera. -
Page 9: System Requirements
System Requirements To perform the IP camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below. Items System Requirement Minimum : 1. Intel® CoreTM i5-2430M @ 2.4 GHz 2. 4 GB RAM Personal Computer Recommended : 1. -
Page 10: Access Camera
Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search> button on the top. - Page 11 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password Admin 1234 NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
- Page 12 Once the Viewer is successfully installed, the Home page of the camera will be displayed as the figure below. Non-ABF Models...
- Page 13 ABF Models NOTE: For more details about the function buttons on the Home page, please refer to the Full HD Multi-Streams Ultra-WDR IP Camera Menu Tree.
-
Page 14: Lock Abf Function (Abf Models Only)
Lock ABF Function (ABF Models Only) Lock function is to lock the ABF function of the camera after focus is adjusted to the best position. This function is to prevent the camera from being out of focus when the camera is moved afterwards or is accidentally adjusted locally or remotely via NVR/VMS. -
Page 15: Setup Video Resolution
Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default values of video resolution are as below. H.264- 1280 x 720 (25/30 fps) + H.264- 1280 x 720 (25/30 fps) 1.3M H.264- 1920 x 1080 (25/30 fps) + H.264- 720 x 480 (25 fps) / 720 x 576 (30 fps) -
Page 16: Configuration File Export / Import
Configuration File Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 17: Tech Support Information
Tech Support Information This chapter will introduce how to delete previously-installed DCViewer in the PC and how to setup the Internet security. In addition, how to adjust the back focus of the cameras will also be described here. NOTE: Adjusting the back focus of the camera is only available for Non- ABF models. -
Page 18: Setup Internet Security
Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>... -
Page 19: Back Focus Adjustment (Non-Abf Models Only)
Back Focus Adjustment (Non-ABF Models Only) This section is for Non-ABF models only. Follow the instructions below to adjust the back focus of the camera. When to adjust back focus Back Focus refers to the distance from the rear lens element to the camera focal plane.
