Summary of Contents for AiRide G2

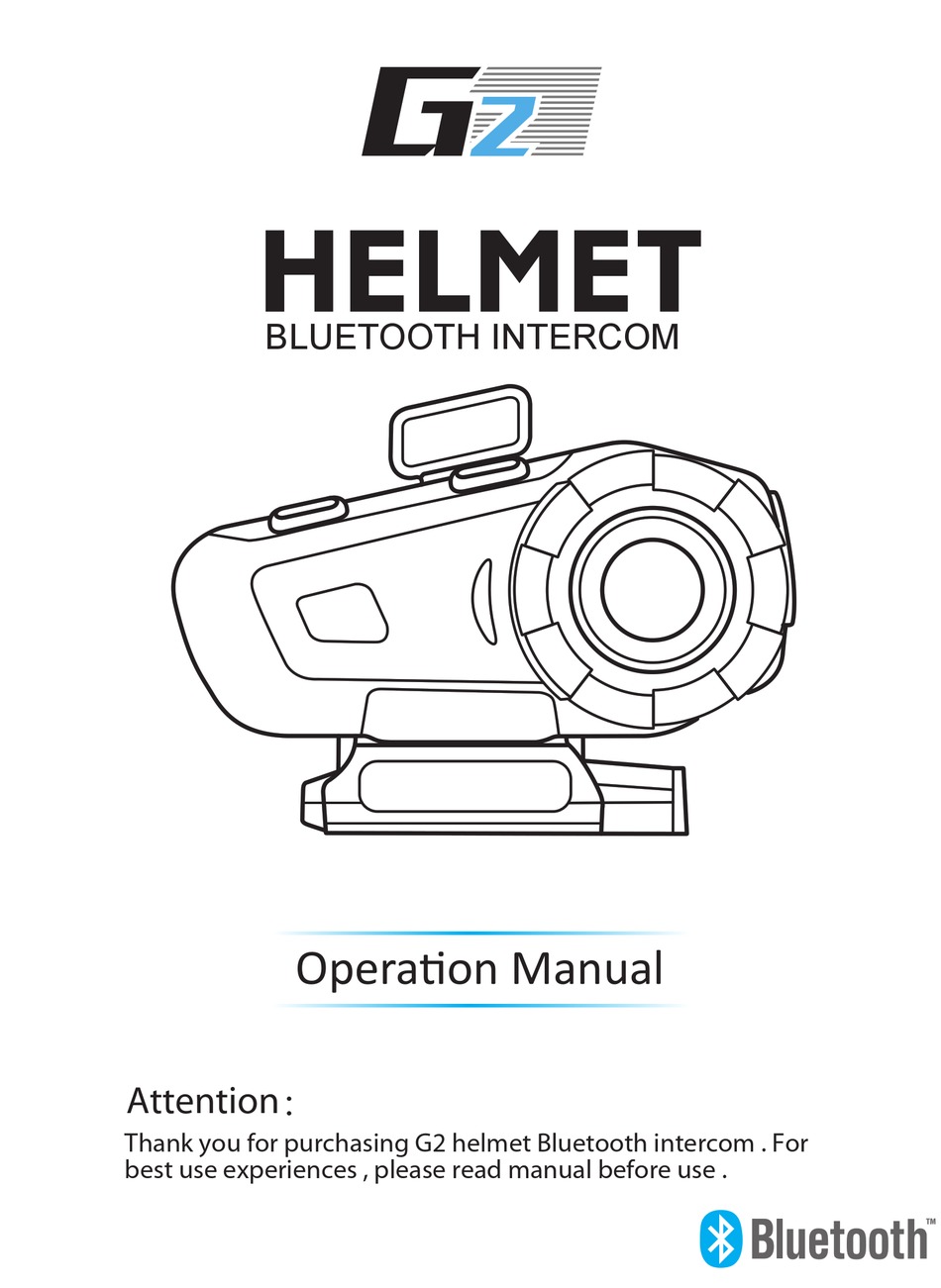

- Page 1 BLUETOOTH INTERCOM Operation Manual Attention ： Thank you for purchasing G2 helmet Bluetooth intercom . For best use experiences , please read manual before use .
-
Page 2: Installation
Installation Clip Headphone & Mic Kits Fix the headphone & Mick Kits on the right position, adjust the speakerand mic, then hide the speaker cable. Press Insert the main unit, press to the buttom of kits, main unit locked and installation completed. -
Page 3: Operation
Operation 1.Outlook / Function Intercom Volume - / Previous Volume + / Next LED Indicator Function Charge / Data Headphone & Mic Kits Passersby Communication Aux In... - Page 4 2. Charge 2.1 How to Charge Charge / Data Port For rst time use , please recharge the device until the red light is o . 1. Connect the cable with device and PC USB port ; 2. After cable connected , the red light on and start to charge , when battery is full , the red light will be o automatically .
- Page 5 10% , please recharge immediately . Power Detect Function:G2 has power detect function , when device is on , short press volume - and volume + button at the same time ,...
-
Page 6: Switch On/Off
3. Switch On / OFF 3.1 Switch On 3 Seconds Press Intercom + Function button for 3 seconds until the LED indicator ash blue light , a voice prompt “Welcome” will be heard . 3.2 Switch O 3 Seconds When device is on , press Press Intercom + Function button for 3 seconds until the LED indicator ash red light , a voice prompt “Power O ”... - Page 7 , entering pairing mode . STEP Name Switch cellphone Bluetooth , choose G2, the pairing is complete . Voice message will also say pairing complete . Remark: when pairing complete , please check both cellphone audio and media audio are all chosen , otherwise call or music can not be processed .
- Page 8 4.2 Cellphone Function Answering Call: Short press function once . Hangup Call: After call , short press function once . Refuse Call: Long press function button for 2 seconds . Redial: Short press function button twice . Volume Up: Press Volume + while talking . Volume Down: Press Volume - while talking .
-
Page 9: Voice Command
5. Voice Command When your G2 is paired up with cellphone , long press Passersby button , will automatically switch on the voice command Communication function . *Cellphone must equipped with this function . -
Page 10: Music Play
6. Music Play Volume - / Previous Volume + / Next Play: When device is on , short press Function . Pause: When music is playing , short press Function . Volume Up : When music playing ,short press volume + once . Volume Down : When music playing ,short press volume - once . -
Page 11: Wire Connection
7. Wire Connection Two-Way Radio (Needs professional radio connect cable) Any device with 3.5mm connector can transmit voice signal to G2. through the transfer line. - Page 12 8. Passersby Communication Passersby Communication Short Press Passersby communication button to switch on this function , and re-press will switch o this function . *This function allows rider talk to passersby without take o helmet .
- Page 13 9. Intercom Function ( Rider to Rider ) Headset A Headset B Cellphone A Cellphone B When device on , press both Headset A and B’s function button until red and blue light to enter pairing mode . Short press Headset A or B’s intercom button , the red and blue light will be ashed slowly .
- Page 14 10.FM Volume - / Previous Volume + / Next Intercom FM Switch On: Press Intercom button for 3 seconds when device is stand by ; FM Switch O : Press Intercom button for 3 seconds when FM is on ; Volume Up : When FM On , short press volume + once .
- Page 15 11. Memory Clean Memory Clear:When device is on , press Volume + and function button at the same time for 3 seconds . Then G2 will clear the pairing memory with other devices .
- Page 16 Long period or too loud may hurt hearing ability . 12.22 Disassemble or Modi cation The G2 is precisely made in factory . Any disassemble or modi cation may damage the device , please do not tear any of the safety regulation and serial sticker from the device , that will void the warranty .
- Page 17 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
