Summary of Contents for WaveBox WBP-TP-660

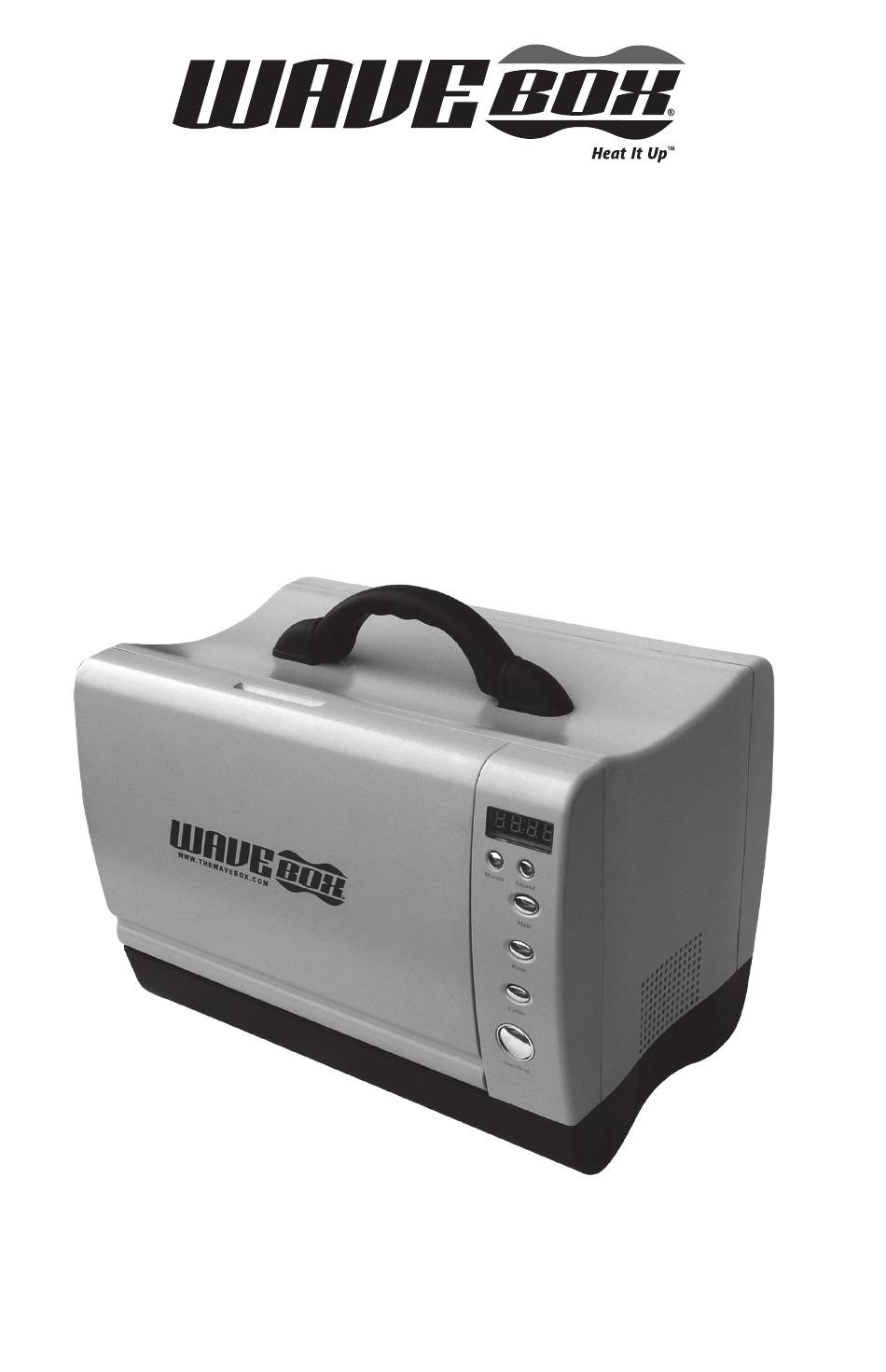

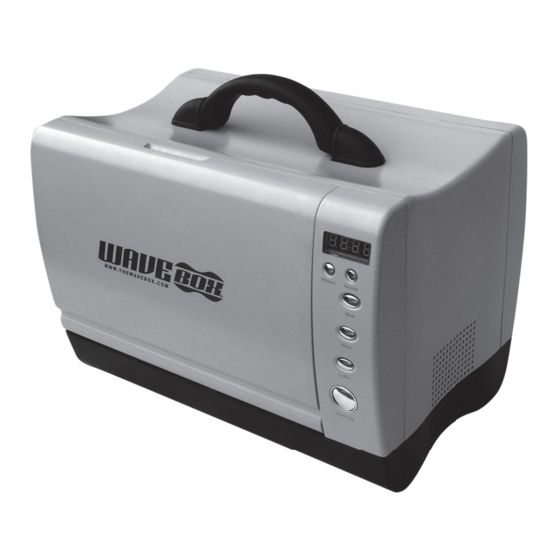

- Page 1 The WaveBox ® The worlds first portable microwave oven with removable cooler and exclusive Tri-Power capability Model No. WBP-TP-660...
- Page 2 DECLARATION OF CONFORMITY The Frank Group Microwave Oven, WaveBox Model WBP-TP-660 ® This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Contents Introduction……………………………………………………..4 Features…………………………………………………………..5 Important Safety Instructions………………………………………6 Unpacking and Accessories………………………………………7 Grounding Instructions and Installation……………………………8 Operation…………………………………………………………9 Cooking Times…………………………………………………..13 Safety…………………………………………………………….14 Care and Cleaning………………………………………………..16 Trouble Shooting……………………………………..………….17 Specifications……………………………………………………18 Warranty…………………………………………………………19... -
Page 4: Introduction
Introduction First of all, thank you for purchasing the WaveBox . We truly ® value your business, and will do all we can to make sure you are more than satisfied with your purchase. The WaveBox was designed by users like you to make possible ®... -
Page 5: Features
Features • Lightweight, compact, and completely portable • Powered by AC, DC direct to battery, or DC thru a power outlet • Built to withstand daily portability • Removable cooler system • Heavy duty handle system • Removable plug-in AC cord system • Direct to Battery DC Cable with two alligator clamps • Power Outlet DC Cable with a cigarette lighter plug • LED display... -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS . Read all Instructions before using this .When cleaning surfaces of door and appliance. oven that comes together on closing . Read and follow the specific the door, use only mild,nonabrasive soaps "PRECAUTIONS TO AVOID or detergents applied with a sponge or soft cloth. -
Page 7: Unpacking And Accessories
Unpacking and Accessories Unpack all accessories from inside the cooking cavity, including: • Cooler Insert • AC Power Cord • DC Direct To battery Cable • DC Power Outlet Cable • Plastic Cooking Rack with Ceramic Plate. Store the 2 DC cables in a convenient location to be used with any DC battery source. -
Page 8: Grounding Instructions And Installation
GROUNDING INSTRUCTIONS -A.C.MODE GROUNDING INSTRUCTIONS -A.C.MODE This appliance must bo grounded.In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current This appliance is equipped This appliance must bo grounded.In the event of an electrical short circuit, with a cord having a grounding wire with a grounding plug.The plug must be inserted into an outlet that is properly installed and grounded. -
Page 9: Operation
“fuse diagram”. The WaveBox is built to be operated with the vehicle running to reduce the risk of unintended battery drain, and to deliver maximum cooking power. - Page 10 Control Panel COUNT DOWN COOKING TIMER (20 MIN.MAX.) COOK TIME BUTTONS MINUTE SECOND PIZZA PRE-SET TIME BUTTONS FOR POPULAR FOODS COFFEE POPCORN START/STOP BUTTON CONTROLS OVEN START/STOP OPERATION AND CHILD LOCK FEATURE PULL FORWARD TO OPEN OVEN DOOR Caution: Do not place any objects on the door while it is open, Damage to the door sealing surfaces may result.
- Page 11 WaveBox ® At the end of the cooking time, the WaveBox will beep six times to signal that cooking has finished. If you want to stop cooking prior to the end of the cooking time, simply press the “Start/Stop”...
- Page 12 Child Lock For the safety of children, parents can press and hold the “Start/ Stop” button for 5 seconds, and “OFF” will be shown on the Display Window, locking all buttons. To unlock all buttons, parents must press and hold the “Start/Stop” button again.
-
Page 13: Cooking Times
Cooking Times Cooking times in both AC and DC direct connect mode are excellent. Some cooking speed is sacrificed when using DC power outlet mode due to the wiring ratings of most automobiles and boats. DC power outlet mode requires power outlet amperage of 20 amps or greater. -
Page 14: Safety
Safety • Read all instructions before using the appliance. • Do not attempt to use this oven with the door open since this can result in exposure to microwave energy. • Do not interfere or tamper with the safety systems on this unit. - Page 15 Let items stand and cool after cooking. • Carry the Wavebox only by the handle. • Do not suspend or hang the Wavebox from a tree, beam, pipe, or the like. • Do not carry or transport the Wavebox with liquid inside.
-
Page 16: Care And Cleaning
Care and Cleaning Exterior Clean with mild soap and water, rinse and dry with a soft cloth. Do not use any household or abrasive cleaner. Do not immerse in water, or get water in the exterior vents. Interior Wipe with a soft cloth and warm water. Do not use any household or abrasive cleaner. -
Page 17: Troubleshooting
Is a utensil inside? o Is aluminum foil inside? NOTE: For DC operation be sure to maintain correct polarity. The WaveBox will not operate with reverse polarity. To rectify, simply ® connect using correct polarity: red alligator clip to positive(+) battery post, and Black alligator clip to negative(-) battery post. -
Page 18: Specifications
Specifications (see product spec lable on rear panel) AC Voltage: 120V/60Hz DC Voltage: Input Current: AC..........5.5A DC Battery Direct.....55A DC Power Outlet.....20A Output Power: AC..........425W DC Battery Direct....425W DC Power Outlet..... 155W (at 2,460MHZ) Weight: 16.5 lbs NOTE: Unauthorized modifications to this device could void the user’s authority to operate it. -
Page 19: Warranty
Six Months Limited Warranty This limited warranty is the only one that applies to this product, and it sets forth all the responsibilities of the manufacturer regarding this product. There is no other warranty other than that described herein.This product is warranted, to the original purchaser only, to be free of defects in materials and workmanship for six months from the date of purchase without additional charge.
