Summary of Contents for SWIT Electronics Co.,LTD. CW-S150

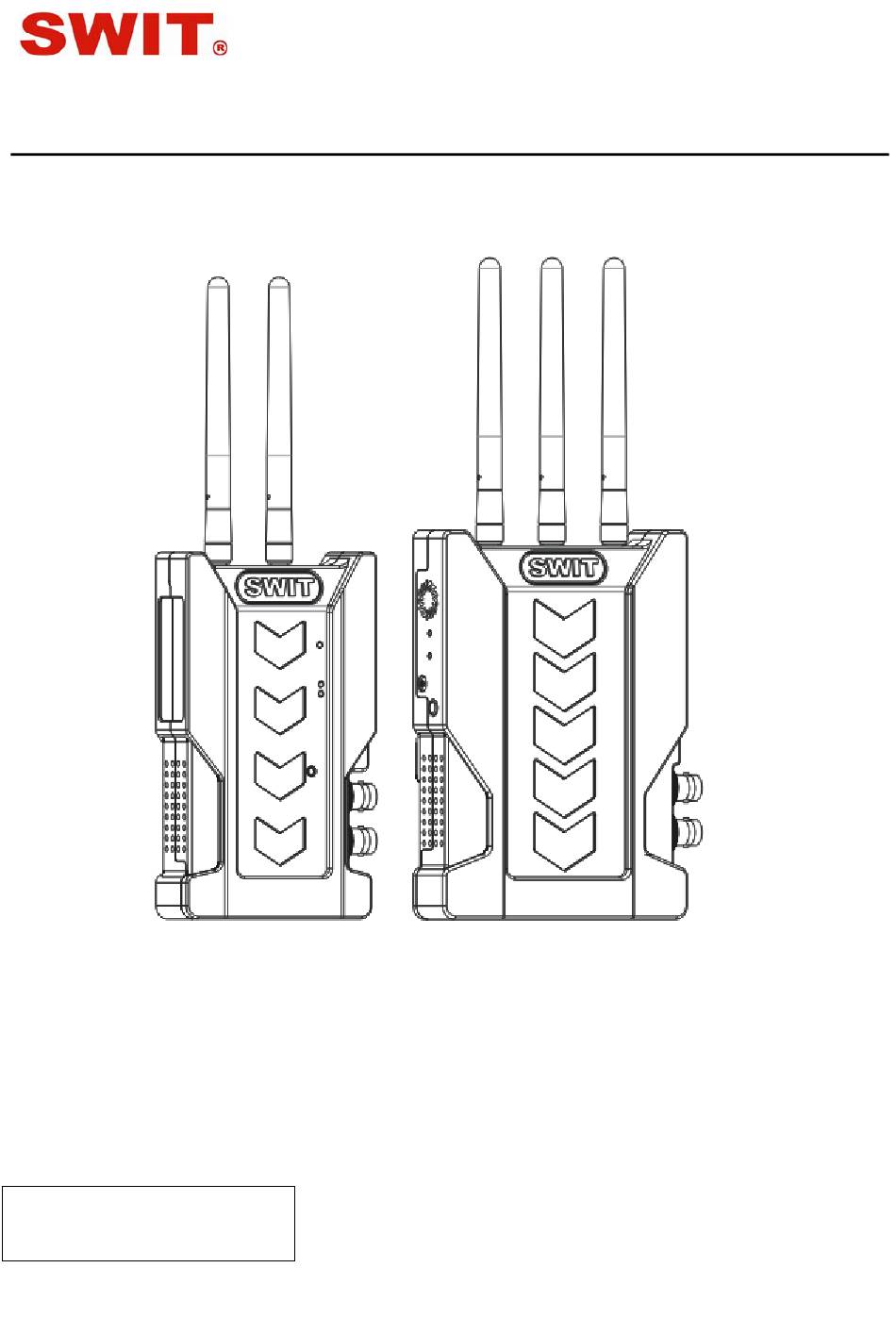

- Page 1 SWIT ELECTRONICS CO., LTD. Model: CW-S150 Professional SDI-150m Wireless HD Transmission System 、 User Manual Ver：A Please read this user manual throughout before using.
- Page 2 Preface 1． All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners.
-
Page 3: For Your Safety
For Your Safety Before start, please follow the safety precautions below: Do not try the followings: 1. Unauthorized repairs or parts replacement or other operations. 2. Inappropriate placement including but not limited to lighting, fire, exposure to rain, water or gas. 3. -
Page 4: Product Introduction
◆ Encryption Support AES 128-bit encryption to protect the transmission. ◆ Battery plate optional User can choose various standard DV battery plates for CW-S150 transmitter and V-mount or Gold mount battery plate for receiver. ◆ All-Metal Shell Both the transmitter and receiver adopt metal shell which is durable and solid. -
Page 5: Appearance Instruction
3. Appearance Instruction Transmitter CW-S150 Rear View Front view ⑴ Antenna ⑵ Network: RSSI LED indicator ⑶ Video: Video signal indicator ⑷ Power: Power status indicator ⑸ Pair: Pairing button ⑹ SDI LOOP: SDI loop output (BNC connector) ⑺ SDI in: SDI input (BNC connector) ⑻... - Page 6 Receiver CW-S150 Front view Rear view ⑴ Antenna ⑵ Network: RSSI LED indicator ⑶ Video: Video signal indicator ⑷ Pair: Pairing button ⑸ Installation thread: 1/4”-20 thread. ⑹ Product label ⑺ Battery plate：V-mount or Gold mount battery plate optional. See details in “7. Optional Battery Plate”...
-
Page 7: Setup Connection
⑵ Connect the “SDI OUT” port of CW-S150 receiver with monitor or other receiving devices. ⑶ Power the CW-S150 transmitter and receiver, the transmitter “Power” LED on, “Video” and “Network” LED flash; the receiver “Video” and “Network” LED flash; they will automatically search the network, and detect video signal, when the “Video”... - Page 8 Set the receiver as high as possible to avoid interference. ⑵ Avoid walls, trees, water and any blockage as best as you can ⑶...
-
Page 9: Battery Plate
7. Battery plate CW-S150 offers various battery plates to be powered for Transmitter and Receiver. CW-S150 transmitter is equipped with various DV battery plates to be powered by standard DV camera batteries, there are following different kinds of battery plates for option:... -
Page 10: Troubleshooting
The transmission distance is out of Try the wireless transmission at a closer effective range or being interfered by distance or clean out the obstacles obstacles. 9. Specification Model CW-S150 Transmitter CW-S150 Receiver Input SDI×1 Output SDI×1 SDI×2 Video format 1080i （...
