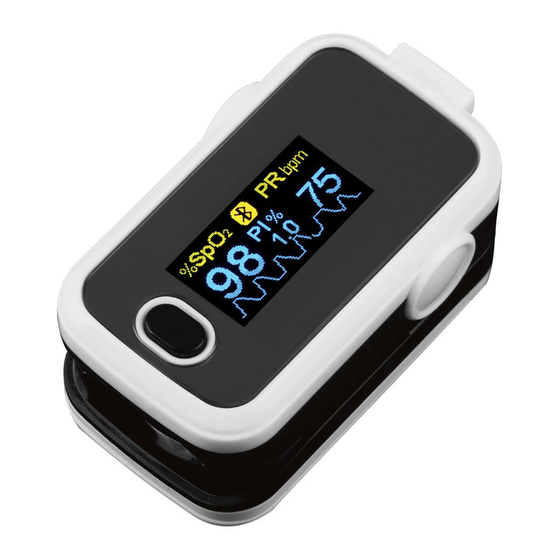

A310B Fingertip Pulse Oximeter
Operator's Manual
File No.: A310B-OPE
V 1.0
20180712

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A310B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeon A310B

Summary of Contents for Aeon A310B

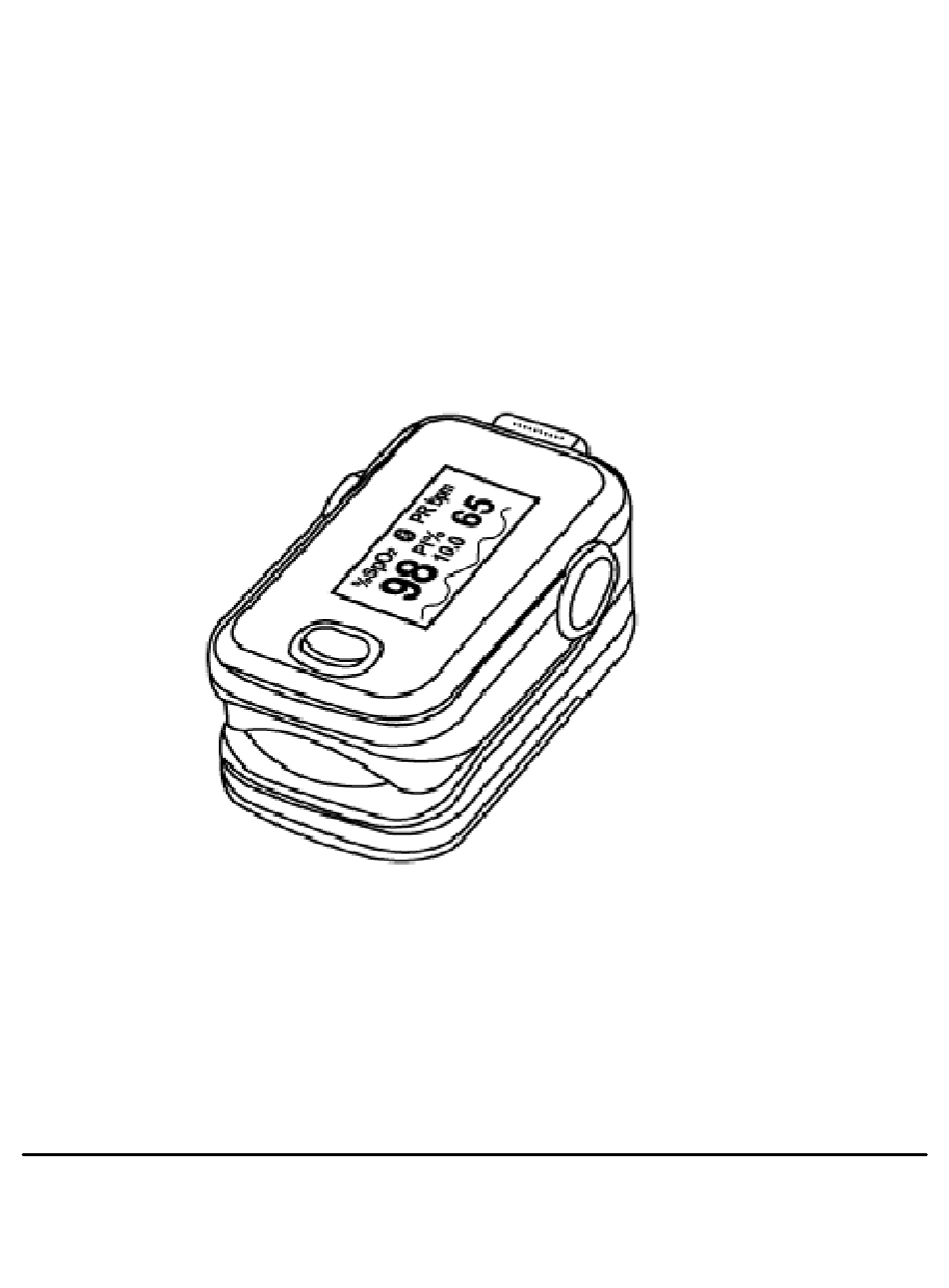

  • Page 1 A310B Fingertip Pulse Oximeter Operator’s Manual File No.: A310B-OPE V 1.0 20180712...
  • Page 2 Safety Instructions for the Safe Operation and Use of the A310B Pulse Oximeter Do not attempt to service the A310B Pulse Oximeter. Only qualified service personnel should attempt any needed internal servicing. Prolonged use or the patient’s condition may require changing the sensor site periodically.
  • Page 3 A310B Pulse Oximeter Warnings WARNING: EXPLOSION HAZARD — Do not use the A310B in a flammable atmosphere where concentrations of flammable anesthetics or other materials may occur. WARNING: Do not throw batteries in fire as this may causes them to explode.
  • Page 4 A310B Pulse Oximeter CAUTION: Never use sharp or pointed objects to operate the front-panel switches. CAUTION: The batteries must be taken out from the battery compartment if the device will not be used for a long time. CAUTION: The device shall only be used if the battery cover is closed.
  • Page 5 A310B Pulse Oximeter 1.3 Definitions and Symbols Symbol Description Type BF Equipment Batch code* Date of manufacture* Serial NO* Information of manufacture, including name and address Temperature limitation Bluetooth Indication When the end-user wishes to discard this product, it must be sent to separate...
  • Page 6 *Batch code, Date of manufacturer and Serial No are printed on the label on the battery cover. Section 2 Introduction 2.1 General This chapter provides a general description of the A310B Pulse Oximeter including: Brief device description Product features 2.2 Brief Device Description...
  • Page 7 A310B Pulse Oximeter The Pulse Oximeter, based on all digital technology, is intended for noninvasive spot-check measurement of functional oxygen saturation of arterial hemoglobin (SpO2). Advanced DSP algorithm can minimize the influence of motion artifact and improve measurement accuracy of low perfusion.
  • Page 8 A310B Pulse Oximeter  CAUTION: The device cannot be used to measure the child below 1 years as the test result is not guarantee to accurate. CAUTION: The fingertip pulse oximeter is intended only as an adjunct in patient assessment. It must be used in conjunction...

  • Page 9: Installation,Setup,And Operation

    A310B Pulse Oximeter *Low Perfusion: In physiology, perfusion is the process of a body delivering blood to a capillary bed in its biological tissue. Under the condition of low perfusion, the measurement of non-invasive saturation of pulse-blood oxygen is low-accurate.
  • Page 10 A310B Pulse Oximeter Item Name Description Power button Turn on the machine Display the SPO2/PR OLED Panel data & Plethysmogram,etc. Battery Compartment 3.2.Display After switch on, the OLED display of A310B is as follows: Figure 3.2.1 OLED display...
  • Page 11 A310B Pulse Oximeter 3.3 Parameter setting When the device is under measuring interface, press the direction button for 1 second in order to enter into menu page(figure 3.3.1 and figure 3.3.2 ). There are two submenus for choice: Remind Setup Press the direction button for 1 second and enter into the Reminder Setup.
  • Page 12 A310B Pulse Oximeter Restore When the ―*‖ symbol shown behind ―Restore‖, long press the direction button can be changed to ―OK‖, which causes the device to restore factory data setting. Brightness When the ―*‖ symbol shown on ―Brightness‖, long press the direction button to change the Brightness value from 1 to 5.

  • Page 13: Install Battery

    A310B Pulse Oximeter Figure3.3.1 Figure3.3.2 Note: 1.The alarm have 1 second delay after the incorrect result being detected. 2. The customer can preset the alarm value to the 98 or 99 to check whether it is normal for alarm setting.
  • Page 14 A310B Pulse Oximeter 3.4.2 Turn the Pulse Oximeter on Put one of fingers into rubber hole of the oximeter (it is best to put the finger thoroughly) with nail surface upward, then releasing the clamp. Press power button to turn the Pulse Oximeter on. The oximeter will be automatically powered off when no finger in the device for longer than 16 seconds.
  • Page 15 A310B Pulse Oximeter Note: 1.when battery power is at lowest level, the battery capacity indicates symbol of ― ‖in OLED, remind users of replacement of battery. 2. The pletismogragh can been regarded as correct if the wave is fluctuated regularly.

  • Page 16: Cleaning And Disinfection

    A310B Pulse Oximeter stored. If there is no reading, the device will power off automatically. Notes: With the Bluetooth 4.0 to transmit the data to App. The transmission distance is 10 m at most. Section 4 Cleaning and Disinfection 4.1 Cleaning Cleaning the machine once every day.

  • Page 17: Troubleshooting And Maintenance

    A310B Pulse Oximeter CAUTION: Don’t use strong solvent. For example, acetone. CAUTION: Never use an abrasive such as steel wool or metal polish. CAUTION: Do not allow any liquid into the product, and do not immerse any parts of the device into any liquids.

  • Page 18: Troubleshooting

    A310B Pulse Oximeter humidity existed in operation conditions. 5.2 Troubleshooting Table 5.2.1 troubleshooting Problems Possible Reason Resolutions Oxyhemoglobin or 1. Finger is not 1. Retry by plugging the heart rate can not plugged correctly. finger be shown 2. Patient’s perfusion 2.

  • Page 19: Specification

    A310B Pulse Oximeter The oximeter can 1. Power of batteries 1. Please replace batteries not be powered on might be inadequate 2.Please reinstall the or not be there at all batteries 2.Batteries might be 3.Please contact with installed incorrectly local customer service 3.The Oximeter might...
  • Page 20 A310B Pulse Oximeter Dimensions-80mm(L)x60mm(w)x55mm(D) Gross Weight: 70g Outer carton: Dimensions-440mm (L) X340mm (W) X290mm (H) Gross Weight: 8.7 kg Classification ： Anti-electric Shock Type：Internally powered equipment Anti-electric Shock Degree：Type BF equipment EMC：Type B Mode of operation: Continuous Operation Enclosure Degree of ingress protection: IP22...
  • Page 21 A310B Pulse Oximeter Environmental: Operating Temperature: 5° C to 40° C –10° C to 50° C Storage Temperature: Relative Humidity: 15% to 80% non-condensing Air Pressure 86Kpa-106Kpa Alarm default value: Parameter Value Upper limit: 100/ bottom limit:94 Hemoglobin saturation: Upper limit: 130 /bottom limit:50...
  • Page 22 A310B Pulse Oximeter ±3% (70%-100%) Hemoglobin Measure Saturation Unspecified (<70%) Accuracy: ±1 BPM Pulse rate Display 0-20% Resolution 0.1% Measure 0-1%: 0.1% Accuracy 1-20%: 1% Probe LED Specification; Wave Length Radiant Power 660±2 nm 1.8 mW Infra RED 905±2 nm...

  • Page 23: Fcc Statement

    A310B Pulse Oximeter FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 24 A310B Pulse Oximeter -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
  • Page 25 A310B Pulse Oximeter The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 5mm for body worn must be maintained between the user’s body, including the antenna.
