HE150 System Quick Guide

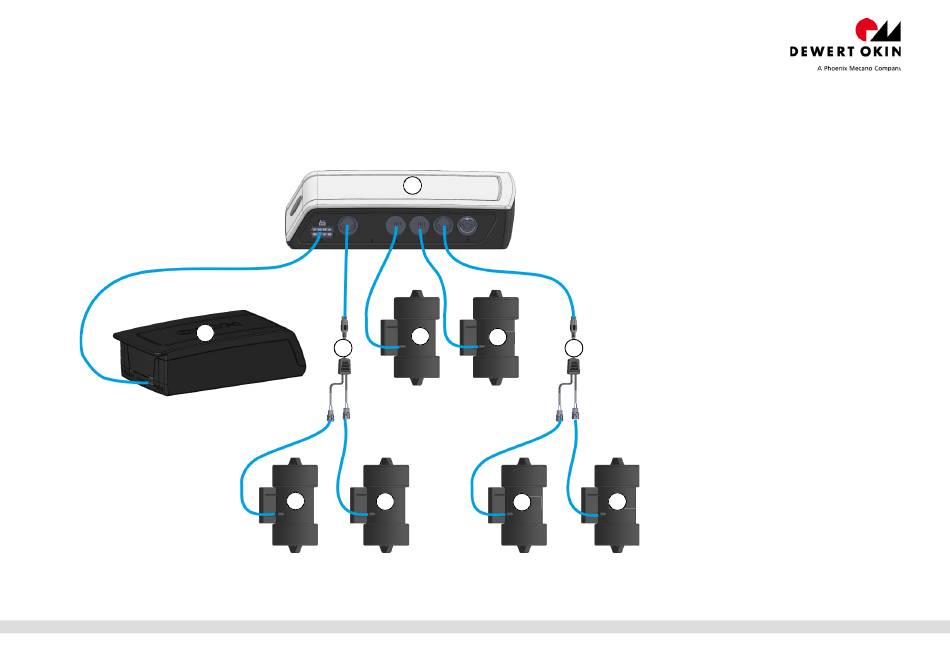

System overview: HE150 / PP1300 / RF-TOUCH / RF-TOPLINE
CAUTION!
Electrical components should be connected or disconnected only when the power supply cord is unplugged.
CAUTION!
There is a delay after the supply voltage is applied before the device actually turns on. Wait at least two seconds before beginning the commissioning.
2
23.08.2018
1
5
4
3
3
Id-Nr. xxxxx 4.0
6
8
7
7
Components that can be connected:
1.
HE150
2.
PP1300
3.
JLDQ Massage motor
4.
Distribution cable
5.
JLDQ Massage motor
6.
JLDQ Massage motor
7.
JLDQ Massage motor
8.
Distribution cable
1 / 6
Advertisement
Table of Contents
Summary of Contents for DewertOkin HE150
- Page 1 HE150 System Quick Guide System overview: HE150 / PP1300 / RF-TOUCH / RF-TOPLINE CAUTION! Electrical components should be connected or disconnected only when the power supply cord is unplugged. CAUTION! There is a delay after the supply voltage is applied before the device actually turns on. Wait at least two seconds before beginning the commissioning.
- Page 2 HE150 System Quick Guide HE150 Connection ports and functions Technical specifications Cable connection (HE-300 SMPS Input voltage 24-29 V DC POWER SUPPLY) Current consumption max. 6.00 A Connection for distribution cable Intermittent duty Mode of operation (PP1300 and JLDQ) 2 min. / 18 min.
- Page 3 HE150 System Quick Guide RF-TOPLINE Description of button Note: By pressing the buttons, the lights lit blue Button Function Drive M1 up Drive (head rest) up: The drive(s) move as long as this button is pressed. Drive M1 down Drive (head rest) down: The drive(s) move as long as this button is pressed.
- Page 4 Automatic teach-in The floor lighting and the blue LED are illuminated during this teach-in Insert the power plug into a power outlet. The HE150 will be in pairing phase for the RF remote. mode for 120sec which is divided as follows: During the first 60sec, an RF RF-TOUCH: Press pairing button A in the battery compartment.
- Page 5 Press the systems to their end positions. Reset/Pairing button on the HE150 (button 7) or the HE-300 SMPS Disconnect the power plug on both systems from the power socket. (button 9) until the end position has been reached.
- Page 6 HE150 System Quick Guide Cleaning and care The system was designed so that it would be easy to clean. Be sure to unplug the power cord on the power supply before you begin cleaning it! Clean the system using a dry antistatic cloth.
