Summary of Contents for Hi-FiD HFD-X1

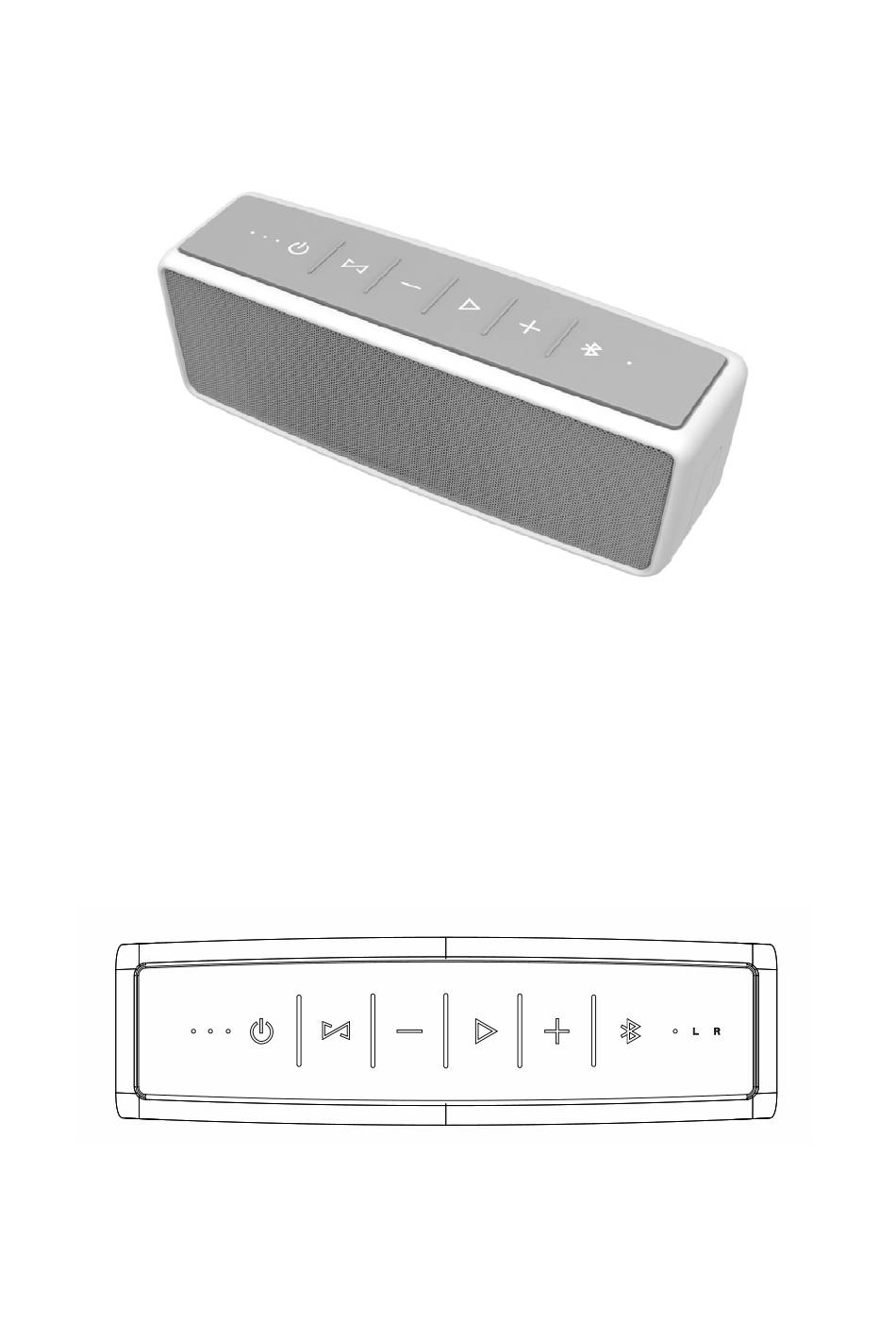

- Page 1 User Manual Product Name：Wireless Speaker Model No.: HFD‐X1 Box Content 1. 1* True Wireless Speaker 2. 1 * Charging Cable 3. 1* Audio Cable 4. 1* User Manual Product Overview 1. Battery Level Indicater 30% Battery 60% Battery 100% Battery ...
- Page 2 2. Power Button Press and hold for 3 seconds to power on/off the speaker. 3. Multi‐function Button Short press this button to toggle between Bluetooth/AUX/TF card modes. Press and hold this button to activate True Wireless pairing mode. 4. V(olume)‐ /Prev button Press and hold to decrease the volume. Simply press to navigate the previous track. 5. Play/Pause/Phone Button Simply press the button to play / pause the music. Press to answer / end or press and hold to decline the call. press and hold for 2 seconds to activate or end SIRI, when in bluetooth mode. 6. V(olume)+/Next Button Press and hold to increase the volume. Simply press to navigate the next track. 7. Bluetooth button Press and hold this button for 2 seconds to enter into bluetooth paring mode with the alert “Pairing” or disconnect the pairing. 8. Multi‐function Indicator Solid blue: Speaker is powered on ...
- Page 3 1. AUX IN Port Use this port to connect an external media device via the audio cable. 2. Charging Port Insert the power cord into the Micro‐USB port of the device(Use with 5V/1A adapter). Charging begins automatically even if the device is powered off. (USB power adapter not included) 3. TF Card Port Insert the TF card into this slot to play stored media sources. INSTRUCTIONS Blutooth Mode 1. Press and hold the bluetooth button for 2 seconds to enter bluetooth pairing mode with a sound alert “Pairing”, the indicator is flashing fast in blue. 2. BT Pairing Mode will automatically be canceled after 3 minutes. To re‐enter pairing mode, simply begin again at step #1. 3. Ensure bluetooth is enabled on the device you wish to pair with the speaker. 4. Keep your device within 3 feet with the speaker, and search bluetooth name “X1” on your device to pair them together (sometimes called a “Passkey”, “PIN Number” enter “0000”). ...
- Page 4 True Wireless Function 1. Connected one speaker to your device as normal bluetooth connection. 2. Power on another speaker 3. Press and hold the multi‐function buttons on these two speakers at the same time the Red and blue lights alternately flash, when the indicators “L” & “R” on both speakers are flashing together, they will be paired to each other successfully with the sound alert “Connected”. 4. The speaker connected with your device is the Master with the indicator “L” in solid white, the other is the Slave with the indicater “R” in solid white. 5. Play music on your device, both of them will work together. Notes: 1.If you just want to use one, press and hold the buttons “Volume‐” and “Volume+” together until the “L” and “R” light off on the speakers to clear the pairing records, then either of them can be used solely after re‐power it. ...
- Page 5 7.SNR: > 85dB 8. Frequency Response: 65Hz‐18KHz 8.Modes: Bluetooth, TF Card, AUX in 9.Response distance: 15 meters. 10.Microphone built in 11. Handfree Calls, Voice prompt, SIRI or S‐Voice Supported 12. Demension: 50*61*188mm Touble shooting Speaker will not turn on *If operating on Charging mode, ensure your speaker is connected to a working Power Adapter. *If operating on battery power, the battery may be in protection mode or discharged. Connect to a power adapter to restore the battery to operational mode. Cannot pair and connect the speaker with my BT device *Ensure your speaker is discoverable (BT status indicator blinks blue quickly). *Ensure BT is activated on your device, you have selected the right bluetooth name in the BT device list, and the connection has been confirmed by your device. *Your BT devices may be out of range. Try moving it closer to the speaker. *If possible, turn off all other nearby BT devices or disable their BT functionality. Turn the speaker off and back on, and pair your device and speaker. The speaker indicates a connection, but is not playing music *Ensure the device you want to hear is connected to the speaker and playing audio. *Ensure the speaker is not muted and the speaker volume is turned up. *Turn up the volume on your device. ...
- Page 6 Safety To prevent fires, shock or injury, please do not disassemble or replace any parts of this device. In the event that your device may be damaged or in need of repair, please contact a professional maintenance or qualified service center for assistance. We are not responsible for any personal injury or property damage caused by improper use of this product. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can ...
