User Guide

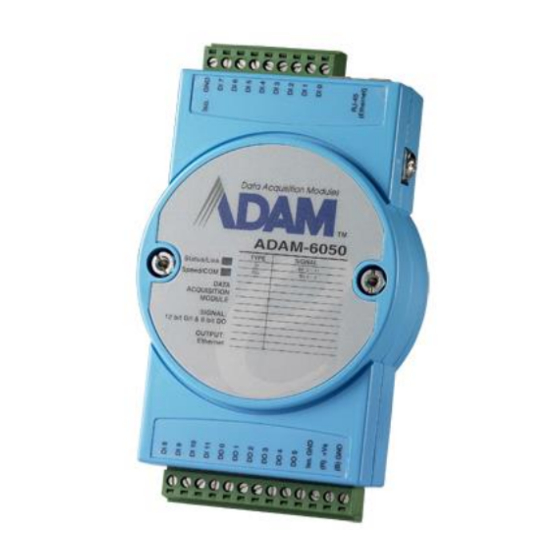

ADAM-6050
IP Input/Output Device
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8260-10-00 Product specifications subject to change without
notice. Issued: 9/18 Copyright © 2018 Vicon Industries Inc. All rights reserved.
XX260-10-00
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Related Manuals for Vicon ADAM-6050
Summary of Contents for Vicon ADAM-6050
- Page 1 XX260-10-00 Vicon Industries Inc. Tel: 631-952-2288) Fax: 631-951-2288 Vicon Industries Inc. does not warrant that the functions contained in this equipment will Toll Free: 800-645-9116 meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be 24-Hour Technical Support: 800-34-VICON used in life-critical situations and must not be used for this purpose.
- Page 2 Windows® XP, Vista™ and 7.0 operating systems and Valerus 18.2 and higher. Note The ADAM-6050 is intended to be used strictly as an input/output device with Valerus NVRs. It has many other features that are not supported for Valerus applications.
-
Page 3: Installation
Ethernet and blinks when data is being transmitted or received via Ethernet. Note Vicon strongly recommends the use of line conditioners, voltage regulators and uninterruptible power supply systems (UPS) to prevent voltage fluctuations that can affect operation and cause damage to the equipment. -
Page 4: Wiring And Connections
I/O modules and field devices. Connection to the Valerus System In order to find the ADAM-6050 on the network and assign it an IP address, download the ADAM.NET Utility software that is on the CD provided with the unit. Once the Utility is downloaded, a shortcut to the Utility will be placed on the PC desktop. - Page 5 ADAM-6050. Note If it is the first use of the ADAM-6050, the default IP is 10.0.0.1 and it will be found under Others in the Module list. Click on the unit and change IP Address, Subnet Mask and Default Gateway according to your network settings;...
- Page 6 Installation and Operation Guide Channel Setting The LED button next to the DI number displays the value of the digital input. Modbus...
- Page 7 Adding the ADAM-6050 to Valerus The ADAM-6050 is supported with Valerus version 18.2 and higher. From the Configuration tab in Valerus, select Cameras and Devices. The following screen displays. These devices will not be auto-discovered. Select Add Device Manually. The following popup displays. Select the NVR you want the device assigned to...
- Page 8 Installation and Operation Guide Enter the IP address of ADAM-6050. The Port Number is 502; be sure your firewall is open to this port. Click Apply to continue using the screen. Click Apply and Close when finished. The inputs and outputs of this device will now show under Resources from the Configuration tab along with the inputs and outputs that are on IP cameras and encoders.
- Page 9 Relay Outputs Click on Relay Inputs to open the Properties screen for a list of available relay outputs. Select the output you want to configure. The output can be given a specific name and helpful identification details can be added in the Description field. Click the Visible button to Yes for this output to appear in the Resources list on the Monitoring screen.
-
Page 10: Troubleshooting
Troubleshooting After setting the IP address, adding it to Valerus Cameras and Devices and doing all other settings (i.e., port 502), the ADAM-6050 may not come online in the system or have any available sensors when setting up alarms. To fix this, from the Adam.net Utility, select the local IP of the device and then click the Access Control tab. -
Page 11: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. - Page 12 “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
- Page 13 Vicon product, whether resulting from breach of warranty or any other legal theory. Notwithstanding the foregoing, Vicon total liability for all claims under this warranty shall not exceed the price paid for the product.
- Page 14 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
