Summary of Contents for Edco MS670B

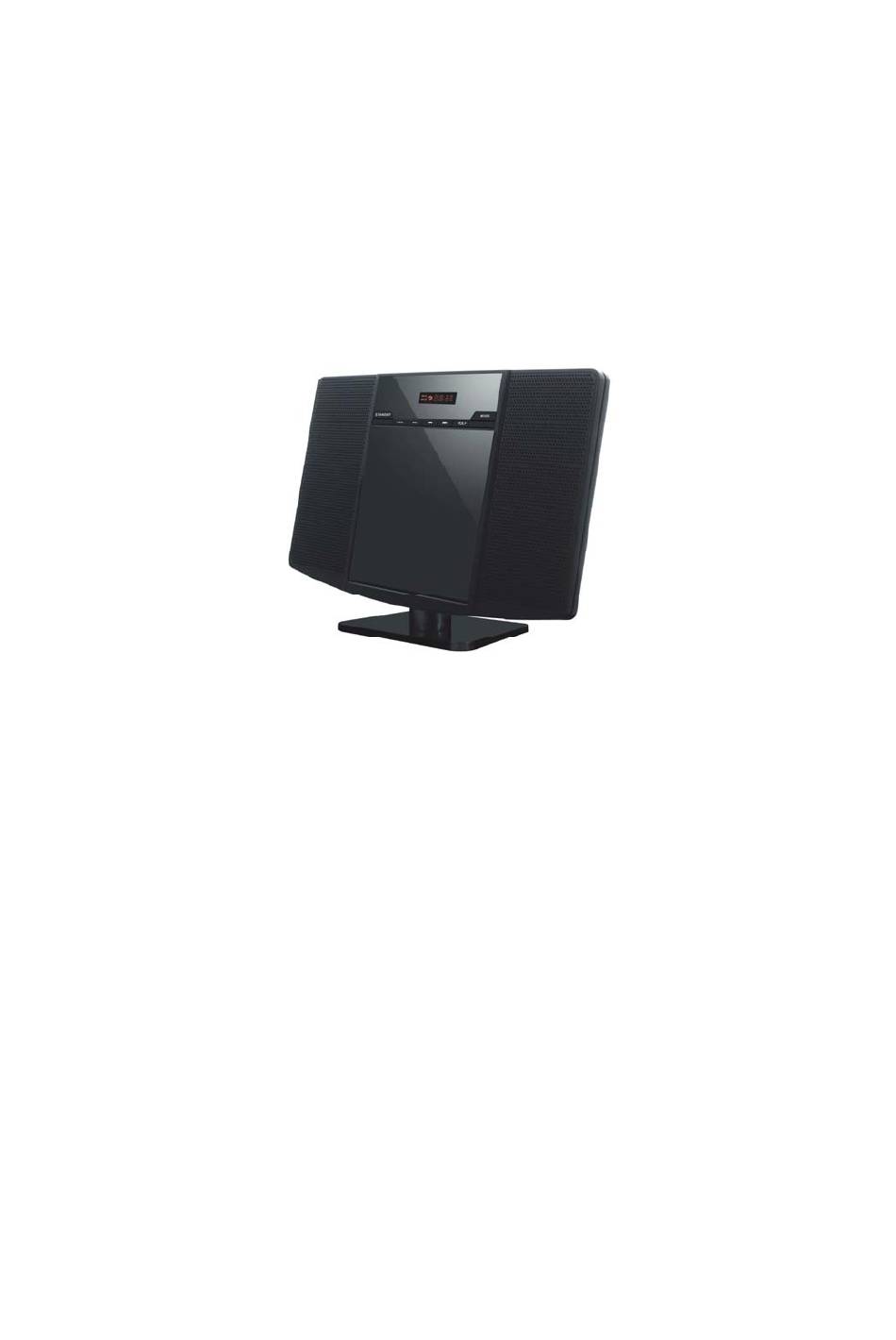

- Page 1 BLUETOOTH CD STEREO SYSTEM User manual MODEL: MS670B Please read carefully this manual before operating the device. Keep it for future reference.
-
Page 2: Table Of Contents
Table of content Table of content ..............Safety information .............. Location and player functions ..........Installation ................Remote control ..............Operation ................Basic operations ........... Tuner operation ............. CD/MP3 operation ..........USB/SD operation ..........LED display ............Troubleshooting ..............Specifications .............. -
Page 3: Safety Information
Safety information Always read the safety instructions carefully. Keep this user’s manual for future reference. Lay this equipment on a reliable flat surface before setting it up. Do not let it on soft furniture. When the power plug is used as the disconnect device, the disconnect device shall remain readily operable. - Page 4 and around it to allow for adequate ventilation. Do not place the device in an unventilated cabinet or on top of a unit which emits heat. Copyright statement No part of this publication may be reproduced in any form by any means without prior written permission.
-
Page 5: Location And Player Functions
3. In order to avoid any danger: have service work only carried out by the manufacturer or an authorized service workshop. 4. There is a visible laser radiation when the device is open. 5. The use of other remote controls or adjustments or different procedures than those specified herein may result in hazardous radiation exposure. - Page 6 Side view C. Earphone jack AUX-IN jack: auxiliary input 3.5 mm jack. FM ANT: it is used to receive radio signal. DC 5V – 2A power socket USB interface...
-
Page 7: Installation
Installation For table top use The stand has to be attached to the main unit for table top use. For wall mounting Remove the stand from the main unit. Make sure the marks are level before drilling. Drill the holes on the marks. See the illustration below. -
Page 8: Remote Control
Remote control : press to turn on or off the unit. /AUTO: press to play/pause the playback. In tuner mode, press to start auto searching. : in media play mode, press to stop play. REM: in FM radio mode, press to store the station into memory. CH- : in media play mode, press shortly to skip to the next track. - Page 9 Numeric buttons (1-5+): press to input numbers to select the track or channel. MUTE: press to mute/resume the sound. VOL+/VOL-: press to adjust the volume level. RAN: in CD mode, press to random playing. REPEAT: in media play mode, press to select repeat one, repeat folder, repeat all. MODE: press to select the different modes, such as CD, USB, FM radio, Bluetooth and AUX mode.
-
Page 10: Operation
Operation BASIC OPERATIONS Switching on/off the unit Press button on the player or on the remote control to turn on the unit. When the unit is on, press button to turn the unit off. Mute Press MUTE button to mute the sound instantly. Press it again will resume the sound. -
Page 11: Tuner Operation
Auxiliary input The unit can be connected to a portable audio player through the AUX-IN jack on the back of the unit. After finishing the connection, you can press MODE button on the player or on the remote control to switch the mode to AUX mode. TUNER OPERATION Switching to tuner mode Press the MODE button on the player or on the remote control to select the tuner... -
Page 12: Cd/Mp3 Operation
CD/MP3 OPERATION Switch to CD mode Press PUSH to open the disc cover, then gently place the CD/MP3 disc with the printed side uppermost on the disc compartment and then close the disc cover. Keep pressing the MODE button on the player or on the remote control to select CD mode. - Page 13 USB consumption exceeds 500 mA. BLUETOOTH OPERATION 1. Press the MODE button to select Bluetooth mode. 2, Use your Bluetooth device to scan and pair with this player. The pair name is MS670B. 3, Play your desired music from your Bluetooth device.
- Page 14 IC Warning - English: " This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. - French:"...
- Page 15 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
