PRODUCT OVERVIEW

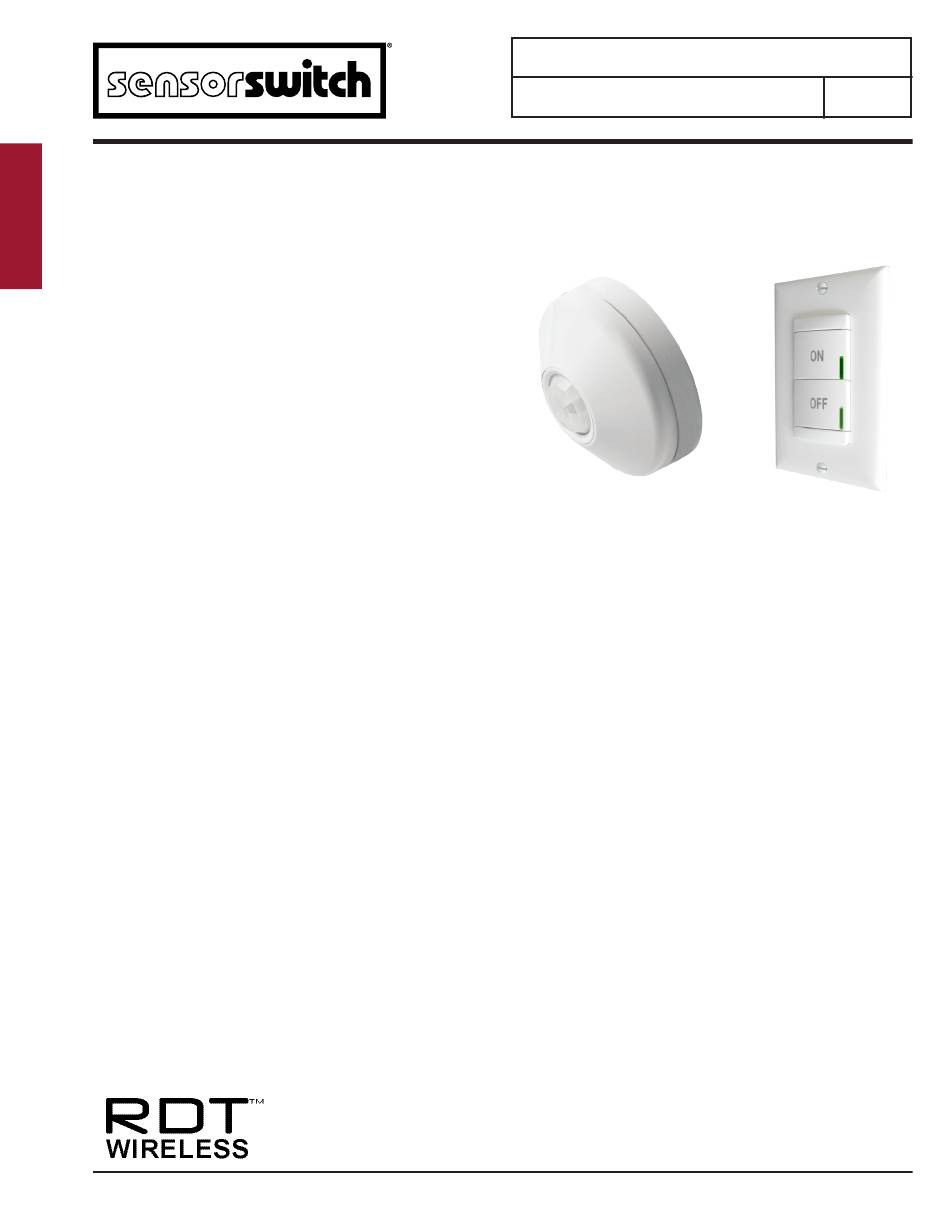

Sensor Switch introduces its RDT Wireless occupancy sensor and switch. The
CM PDT xx WR is a wireless, battery operated ceiling sensor that incorporates
both Passive Infrared (PIR) and Sensor Switch's patented Microphonics™ dual
technology making this sensor ideal for rooms where line of site is obstructed.
The battery powered sensor has an estimated battery life of 10 years (at default
settings).
The SPODMR WR is a stylish, easy to install, and simple to use Wall Switch for
use with synched CM PDT xx WR occupancy sensors or other RDT dimming
interface modules, kinetic switches, or plug-load controllers. Designed to replace
a standard wall toggle switch, the SPODMR WR wires to the standard wiring
already present in the wall switch box. Once wired, a few button pushes will
synch the switch to desired RDT devices.
OPERATION — The CM PDT xx WR sensors have Passive Dual Technology
(PDT), first seeing motion using 100% digital Passive Infrared (PIR) detection and
then engaging Microphonics™ to hear sounds that indicate continued occupancy.
When occupancy is detected, a wireless signal is transmitted to compatible
wireless receiver/relay devices that switch the lighting load on.
The SPODMR WR wireless switch contains a line-voltage relay and
communicates wirelessly with one or more synched sensors as well as other
switches. The relay has a user adjustable time delay (30 seconds - 30 minutes)
that counts down after the synched sensor detects occupancy and transmits that
status to the switch. The switch then closes its relay and turn the lights ON. It
also resets its timer and begins a new countdown. If the timer within the Switch
expires, the relay will be opened to turn lights OFF. Multiple sensors or RDT
devices may be synched with the RDT Switch.
The SPODMR WR is also ideal for three-way applications. Since multiple RDT
devices can be paired, simply add a second wall switch to provides quick and easy
switching from multiple locations.
KEY FEATURES
CM xx WR:
RDT 902 MHz Compliant
10 Year Battery Life (at defaults)
360º Coverage Pattern
Patented Dual Technology with
PIR / Microphonics Detection
Push-Button Programmable
Adjustable Time Delays
No Field Calibration or Sensitivity
Adjustments Required
Green LED Indicator
Push-Button Pairing with
Compatible Devices
Retrofit Applications
900 Northrop Road, Wallingford, CT 06492 Phone: 1-800.PASSIVE Fax: 203-269-9621 www.sensorswitch.com ©2013 Acuity Brands Lighting, Inc. All rights reserved 12/06/13
SPODMR WR:
100% wireless operation w/
synched CM xx WR, RDT
Plug-Load controller, and/or
RDT dimming interface module
2 Green LED Indicators
Line power and load wires are
interchangeable - impossible to
wire backwards (patented)
Compatible w/ LEDs, Electronic
& Magnetic Ballasts, CFLs, &
Incandescents
Push-Button Programmable
Adjustable Time Delays
Matching wallplate included
Retrofit Applications
Catalog Number
Notes
WIRELESS SENSOR &
SWITCH
WIRELESS BATTERY POWERED
CEILING MOUNT SENSOR
PASSIVE INFRARED (PIR) or DUAL TECH (PDT)
OPTIONS
CM xx WR Only:
PASSIVE DUAL TECHNOLOGY (PDT)
Ideal for rooms with obstructions - e.g. bathrooms with stalls and open office
cubicle areas
• Incorporates PIR and Microphonics (patented)
• Utilizes Automatic Gain Control (AGC) to self-adapt the sensor to its environment
• 100% passive detection, no potential for interference with other building systems
SPODMR WR Only:
COLOR
Available in 5 colors
• White, Ivory, Gray, Light Almond, and Black
WIRELESS RANGE GUIDELINES
Line of Sight: 98.43 ft (30 m); e.g. corridor
Plasterboard / Dry Wood: 98.43 ft (30 m), max 5 walls
Concrete Walls / Ceiling: 32.81 ft (10 m), max 1 wall/ceiling
Type
WIRELESS WALL SWITCH
1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMxxWR series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sensor Switch CMxxWR series

  • Page 1 Type WIRELESS SENSOR & PRODUCT OVERVIEW Sensor Switch introduces its RDT Wireless occupancy sensor and switch. The CM PDT xx WR is a wireless, battery operated ceiling sensor that incorporates SWITCH both Passive Infrared (PIR) and Sensor Switch’s patented Microphonics™ dual technology making this sensor ideal for rooms where line of site is obstructed.
  • Page 2: Specifications

    Wireless Sensor & Switch SPECIFICATIONS SPECIFICATIONS ELECTRICAL SPECS CM xx WR: SPODMR WR: SPODMR WR: ENVIRONMENTAL SPECS SIZE: 4.5” Diameter (11.56 cm) SIZE: 2.74”H x 1.68”W x 1.63”D MAXIMUM LOAD: OPERATING TEMP 2.39” Deep (6.07 cm) 6.96 cm x 4.27 cm x 4.14 cm) 800 W @ 120 VAC / 1200 W @ 277 VAC CM xx WR: -4º...
  • Page 3 Wireless Sensor & Switch SPECIFICATIONS EXAMPLE APPLICATION DIAGRAMS Note: All devices must be RDT Wireless compliant Line Powered Wireless Switch Battery Powered & Load Controller Wireless Sensor (SPODMR WR) (CM xx WR) LOAD LOAD Battery Powered Line Powered Wireless Switch Line Powered Energy Harvesting Wireless Sensor(s)
  • Page 4: Pairing Instructions

    Wireless Sensor & Switch SPECIFICATIONS PAIRING INSTRUCTIONS PLEASE NOTE: PRESS REPEAT WHILE IN THE LEARN STATE, THE LEDs PATTERN FLASH*. STEP 3 FOR EACH ADDITONAL DEVICE LEARN DEVICES EXIT THE LEARN STATE 2 MINS PRESS TO PAIR, THEN STATE AFTER LAST DEVICE PAIRED OR LEFT - OR - PROCEED TO INACTIVE.
  • Page 5: Installation Instructions

    Wireless Sensor & Switch CM xx WR OPERATIONAL SETTINGS Use push-button on side of sensor to Microphone On Time** Test Mode change settings. Duration that the microphone will stay on after the last Temporarily sets heartbeat time to 5 sec and * Denotes factory setting occupancy transmission.
  • Page 6: Installation

    Wireless Sensor & Switch SPODMR WR OPERATIONAL SETTINGS Use ON/OFF buttons on switch to change settings; * denotes factory setting. Occupancy Time Delay Sequence of Operation Status LED Operation Duration the unit’s relay will remain closed after the Selection of Auto On, Manual On, or Predictive operating Controls whether or not a button’s LED remains on when last occupied transmission is received.
  • Page 7: Ordering Information

    Wireless Sensor & Switch ORDERING LOGIC (example: CM PDT 9 WR) Packaging Lens Photocell Series Blank Blank Standard WR Wireless Standard Standard Range 360º Passive Infrared Photocell CM PDT Dual Technology Extended Range 360º (example: SPODMR WR WH) Packaging Operating Mode Voltage Color Series...
  • Page 8: Compliance Information

    Wireless Sensor & Switch COMPLIANCE INFORMATION SPODMR WR: FCC: VR8-SSIINTR002 CM xx WR: FCC: VR8-SSIINTR003 IC: 7791A-SSIINTR002 IC: 7791A-SSIINTR003 These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
