- Page 1 Filament Run-out Sensor Installation Guide Filament Run-Out Sensor Installation Guide - N2/N2 Plus WWW.RAISE3D.COM AMERICA · ASIA · EUROPE...

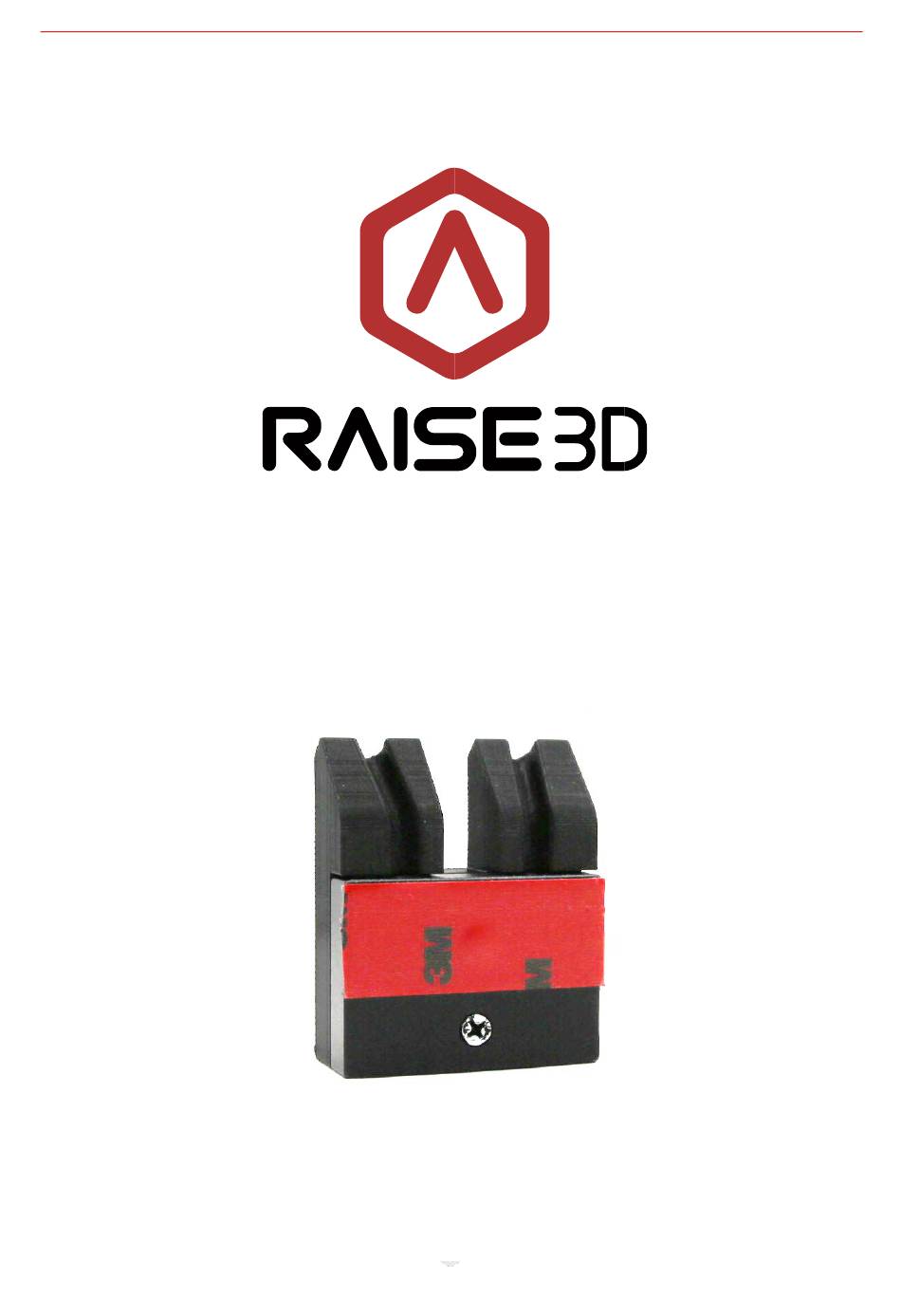

- Page 2 Filament Run-out Sensor Installation Guide Contents List of contents: A. Filament Run-out Sensor. B. Filament Run-out Sensor Cable. C. Adapter. D. Bowden Tube with 4mm-OD *2. E. Cable Tie *4. STEP 1: Disconnect Power Turn power switch to the “0” or “Off” state. Once the printer has fully shut down, unplug the power cable. STEP 2: Remove Acrylic Back Panel with Side Door Remove the back panel of the printer with a phillips head screwdriver.
- Page 3 Filament Run-out Sensor Installation Guide N2: 10 screws N2 Plus: 11 screws STEP 3: Open the electronic box cover Remove the 4 fixing screws with a 2mm hex wrench. If your model does not have visible screws, this cover may be removed by utilizing the push tabs that connect the cover to the frame.
- Page 4 Filament Run-out Sensor Installation Guide Pass the white Filament Run-out Sensor cable through the wire path along the back side of the machine. Feed the end of this cable down under the printer and loop the cable back up into the electrical compartment.
- Page 5 Filament Run-out Sensor Installation Guide Attach the other three ends of the adapter onto the Motion Controller Board as shown in the following pictures: Red-black cable to EXP3 (slot on terminal face to right), White Cable to Y+, Green Cable to Z+. Wiring complete: EXP3 WWW.RAISE3D.COM...
- Page 6 Filament Run-out Sensor Installation Guide STEP 6: Assemble the Filament Run-Out Sensor Connect the white Filament Run-Out Sensor cable (B) to the Filament Run-Out Sensor (A). Remove the tape covering. STEP 7: Check the Filament Run-Out Sensor function Power on the printer. Check whether the red lights on sensor are on or not with no filament passing through the sensor.
- Page 7 Filament Run-out Sensor Installation Guide 2) If the original Bowden Tubes on your printer are with 6mm-OD: Keep the origin tubes and directly insert the new 4mm–OD tubes to pass through. STEP 9: Install the Filament Run-Out Sensor Insert the Filament Guide Tubes into the two holes located at the end of the guiding paths of the plastic back cover.
- Page 8 Filament Run-out Sensor Installation Guide STEP 10: Loading Load filament through the Run-Out Sensor and up through the Bowden tube to make sure the filament path is assembled correctly. Note the filament feeding order for each nozzle to prevent false alarm. STEP 11: Attach All Removed Parts Re-attach the components that have been removed.
