Summary of Contents for E-MAGA Interconnect BaldurTouch II
- Page 1 BaldurTouch II Street Light Controller Instruction Product Name：BaldurTouch II Product Model：EMLLC-B10-915A11-G0 Version：V2.0...
-
Page 2: Table Of Contents
Content 1、Product Introduction ......................1 BaldurTouch II Street Light Controller Introduction..........1 Dimension ................. 错误！未定义书签。 Definition of Wire Connection of the Holder ......错误！未定义书签。 Characteristics ................错误！未定义书签。 2、Technological Parameter ....................6 3、Installation Guidance ......................7 Street Light Controller Installation ..........错误！未定义书签。... -
Page 3: 1、Product Introduction

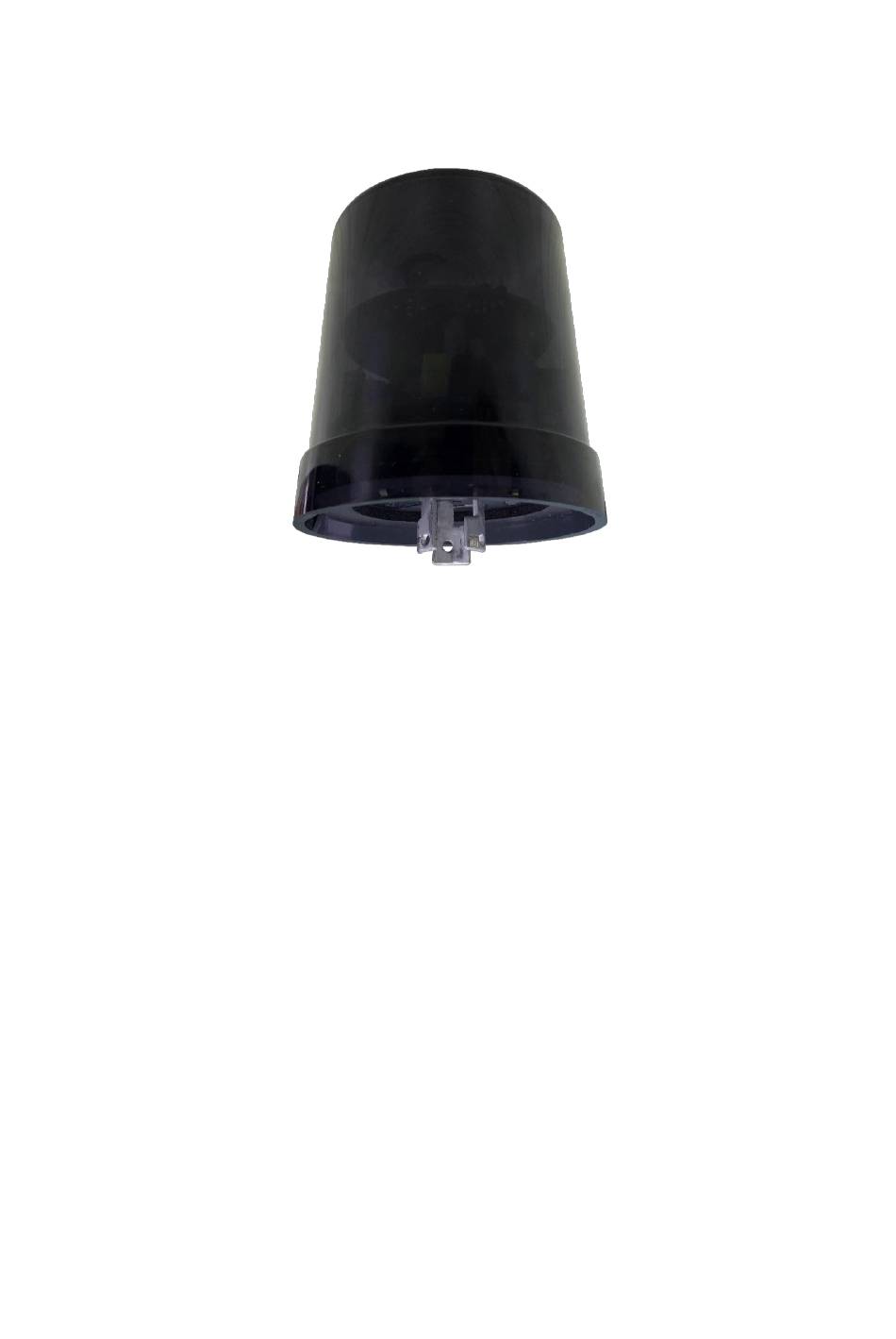

1.Product Introduction BaldurTouch II Street Light Controller Introduction BaldurTouch II Street Light Controller is applied in the field of intelligent road lamp, using LoRa technology. It is solely developed, manufactured, and marketed by E-MAGA Interconnect. This product is characterized by long distance transmission, low power consumption, and high stability. -
Page 4: Dimension
Dimension Picture 1-2 BaldurTouch II Street Light Controller Dimension 2 / 19... -
Page 5: Definition Of Wire Connection Of The Holder
Definition of Wire Connection of the Holder Picture 1-3 Holder Wire Connection Picture 1-4 BaldurTouch II Holder Wire Connection Picture 1-5 Power Supply Connection 3 / 19... - Page 6 Picture 1-6 Power Supply Connection 2 Table 1-1 Power Supply Connection External Input Power Supply Holder Street Switch Light L（black） Red Wire（LOAD） LOAD N（white） White Wire（NEUT） NEUT G（Green） Black Wire（LINE） LINE Dim+（PUR） Purple Wire（Dim+） Dim+ Dim-（GRY） Gray Wire（Dim-） Dim- 4 / 19...
-
Page 7: Characteristics
The BaldurTouch II lighting controller can monitor street lights in a real time fashion, including detecting parameters like current, voltage, power consumption. A report can be produced after processing and completing statistics work in the cloud. -
Page 8: 2、Technological Parameter
2、Technological Parameters Table 2-1 BaldurTouch II Street Light Controller Technological Parameters Processor ARM Cortex-M3 Channel Range 902MHz-928MHz Sending Power PMax<=1W LoRa Receiving Sensitivity -125dBm~-140dBm Antenna Model PIFA Antenna LoRa Module LoRa Module Sending Instant Current：less than Working Current 120mA Photocell 0.01lux~83K lux... -
Page 9: 3、Installation Guidance
3．Installation Guidance Street Light Controller Installation A. Match the three pins on the BaldurTouch II controller with the three sockets on the holder, and then screw the two parts clockwise, as shown below. Picture 3-1 BaldurTouch II Controller and Holder... - Page 10 B. Select “Baldurmind”. C. Type in user name and password to login in the account. D. Enter BaldurMind Main Interface 8 / 19...
- Page 11 3.2.2 Add BaldurTouch II Street Light Controller A. Edit BaldurTouch II by successively select: System Management, My Asset, and Device Menu. B. Click import device, choose single device or multiple device 9 / 19...
- Page 12 B1. Import single device: fill in required information for the device and then click ADD. B2. Import multiple devices: user can obtain SCV document as per to importing instruction to import the device information. 10 / 19...
- Page 13 C.Use APP （ baldurmaintainer ） to activate the device after importing the device information. 3.2.3 Activate the controller by APP version of baldurmaintainer A. Open the APP of BaldurMaintainer on the cellphone and then enter account name, password, and server location to login. The account name is the email address of maintenance staff, which is set in the PC version of n baldurmind.
- Page 14 A. Choose installation interface and then click “add device” button. Enter the grouping interface and then type in the device name. Choose installation grouping and then click half-activated mode. Note：Half-activated，device will be half-activated by using app to scan the QR code without device being powered on.
- Page 15 top-right position, and use the scanning window to scan the QR code on the controller. C. If the QR code has been scanned successfully, it will automatically enter the 10s countdown activation process.After being successfully activated,”Device activate success”will pop up. D.
- Page 16 E. At the same time，user can find that the device is at half-activated status in the device list of BaldurMind on PC side. F. After powering on the light,the device status will display as “fully activated” on the device list of BaldurMind on PC side.Now the light can be controlled by the controller via BaldurMind.
- Page 17 15 / 19...
- Page 18 4、Common Problems User cannot control the light controller（1） Reason：Base station is unconnected. Approach：Street light cannot be controller either by WEB-based BaldurMind or APP, unless there is at least one base station being connected. Check the connection status of the base station, if unconnected, please check the base station until it has been successfully connected.
- Page 19 5、Cautions When you install the light controller, the pins on the bottom of the controller must be matched correctly with the receptacle on the street light, please refer to picture 1-3 and picture 1-4； Do not power on the light during installation. Please turn off the power before taking off the controller；...
- Page 20 6 、FCC Label: Size:L=40mm,H=30mm 7 、Manufacturer&Importer Manufacturer： Emaga InterConnect Technologies Co.,Ltd 8/F, jinfulai Mansion, No.49-1, Dabao Road, Baoan 28 District, Shenzhen, China 6、Copyrights Emaga Interconnect Technologies Co.,Ltd (hereinafter referred to as Emaga) has full and absolute copyright and other intellectual property rights. All the contents in this specification (including but not limited to, product design concept, design concept, character image, etc.) are protected by law.
- Page 21 other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
