Robus R1230LEDCW-01 Instruction Manual

30W LED PANEL LIGHT,
300X1200MM, WHITE TRIM
R1230LEDCW-01
R1230LEDDW-01
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or
use of this product, consult a competent electrician
Product technical information and specification may change over time without prior notification. For the latest
technical information please visit our web site www.ledgrouprobus.com.au

Specifications

Model No. R1230LEDCW-01
Voltage: 220-240V~50/60Hz
Power: 30W
Lumen: 2800lm
CCT: 4000K
CRI: 80
Beam Angle: 110
o
PF: 0.9
Ta Range: -20°C < ta < +45°C
IP Rating: 20
IK Rating: 06
Safety Class: Class II for the driver
Dimensions: 295mm X 1195mm
Depth: 9mm

Weight:

3.8Kg

Warranty:

5 year

Installation:

Recessed mounted,
Box mounted,
Suspended
Complete with flex and AU plug
Suitable for mounting on normally flammable surface
Minimum distance from illuminated object is 0.5 metre
Driver must never be "hot-plugged" or connected to the
fitting when live.
Doing this may damage the fitting and will void the warranty.
Complies with EN 60598-1, EN 60598-2-2, IEC 62471-2, IEC
62778, IEC 62493, IEC 61347-1, 61347-2-13
The Installation must be carried out by an electrician
LED Group ROBUS Australia
9/210 Queensport Road North
Murarrie
QLD 4172
Australia
Issue 2 080715
R1230LEDDW-01
220-240V~50/60Hz
30W
3150lm
5000K
80
110
o
0.9
-20°C < ta < +45°C
20
06
Class II for the driver
295mm X 1195mm
9mm
3.8Kg
5 year
Recessed mounted,
Box mounted,
Suspended
DANGER - RISK OF FIRE
- Shall not be installed in residential premises
SCI = 100mm MIC = 100mm
SCB = 50mm HCB = 25mm
Tel: +61 73893 1488
Fax: +61 73112 1927
Email: purchases@ledgrouprobus.com.au
Website: www.ledgrouprobus.com.au
Note:
Installation
1. Ensure mains supply is switched off before commencing
work.
2. Remove 300 x 1200mm tile from ceiling.
3. Ensure the area above the fitting is free from obstacle
pipes cable tray etc.
4. Connect plug to AC supply
5. Ensure the connections going to and from the driver
are secure.
6. Place connector, drivers and cable into the ceiling void.
7. Offer luminaire up to the ceiling void and manoeuvre into
final position similar to standard ceiling tile.
8.This product has no user serviceable parts. If any part is
damaged, disconnect from mains and discontinue use.

Safety Instructions

Warning:
Luminaire marked as NON-IC according to ASNZS60598-2.2.
Not suitable for use on residential properties.
DO NOT COVER OR ABUT. Any insulation material must be
positioned at a minimum distance of 100 mm from the fitting.
Caution:
Recessed Luminaires may pose an increased risk of fire
or property damage if not installed according to the
instructions provided.
INSTRUCTION MANUAL

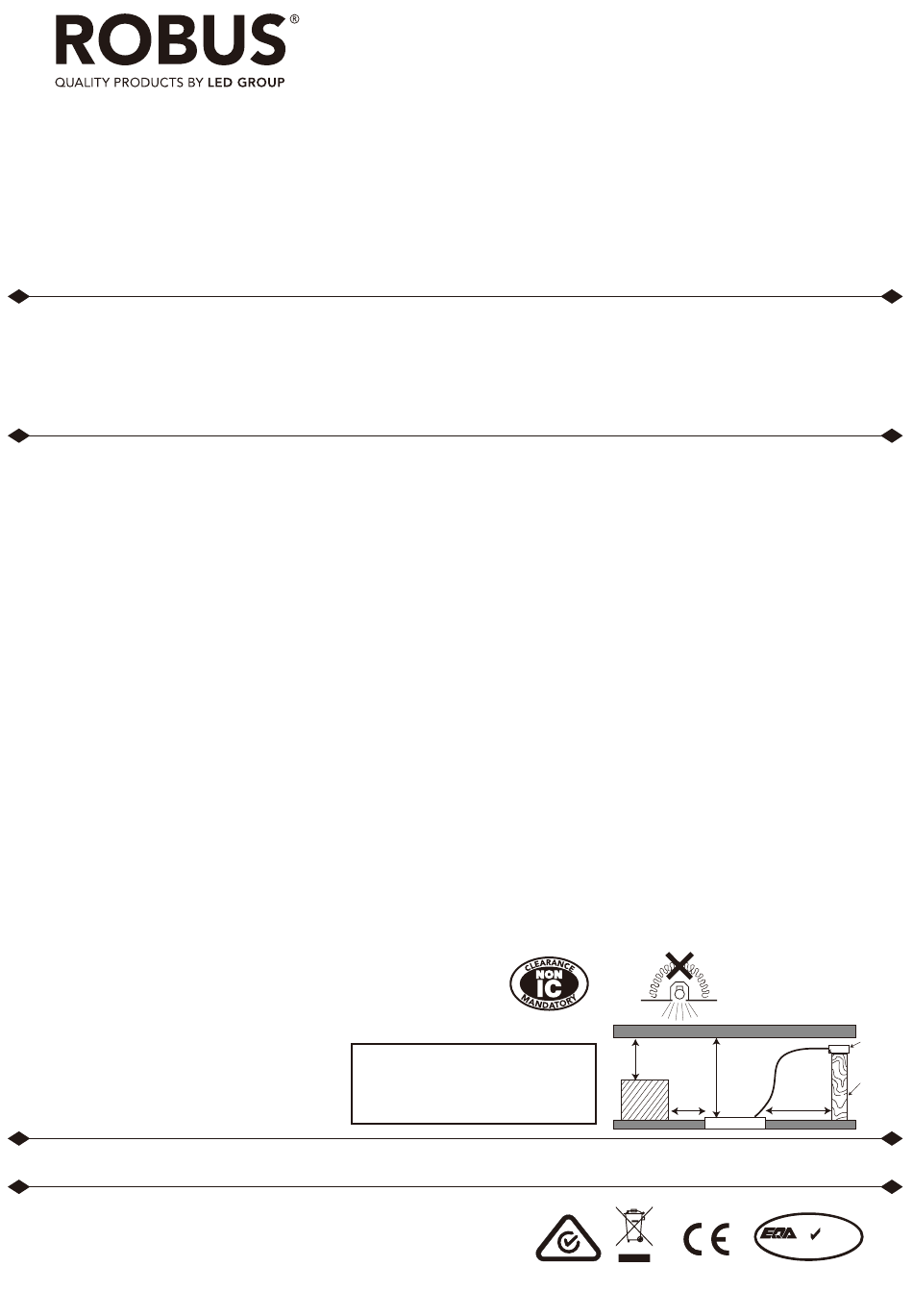

Luminaires not suitable for
covering with thermally
insulating material.
MIC
HCB
SCB
SCI
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Driver
Joist
Page 1
