DX Engineering Anderson Powerpole DXE-PP30 Manual

Features


10 Sets per package - 10 Red housings, 10 Black housings, 20 contacts

Flat wiping contact system

Interchangeable Genderless design

Colored, Modular housings

Polarized housings

Wide product range - From 30 amps through 45 amps

UL94 V-0 housing material

Benefits


Allows for minimal contact resistance at high current, wiping action cleans contact surface during disconnection.

Simplifies assembly requirements.

Allows customized multi-pole configurations with visual color coding to match wires.

Prevents damage to connectors from being mated incorrectly.

Allows versatility to choose product best suited to design requirements.

Provides security in knowledge that the connector chosen meets strict UL flammability ratings.
The difference between the 30 Amp and 45 Amp connectors is the contact type used. The
housings are the same size. The 30 Amp connector is made for wires ranging from 16-12
AWG and the 45 Amp contact is for 14-10 AWG wire.

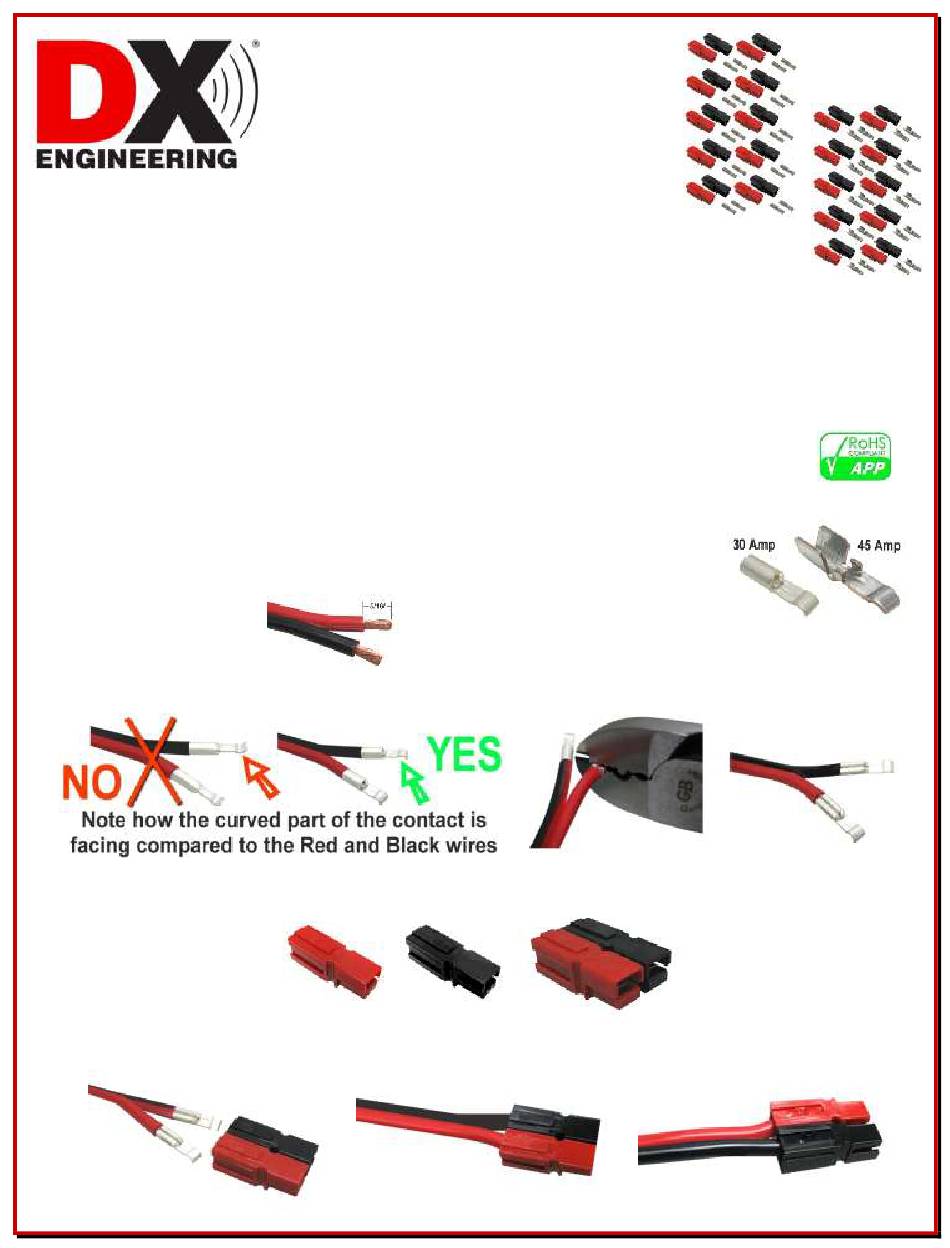

1. Strip the wires 5/16".
2. Ensure sure the contacts are aligned properly. Crimp the contacts using a Powerpole
the crimp tool, do not deform the contacts. Soldering is optional.
3. The housings have built-in interlocking tabs so you can connect them together. Interlock one red housing and
one black housing as shown. Note how the ends of the housings are in the same direction as shown.
4. Insert the contacts into the housings (red or positive to red, black or ground to black) as shown. Make sure the
contacts are facing the proper way. Push them in all the way. When you hear the 'click', the contact is fully
seated in the housing.
Top View
Anderson Powerpole
DXE-PP30 30 Amp
DXE-PP45 45 Amp
DXE-PP-INS Rev 1
Top View
- 1 -
®
Connectors
Bottom view
30 Amp
45 Amp
®
crimp tool. When using
