#104414 CONVERSION FOR XRAY RX8
Using these steps – along with the steps in the starter box manual (not shown here) – to set up the starter
box for the XRAY RX8.

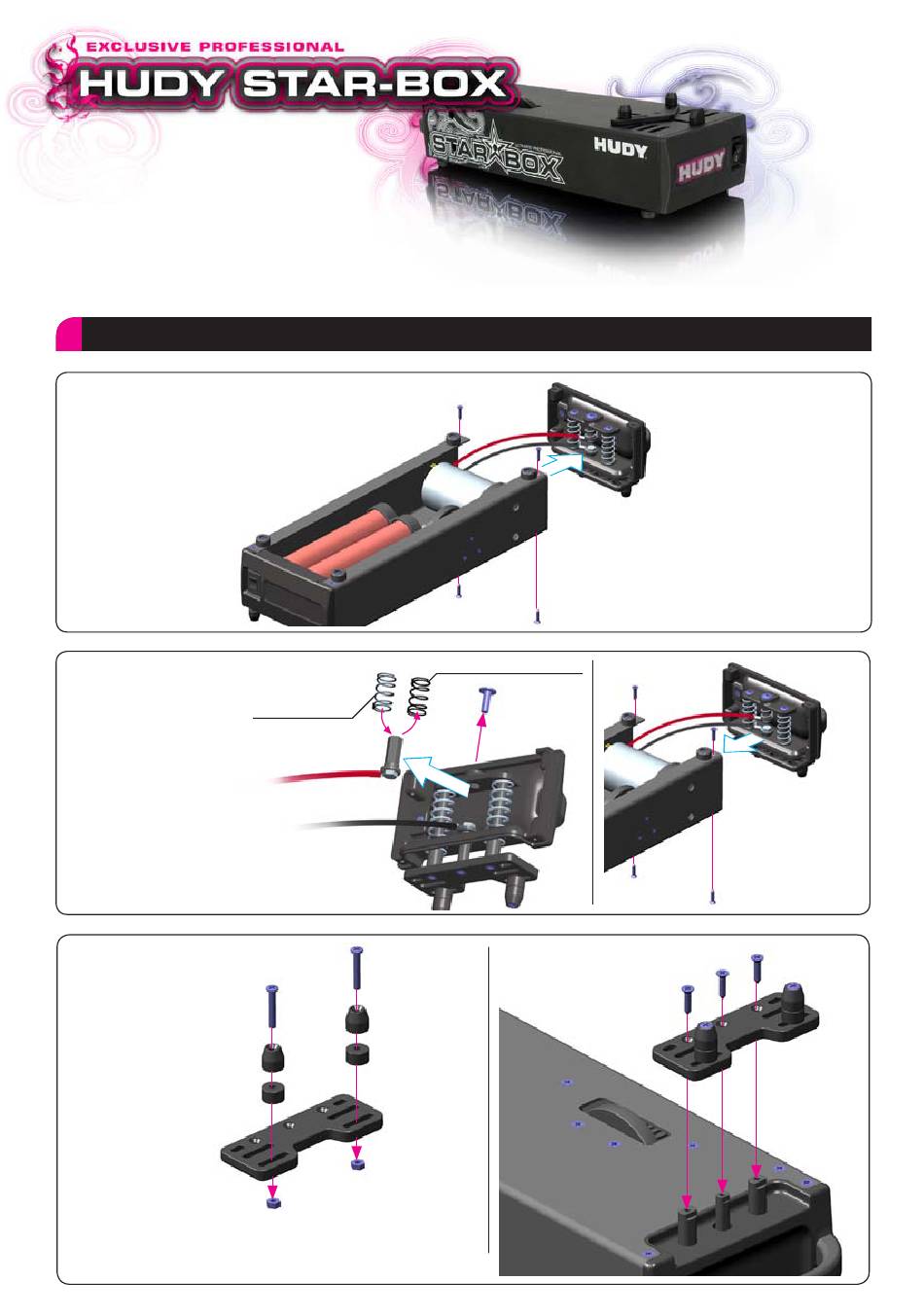

STARTER SPRING CHANGE
Remove the front cover.
Loosen the screw and
remove the composite
spring holder, remove
spring and replace it with
new one from upgrade
package and put back
the composite spring
holder and tighten the
screw again.
Install
bracket
plate
posts
using
M3x20
screws and M3 nuts. Do
not tighten the screws
fully; they will be set
later.
Insert new silver
spring
Remove old black spring
Reattach the rear chassis
bracket plate.
Insert the front
cover back onto
the starter box.
