ASSEMBLY
INSTRUCTION
30 minutes
APPROXIMATE ASSEMBLY TIME
REQUIRED ASSEMBLY TOOL
DESCRIPTION

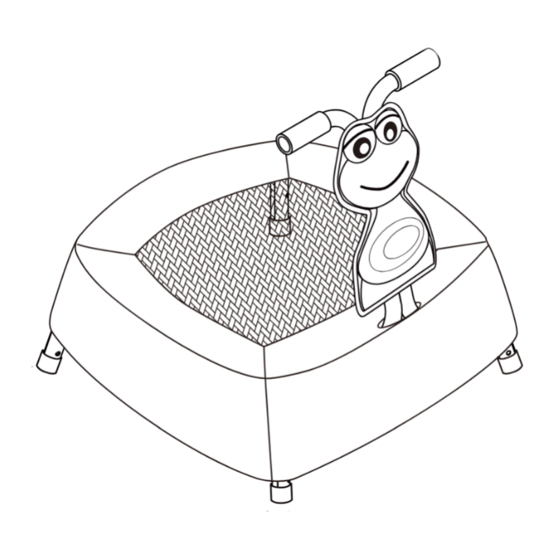

M7TE9
FROG TRAMPOLINE
2 PERSON ASSEMBLY
20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong.
After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or
visit www.sportspowerfit4kids.com

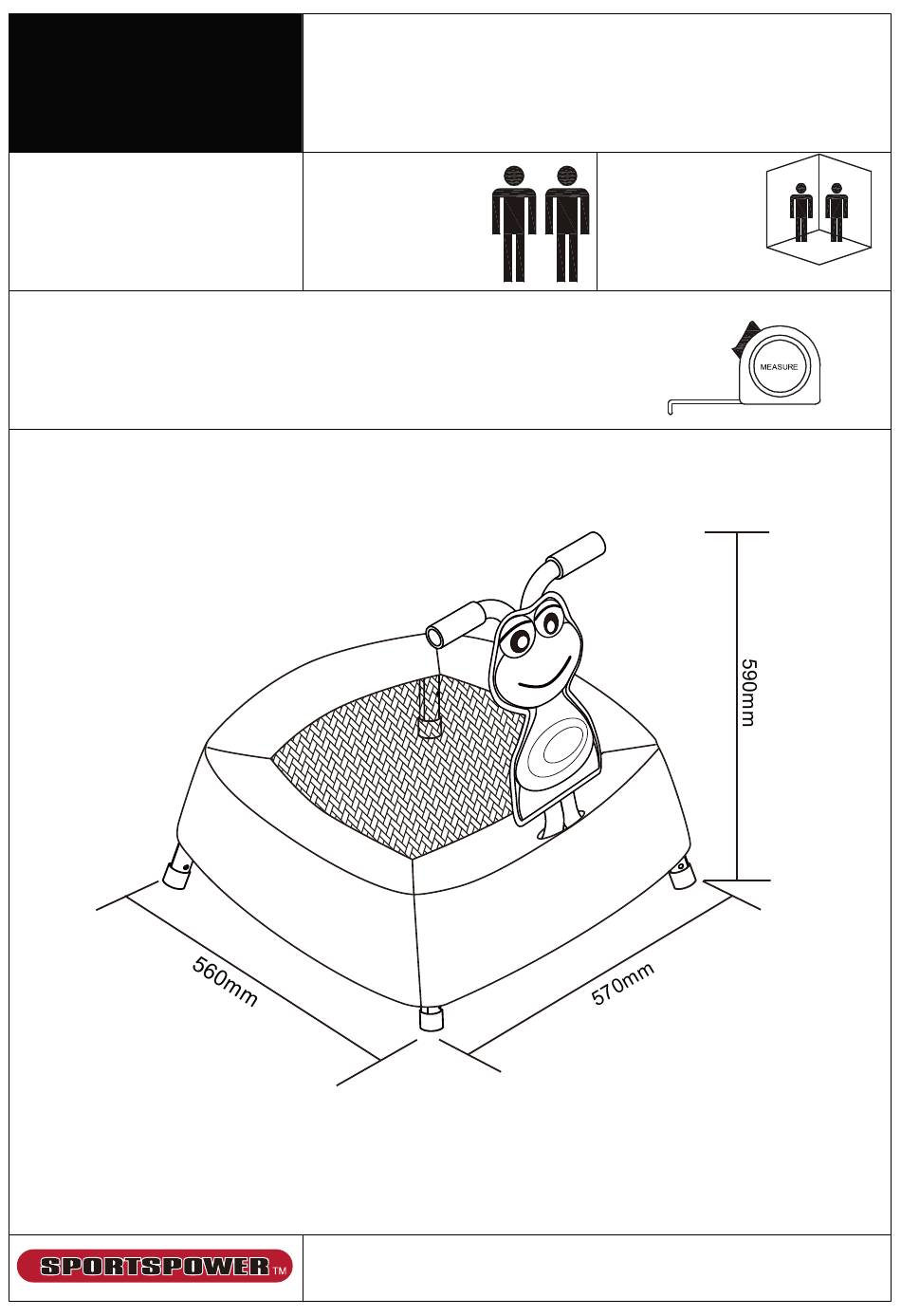

FLOOR AREA
1.5M×1.5M×2M
REQUIRED ASSEMBLY SPACE
PRODUCT WEIGHT 2.5KG, BUILD IN LOCATION
ASSEMBLED DIMENSIONS
4
3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SPORTSPOWER M7TE9
Summary of Contents for SPORTSPOWER M7TE9
- Page 1 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE FLOOR AREA 1.5M×1.5M×2M 30 minutes APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE PRODUCT WEIGHT 2.5KG, BUILD IN LOCATION REQUIRED ASSEMBLY TOOL ASSEMBLED DIMENSIONS 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong.
- Page 2 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Part No. Description Picture U-LEG VIEW PRODUCT U-LEG VIEW PRODUCT S-LEG VIEW PRODUCT S-LEG VIEW PRODUCT HANDLE ARCH VIEW PRODUCT MAT WITH PAD VIEW PRODUCT FROG COVER VIEW PRODUCT ELASTIC CORD VIEW PRODUCT HOOK...
-
Page 3: Hardware List
DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE HARDWARE LIST M6 x 38mm M6 x 58mm Φ6.5 x Φ13 Φ6.5 x Φ13 Short Bolt Bolt Flat Washer Spring Washer Cap Nut VIEW PRODUCT VIEW PRODUCT VIEW PRODUCT VIEW PRODUCT VIEW PRODUCT Spanner... - Page 4 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Top Tips before you start 1.Please check that all parts are in the package before you start the assembly of your product. Once assembled, the product is exempt from our home approval policy. IF ANY PARTS ARE MISSING, PLEASE CALL +44 0330 0904 420.
-
Page 5: Tightening Nuts And Bolts
DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE ASSEMBLY INSTRUCTIONS ■ Before assembly, read and follow these step by step assembly instruction and warnings thoroughly. Failure to do so could result in serious injury or property damage. ■ DO NOT attempt to assemble this product without following the instructions carefully. - Page 6 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 1 Remove all parts from the packaging and lay the frame out in a large open space. 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong. After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or visit www.sportspowerfit4kids.com...
- Page 7 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 2 Attach all legs as shown below. x 8pcs x 16pcs x 8pcs x 8pcs 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong. After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or visit www.sportspowerfit4kids.com...
- Page 8 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 3 Place mat onto the assembled leg frame. 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong. After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or visit www.sportspowerfit4kids.com PAGE 8 OF 16...
- Page 9 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 4 Attach handle arch (5) to S-legs (3 and 4) as shown. x 2pcs x 4pcs x 2pcs x 2pcs 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong. After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or visit www.sportspowerfit4kids.com...
- Page 10 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 5 Position the mat (6) in the centre of the frame and fold up the edges of the mat. Ensure the side with stitching is faced down. Starting at one corner, wrap the elastic cord (8) around the legs and up through the two straps as shown, ensuring that the length of the elastic cord is equal on both sides.
- Page 11 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 6 Once the elastic cord has been fully wrapped around the mat and frame, attach the plastic tube (10) and the hook (9) to the ends of the elastic cord as shown. Hook the elastic ends together and slide the plastic tube(10) over the hook to cover it completely.
- Page 12 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 7 The trampoline mat and frame may need to be re-centered and re-aligned upon hooking the elastic around the trampoline legs due to high tension in the elastic cord. Please ensure that the gap between the mat and frame is equal on all four sides. This is carried out by loosening or tightening each loop where appropriate and ensuring that the elastic cord and hook remains on the underside of the frame.
- Page 13 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 8 Attach the end cap (11) onto the legs. 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong. After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or visit www.sportspowerfit4kids.com PAGE 13 OF 16...
- Page 14 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 9 If the trampoline is not entirely straight after assembly, lift up the leg on one side and press down on the frame until it is straightened. Re-check all the screws to make sure they are securely fastened before use.
- Page 15 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Step 10 Attach the frog cover (7) to the handle arches. 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong. After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or visit www.sportspowerfit4kids.com...
- Page 16 DESCRIPTION ASSEMBLY M7TE9 INSTRUCTION FROG TRAMPOLINE Finished Product SP-19-TR-1023-SD-18001 20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong. After Service Centre (+44) 0330 0904 420, Email support@sportspowerfit4kids.com or visit www.sportspowerfit4kids.com PAGE 16 OF 16...
