- Page 1 Trident Communication Technology ModCom One User Manual Trident Communications Technology, LLC. www.tridentcomtech.com ...
-
Page 2: Table Of Contents
Contents Thank You ............................. 2 Please Read this Reference Guide ....................2 Features ............................2 Charge the Battery ........................3 Battery Extraction ........................4 Connecting Headset to Device ...................... 4 Pairing ............................4 ... -
Page 3: Thank You

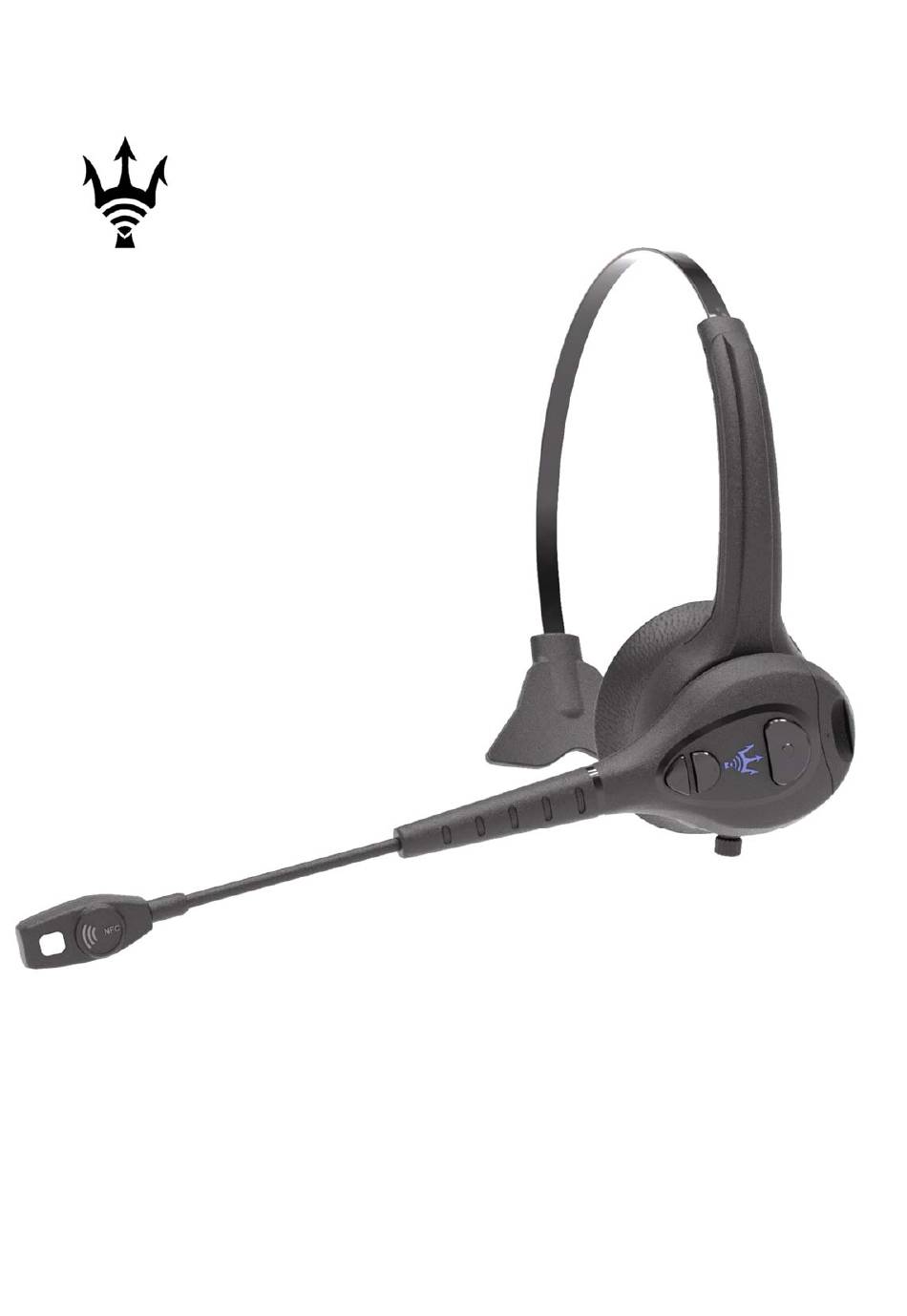

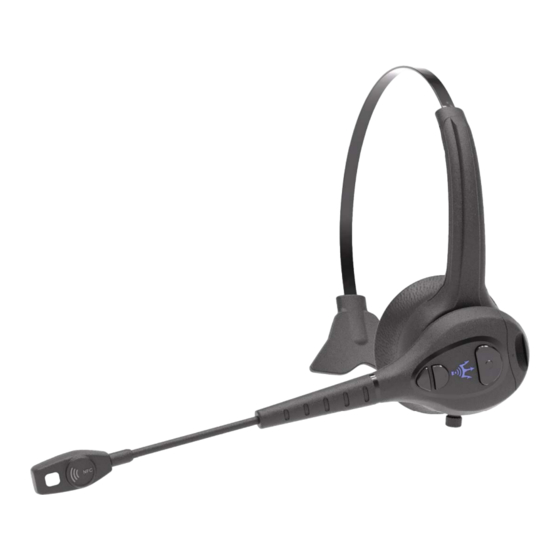

Thank You We appreciate your purchase of the Trident™ ModCom One Bluetooth® Headset. This rugged wireless Headset combines high‐quality audio performance, environmental durability, and lightweight comfort without sacrificing stability during active use. Please Read this Reference Guide Please take the time to follow the instructions in this reference guide carefully. It will help you set up and operate your Headset properly and enjoy its advanced features. Please save this guide for future assistance. Features Part No: MC1 Reference Guide v1.0 2 ... -
Page 4: Charge The Battery
Charge the Battery 1. Connect charging cable to Wall Mount USB adapter and 2‐Bay Charger. 2. Insert Battery into the charger. Charge for 3 hours prior to use. Battery Insertion 1. Rotate Boom 45 degrees to stop position. 2. Insert battery into headset until firmly seated. Part No: MC1 Reference Guide v2.0 3 ... -
Page 5: Battery Extraction
Battery Extraction 1. Pivot Headset Module 45 degrees downward until it stops. 2. Remove Battery from Bluetooth Headset Module. Connecting Headset to Device To use the ModCom One Headset with a Bluetooth Device (or “Host”), such as a mobile computer or industrial tablet, you must first establish a wireless connection between the Headset and the intended Device. This process is called “Pairing”. Pairing The Headset may be paired with Bluetooth devices in the following three ways: 1. Touch‐to‐Pair with devices supporting an NFC Connection. 2. Scan‐to‐Pair with devices supporting Bluetooth Mac Address Scanning. 3. Standard Bluetooth pairing where the headset is discovered by the Host. Headset must be within close proximity of the host to complete pairing. To initiate pairing, Headset must be powered off. If the headset is on, turn off by pressing the Multi‐Function Button (MFB) for 2 seconds. Initiate headset pairing by pressing the Multi‐Function Button for 7 seconds until you hear “Pairing” and the LED alternately flashes red and blue. 1. For Touch‐to‐Pair, touch Headset NFC tag, located in the microphone assembly, to NFC tag of Host. 2. For Scan‐to‐Pair, activate Host scanning function and scan Headset Bluetooth Mac Address Barcode Label. Part No: MC1 Reference Guide v2.0 4 ... -
Page 6: Understanding Led Lights And Tones
3. For Standard Bluetooth pairing, use the Host’s Bluetooth search and pairing functionality (refer to the Host documentation if necessary) and select “ModCom One”. If necessary, enter four zeros (0000) for the passcode and accept connection. Once successfully paired, you will hear “Pairing Successful” and the LED will flash blue, once every two seconds indicating the Headset and Host are connected. The Headset may be paired to a new Host using the above procedure. Note that this will undo the pairing to the current Host. Once the Headset and Host have been paired, the Headset and Host will automatically reconnect the next time they are both powered on and in close proximity to each other Understanding LED Lights and Tones Primary Features Headset Control LED Light Tones Pairing Powered Off, Press MFB for 7 Blue and Red “Pairing” Seconds Alternate Flash Pairing Complete Automatic No LED Output “Pairing Successful” Power On Press MFB for 2 Seconds Blue Flash 3 Times “Power On” Power Off Press MFB for 2 Seconds Red Flash 3 Times “Power Off” Volume Press Volume + or Volume ‐ to No LED Output < Increase Volume Increase or Decrease Volume > ... -
Page 7: Position The Boom
Last Number Redial No LED Output Long Low Press Volume and Volume – for 0.5 Seconds Voice Activation Double Click MFB No LED Output One Short Position the Boom Do not rotate the boom beyond the stop point. *Applies to Mono and Binaural Model. The Behind the Neck model has only left side boom placement. Adjust Headband The headband can be squeezed for a tighter or a looser fit to the head. The stainless steel head band will click as it is lengthened or shortened into a comfortable position. When adjusting the headband: Position the ear cushion in the center of the ear. Position the T‐Bar above the ear, half way between the top of the ear and the top of the head. Part No: MC1 Reference Guide v2.0 6 ... -
Page 8: Headband Disassembly
Headband Disassembly 1. Loosen the Headband Set Screw Counterclockwise 2. Remove Bluetooth Headset Module from Headband Module Part No: MC1 Reference Guide v2.0 7 ... -
Page 9: Install Windscreen And Ear Cushion
Install Windscreen and Ear Cushion Microphone Orientation Patents US Patent: 9,813,799, D760,689, D76090, D755,122, and D749,042 Part No: MC1 Reference Guide v2.0 8 ... -
Page 10: Operating Specifications
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Trident™ is under license. Other trademarks and trade names are those of their respective owners. Operating Specifications The ModCom One Bluetooth Headset operates in the Bluetooth Band of 2.402 ~ 2.480 GHz with an RF Output Power of 10dBm. Cleaning and Maintenance To maintain the ModCom One Headset we suggest the following guidelines: Do not expose the Headset to harsh chemicals or cleaning agents. The Battery must be fully inserted and locked into place in order for it to become IP67 Waterproof. Do NOT immerse the Headset in water beyond 3 feet (1 meter) for beyond 30 minutes per IP‐67 Specifications. If the Headset becomes dirty, wipe it with a soft damp cloth. Do not use soap, cleaning fluids or chemicals. Keep dust, dirt and debris out of the Headset Battery Slot and the Battery Charger Slots. ... -
Page 11: Troubleshooting
Troubleshooting Operation Problem Possible Solution Operating Headset will not Turn On. Make sure Battery is fully seated in Headset. Make sure Battery is charged by placing Battery in Battery Charger and following the Battery charging instructions. Pairing Does not Pair. Headset should be off when beginning pairing process. Make sure intended Bluetooth Device is on. Make sure Headset is within 12 inches of intended Bluetooth Device. Make sure you select “ModCom One” on your Bluetooth Device search menu. Headset appears to be paired but Headset may be connected with different Bluetooth cannot communicate with Device. intended Bluetooth Device. 1. Make sure intended Bluetooth Device is within 12 inches of Headset. 2. Make sure all other non‐intended Bluetooth Devices are 6 feet away from Headset. 3. Turn off Headset and start pairing process again. Charging Battery Battery does not seat properly in Rotate Battery and re‐insert into Charging Slot. the Charging Slot. ... -
Page 12: Battery Safety Guidelines
Do not leave or store the Battery in or near areas that might get very hot, such as in a parked vehicle, near a radiator or other heat source. Do not place Battery into a microwave oven, conventional oven, toaster oven, washer, dryer, dishwasher, or other mechanical devices. Battery usage by children should be supervised. Please follow local regulations to promptly dispose of used re‐chargeable Batteries. Do not dispose of Batteries in fire. Seek medical advice immediately if a Battery has been swallowed. In the event of a Battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact is made, wash the affected area with large amounts of water and seek medical advice. If you suspect damage to your Headset or Battery, contact your Distributor Customer Support to arrange for inspection. Warranty and Customer Support For the complete Trident Communication Technology, LLC. hardware product warranty statement, visit: http://www.tridentcomtech.com/warranty If you have problem using your equipment, contact Trident Customer Support at http://www.tridentcomtec.com/support For the latest version of this User Manual visit: http://www.tridentcomtech.com/manuals Part No: MC1 Reference Guide v2.0 11 ... -
Page 13: Safety And Regulatory Information
(such as grain, dust, or metal powders). • The ModCom One Headset does not require • Contains small parts which can be a choking scheduled cleaning. Should cleaning be hazard. necessary, simply wipe the outside surfaces • Not suitable for children under age 3. with a soft damp cloth. • This product contains magnets which can be harmful to pacemakers, or similar medical Regulatory Information devices. All Trident Communication Technology, LLC.™ • To reduce the risk of fire or electrical shock, do devices are designed to be compliant with rules not expose the product to rain or moisture. and regulations in the locations they are sold • As with any electronic products, use care not and will be labeled as required. This regulatory to spill liquids into any part of the system. information applies to Model number MC1‐BT. Liquids can cause a failure and/or a fire hazard. • Do not place any naked flame sources, such as International lighted candles, on or near the apparatus. This device complies with internationally • Use caution when using your headset while recognized standards covering human exposure ... - Page 14 Romania, Slovak Republic, Slovenia, Spain, • Connect the Headset Charger to an outlet on Sweden, Switzerland and the United Kingdom. a different circuit than the one to which the receiver is connected. CE NOTICE TO USERS • Consult the dealer or an experienced radio/TV Trident Communication Technology, LLC.™ technician for help. hereby declares that this product is in Changes or modifications not expressly compliance with the essential requirements and approved by Trident Communication other relevant provisions EU RED ‐ DIRECTIVE Technology, LLC.™ could void the user’s 2014/53/EU & EU‐LOW VOLTAGE DIRECTIVE authority to operate this equipment. 2014/35/EU and all other applicable EU directive requirements. In USA and Canada: http://www.tridentcomtech.com/CE_Declar This device complies with part 15 of the FCC rules and Industry Canada license‐exempt RSS ation standard(s). Operation is subject to the following two conditions: FCC NOTICE TO USERS 1. This device may not cause harmful This device complies with FCC and Industry interference. Canada RSS‐102 RF radiation exposure limits set 2. This device must accept any interference forth for general population. It must not be received, including interference that may co‐located or be operating in conjunction with cause undesired operation. ...
- Page 15 ...
