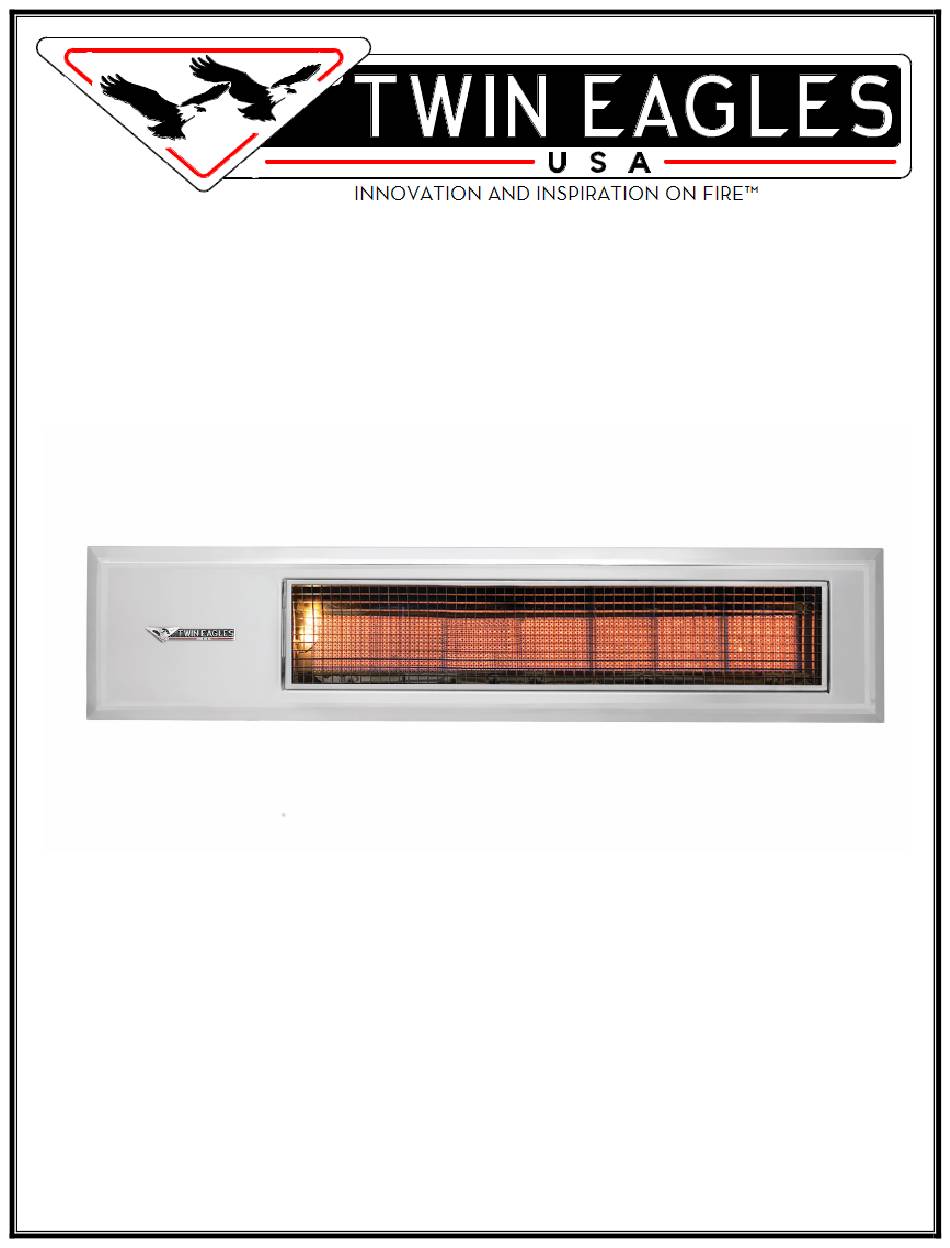

- Page 1 OUTDOOR GAS INFRARED PATIO HEATER INSTALLATION USE AND CARE MANUAL MODEL: TEGH48-B P/N: 24254B 12/17...
- Page 2 A special message… Congratulations on your purchase of AGLES outdoor gas infrared heater. We have designed this heater to provide you and your family with many years of great comfort heating experience. In addition to its Style, Performance and High Quality, this heater is built with pride in the U.S.A.
- Page 3 IMPORTANT SAFETY INFORMATION WARNING! Read this manual carefully and completely before using your appliance to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. AVERTISSEMENT! Lire ce manuel avec soin et en entier avant l’utilisation de votre barbecue afin d’en assurer un fonctionnement, une installation et un entretien adéquats et réduire le risque d’incendie, de brûlures et d’autres blessures.
-
Page 4: Table Of Contents
TABLE OF CONTENTS GAS INFRARED HEATER FEATURES / GETTING STARTED……………………………………………... GAS INSTALLATION REQUIREMENTS………………………………………………………………………. LEAK TEST…………….……………………………………………………………………………....SELECTING MOUNTING LOCATION………………………………………………………………………….. MOUNTING CLEARANCES……………………………………………………………………………....ELECTRICAL INSTRUCTIONS…………………………………………………………………………………. OPERATING INSTRUCTIONS…………………………………………………………………………………... PREVENTIVE MAINTENANCE…………………………………………………………………………………. TROUBLESHOOTING GUIDE…………………………………………………………………………………... EXPLODED VIEW……………………………………………………………………………………………….. REPLACEMENT PARTS LIST…………………………………………………………………………………... LIMITED PRODUCT WARRANTY……………………………………………………………………………... WARRANTY REGISTRATION CARD... -
Page 5: Gas Infrared Heater Features / Getting Started
INFRARED HEATER FEATURES Twin Eagles Gas Infrared Heater extends the outdoor activities during the cool days of fall and through the winter seasons providing a comfortable warm and inviting environment for your family and friends. Some of the Twin Eagles Gas Infrared Heater features are: •... -
Page 6: Gas Installation Requirements
GAS INSTALLATION REQUIREMENTS Each patio heater is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either natural gas or LP gas and make sure that the marking on the nameplate (rating plate) matches the gas being supplied to the heater. -
Page 7: Leak Test
Check to ensure that the flexible hose does not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by Twin Eagles. ... -
Page 8: Selecting Mounting Location
Combustible means material that can quickly catch fire if it comes in contact with sparks or fire. The Twin Eagles heater is a remote controlled unit that strictly requires that each heater must be installed such that the “MINIMUM CLEARANCE TO COMBUSTIBLES” are always met and maintained. - Page 9 7. PATIO DESIGN CONSIDERATION a. Heater placement is critical for effective and efficient patio heating. If heaters are placed too close together or mounted too low, people become uncomfortable. If the heaters are placed too far apart on a breezy or wind-swept patio area, the patio may never get warm. Gas Infrared heaters work best if they are placed in areas of the greatest heat loss, such as the open side of a semi-protected patio area.
- Page 10 8. GAS INLET • The gas inlet of the heater is located on the left side of the unit by design. • The heater is NOT to be mounted to where the gas inlet is on the right side as it may cause damage to the heater and doing so will void the product warranty.
-
Page 11: Mounting Clearances
MOUNTING CLEARANCES Each heater must be installed such that the following “Minimum Clearance to Combustibles’ are maintained. Combustible materials include wood, compressed paper, plant fibers, plastic, or other materials capable of being ignited and burned. Such materials shall be considered combustible even though flame-proofed, fire retardant treated or plastered. - Page 12 • Do not locate either the gas or electrical supply line directly above the flue outlet of the heater. The heater must be installed in a location so that it is readily accessible for servicing and have no restriction of airflow for combustion air and exhaust flue. ! IMPORTANT ! ALL AREAS AROUND THE HEATER MUST BE CLEARED OF ANY COMBUSTIBLE MATERIALS.
-
Page 13: Electrical Instructions
Push the ON button to verify that the red indicator turns on. Then place the face plate back on with the Twin Eagles logo at the bottom near the LO button . The receiver is powered by four 1.5V AA batteries located in a battery pack inside the heater component compartment. -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS INITIAL START UP: 1. Before you start your heater examine the heater installation to determine that: • Areas immediately around heater including the air inlet and flue areas are free from obstructions. • Physical support of the heater is safe, secure, adequate and sound. •... - Page 15 NOTE: The ceramics portion of the infrared burner should glow bright within 60 seconds and may be difficult to see in bright sunlight. ! WARNING ! Never attempt to manually light the burner with a match or other source of flame. Twin Eagles heater utilizes an automatic lighting ignition. e. HI – LOW SETTING a.
-
Page 16: Preventive Maintenance
TWIN EAGLES products have been tested in saline solutions, highly chlorinated solutions and have been tested against exposure to highly acidic foods. The test results proved the type 304 stainless steel can withstand exposure over prolonged periods of time. -
Page 17: Troubleshooting Guide
TROUBLE SHOOTING GUIDE NEVER attempt to service the heater without disconnecting or shutting OFF its power and gas supply from the source. Important Notes: a) After the initial usage it is normal to see white smoke come out the back. This eventually will go away and it doesn’t affect the performance of the heater. -
Page 18: Exploded View
EXPLODED VIEW... -
Page 19: Replacement Parts List
Item Part Part Description Number Number S13351 Infrared Burner S21965 Face Panel S21961Y Egg Crate Assembly S13203 Emblem, Twin Eagles S14160 Tinnerman Barrel Clip S13347 Pilot S21914 Bracket, Igniter S13357 Rubber Boot S13348 Pilot, Orifice 0.012 LP S13349 Pilot, Orifice 0.018 NG... -
Page 20: Limited Product Warranty
800-789-2206. Be prepared to furnish the following information: Purchaser’s name, model and serial number of the grill, date of purchase and the accurate description of the problem. Twin Eagles will not pay for service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request and making the grill accessible for service. - Page 21 HOW TO OBTAIN SERVICE For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789-2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13259 East 166 Street Cerritos, CA 90703 Visit us at http://twineaglesgrills.com/...
- Page 22 Here Place Postage Here Customer Service ATTN: Warranty Department 13259 East 166 Street Cerritos, Ca 90703 Fax No. 562 802-3391...
