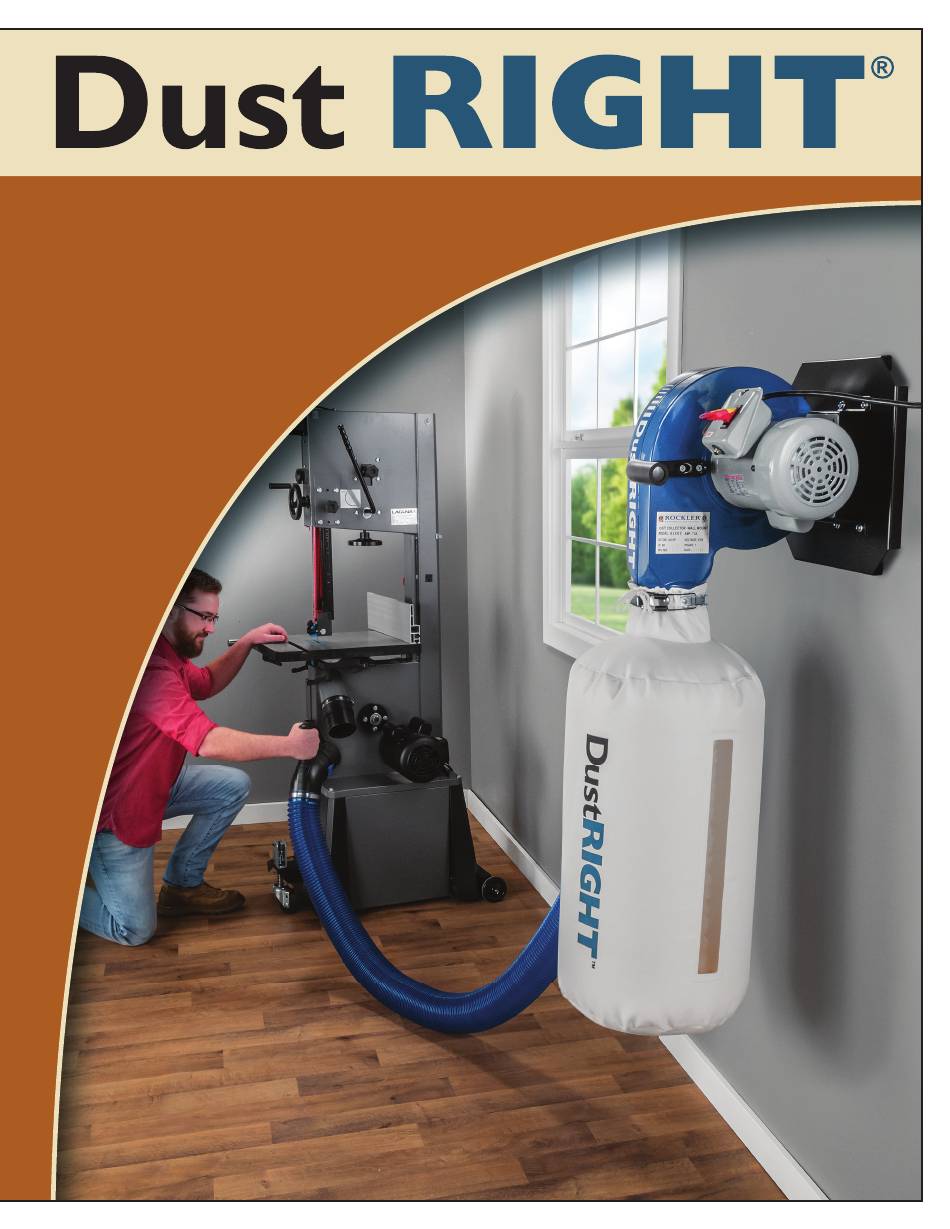

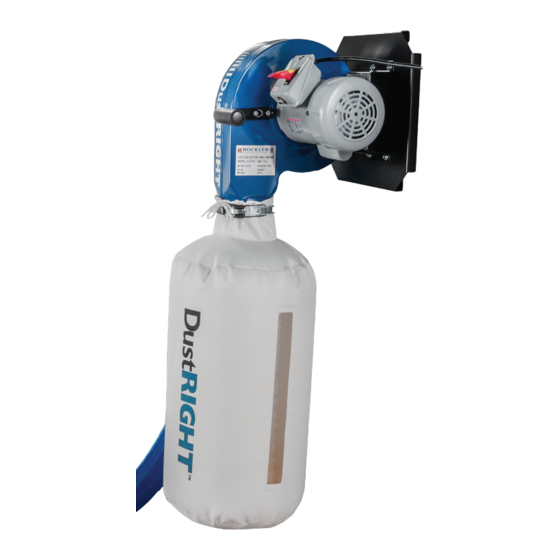

- Page 1 Wall Mount Dust Collector - 650 CFM Instructions Effective Febuary 2018 Review full instruction manual prior to use for important safety information. Always check Rockler.com to confi rm that you are using the most recent manual version for your product.
- Page 2 This product is designed for specific applications as defined in the instructions and should not be modified and/or used for any other applications. Before using the 650 CFM Wall Mount Dust Collector, read, understand and follow all instructions and safety information provided.
- Page 3 PRODUCT SPECIFIC SAFETY WARNINGS > Do NOT use this Dust Collection System near flammable or > Do NOT use with damaged cord, plug or other parts. Do NOT combustible liquids, gases, gasoline or other fuels, lighter use your Dust Collection System if it is missing parts or has fluid, cleaners, oil-based paints, natural gas, hydrogen, or been dropped, damaged, left outdoors or dropped into water.
- Page 4 PARTS LIST Quantity Base Moter Assembly Motor Bracket Bag Clamp Handle 1/4"-20 x 1" L Flathead Screw 1/4"-20 x 1/2" L Flanged Hex Head Screw 10 1/4"-20 Nut 11 Z-Bracket 12 #10 x 1 ⁄ " Wood Screws 13 Hex Wrench (Not Shown)
- Page 5 Fig. 2. 2. Measure the distance between the two wall studs at the 9. Fit the Dust Right ® Wall Mount Dust Collector onto the desired location and cut two lengths of 2 x 4 material matching Z-Bracket (11), making sure the bracket is between the that distance.
- Page 6 Fig. 3. but don’t overtighten. Fig. 4. 4. Place one of the cleats at the desired mounting height, and 8. Fit the Dust Right ® Wall Mount Dust Collector onto the use a level to make sure it’s straight.
-
Page 7: Grounding Instructions
Cover of grounded outlet box Grounding Plug Fig. 5 Grounding Instructions • Check with a qualified electrician or service-person if you The type of electrical plug and receptacle are in doubt as to whether the tool is properly grounded. differs from country to country. •... - Page 8 58860 Distributed by Rockler Companies, Inc. Rev 02/18 Medina, Mn 55340...
