DSC WS4913 Series Installation And Operating Instruction

WS4913 Series Wireless

Carbon Monoxide Alarm

Installation and Operating Instruction
Read this instruction sheet thoroughly before installation and use of
the WS4913 wireless carbon monoxide alarm
Introduction
The WS4913 is a wireless electrochemical Carbon Monoxide alarm ,
which is effective for detecting any buildup of carbon monoxide , also
known as CO gas, in your home or office. The features of your CO alarm
includes:
(1) Easy to install.
(2) Monitoring for carbon monoxide in a continuous manner.
(3) Giving a loud alarm (85 dB) when it detects a buildup of carbon
monoxide.
(4) Having a Test button for you to test the CO alarm anytime.
(5) Self-diagnostic testing its operative function continuously.
(6) Complying the requirements of UL Standard 2034, 2075, UL Canada
ULC and EU standard EN50291.
Trouble Singal
Operation
The green LED flashes approx. once in 60 seconds , which means the unit
is receiving power and also indicates it is sensing carbon monoxide level in
the air.
CO alarm
The CO alarm unit will go into alarm when the CO concentration level
around the area exceeds the 'alarm' threshold, During an alarm, the red
LED light flashes rapidly and buzzer sounds with repeating 4 quick beeps
and pause 5 seconds and then 4 quick beeps.
Tamper
The removal of the CO alarm from the mounting plate initiates a 'tamper'
transmission. The horn chirps once in a minute and the yellow LED is
steadily on until the unit is mounted back to the plate.
Wireless Transmissions
Battery:
The WS4913 is powered by a 3V DC lithium
▲WARNING
:
Use only battery specified as above mentioned.
Use of a different battery may have a detrimental effect on alarm
operation.
Installing/Replacing battery:
(1) Open the battery cover to expose the battery compartment..
(2) Remove the old battery and properly dispose of them as recommended
by the battery manufacturer.
(3) Note the polarities of the battery are correctly installed as per the
polarity marking indicated on two sides of the battery cover,make
sure to carefully seat the red battery warning flag in the recess of the
battery compartment.
(4) Gently close the battery cover. The battery cover of CO alarm will not
close if battery is not properly installed.
Power / Alarm Singal
Test / Reset Button
battery.
Battery Compartment
▲Caution:
Constant exposures to high or low temperatures or
high humidity may reduce battery life.
The low battery threshold is set so the battery will provide no less than 30
days of operation and at that point the CO alarm will send a 'low battery'
signal. If the battery is low ,horn will 'chirp' once every 60 seconds with
yellow LED flash until battery failure. Please replace the battery asap
before battery power is completely exhausted.
▲Caution:
Constan exposures to high or low temperatures or high humidity may
reduce battery life.
The low battery threshold is set so the battery will provide no less than 30
days of operation and at that point the CO alarm will send a 'low battery'
signal. If the battery is low ,horn will 'chirp' once every 60 seconds with
yellow LED flash until battery failure. Please replace the battery asap
before battery power is completely exhausted.

Installation Instructions

Locations to install your CO alarm
Since CO gas moves freely in the air, the suggested location is in or as
near as possible to sleeping areas of the home. The human body is most
vulnerable to the effects of CO gas during sleeping hours. For maximum
protection, a CO alarm should be located outside primary sleeping areas
or on each level of your home. In the figure 1 below, are suggested
locations in the home. The electronic sensor detects carbon monoxide,
measures the concentration and sounds a loud alarm before a potentially
harmful level is reached.

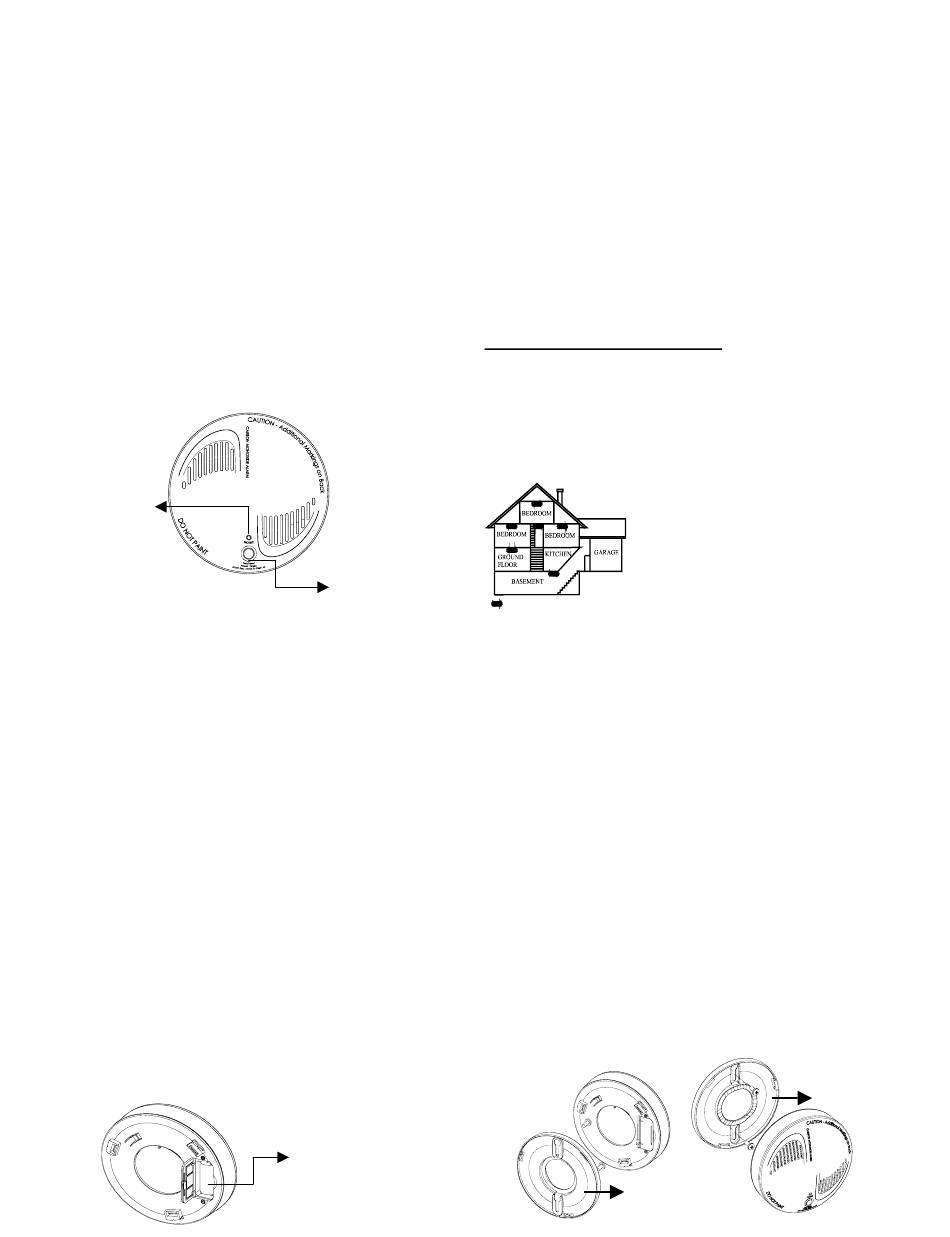

Figure 1:Location for placing CO
Smoke alarms for minimum security
Do not place the CO alarm in the following areas:
(a) Where the temperature may drop below 40℉ (4.4℃) or exceed
100℉ (37.8℃)
(b) Near paint thinner fumes
(c) Within 5 feet (1.5 meter) of open flame appliances such as furnaces,
stoves and fireplaces
(d) In exhaust streams from gas engines, vents, flues or chimneys
(e) Do not place in close proximity to an automobile exhaust pipe; this
will damage the Alarm
Installing your CO alarm
Your WS4913 CO alarm is easy to install to protect you and your family in
your home, cottage, cabin and office.
To install the CO alarm (See figure 2 as below) :
1. At the place where you are going to install the alarm, draw a horizontal
line six (6) inches long.
2. Remove the mounting bracket from your unit by rotating it
counterclockwise.
3. Place the bracket so that the two longest hole slots are aligned on the
line. In each of keyhole slots, draw a mark to locate a mounting plug
and screw.
4. Remove the bracket.
5. Using a 3/16-inch (5mm) drill bit, drill two holes at the marks and insert
wall plugs.
6. Using the two screws and wall plugs (all supplied ), attach the bracket
to the wall.
7. Line up the side slot of the bracket and the alarm. Push the alarm onto
the mounting bracket and turn it clockwise to fix it into place. Pull
outward on the alarm to make sure it is securely attached to the
mounting bracket.
Backplate
1
alarm for A multi-floor
Backplate
