Summary of Contents for TASHI MT430
- Page 1 Unitech Group MT430 User Manual and Installation Guide Version：1.0 2018/3/27 TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 2: Table Of Contents
CHAPTER 4 ............................. 21 GETTING STARTED ..........................21 Connect the power supply ....................21 Using the MT430 for the first time ..................21 TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) - Page 3 Fingerprint identification test (optional) ................. 26 APPENDIX A ............................30 SYSTEM SPECIFICATIONS ....................... 30 APPENDIX B ............................32 WORLDWIDE SUPPORT ........................32 TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 4: About This Manual
Unitech Group About This Manual Thank you for purchasing the TASHI product. This manual explains how to install, operate and maintain our product. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. - Page 5 Canada. European Conformity Statement TASHI smartech co., Ltd here with declares that the TASHI product is in compliance with the essential requirements and all other provisions of the R&TTE 1999/5/EC directive, the EMC 2004/108/EC directive and the Low Voltage 2006/95/EC directive.
- Page 6 : https://portal.unitech.eu/public/WEEE TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
- Page 7 備考3.〝－〞係指該項限用物質為排除項目。 Note 3：The “−” indicates that the restricted substance corresponds to the exemption. Taiwan NCC Warning Statement 低功率電波輻射性電機管理辦法 第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更 頻率、加大功率或變更原設計之特性及功能。 TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 8: Led Information
*For applicable temperature conditions, please refer to the specification of each product. Adapter Notice Please do not leave the power adapter in the socket when it is not connected to your TASHI product for charging. Please remove the power adapter when the battery is fully recharged. -
Page 9: Hearing Damage Warning
Warranty Policy The following items covered under the TASHI Limited Warranty are free from defects during normal use: The warranty period is varied from each country. Please consult with your supplier or TASHI local office for actual length of warranty period to your purchased product. -
Page 10: Chapter 1
Qualcomm platform, continuing to serve as a high end T&A terminals for Office and Home sectors in TASHI product line. To undertake the role set in those earlier generation products, MT430 is designed as a multi-functional terminal to perform access control, time attendance, security, and intercom. -
Page 11: Chapter 2
Unitech Group Chapter 2 Package and Interface Overview Packing Please make sure the following contents are in the MT430 box. If anything appears missing or damaged, please contact the TASHI representatives. MT430 QRG Paper Note Power Supplier Finger Print & Reader Model or Reader only Model... -
Page 12: Interface Of Standard Model
Different types of interface. Lens LED Light LED Indicator Speaker Speaker Screen Function Keys Numeric Keypad Wireless RF Module Microphone ● TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) -

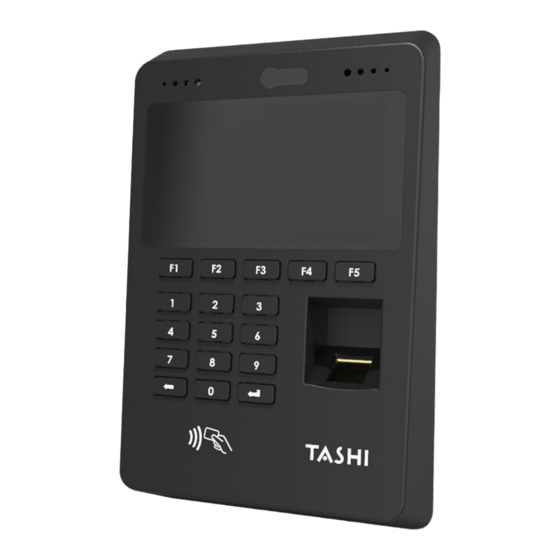

Page 13: Interface Of Fingerprint Model
Different types of interface. Lens LED Light LED Indicator Speaker Speaker Screen Function Keys Fingerprint Numeric Keypad Wireless RF Module Microphone ● TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) -
Page 14: Other Function Keys Schematic
Unitech Group Other function keys schematic Different types of interface. Function keys different icon Function keys different icon TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) - Page 15 Unitech Group Function keys different icon TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 16: Terminal Block
RJ45 Relay Connector Terminal Block The MT430 provides a 10-pin terminal block plug for input/output signals. Refer to the following illustration and insert the terminal block plug into the terminal block socket on the back side of the MT430. Terminal Block (1X10) -
Page 17: Relay Pin Definition
Unitech Group Relay pin definition Relay Connector (1X3) Color Function Pin1 Black Relay_NC Pin2 White Relay_C Pin↑ Brown Relay_NO TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) -
Page 18: Chapter 3
Chapter 3 Installation Installation This section explains how to install the MT430. 1. Please lock the copper posts in the circle as below. 2. Then lock the wall mount (optional) to the in wall box TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com... - Page 19 Unitech Group 3. Finally hook the MT430 into the ditch as the red circle below and lock it to the wall mount. TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 20: Recommended Installation Height
Unitech Group Recommended installation height 146CM Ground TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) -
Page 21: Chapter 4
Connect the power supply Use the following instructions to connect the power supply to the MT430: Plug the power adapter cable into the MT430's DC input jack, then connect the other end of the power adapter to a power outlet. -
Page 22: Set Date And Time
Unitech Group Select the application: Set date and time Applications: Settings Click on the date and time: TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) - Page 23 Unitech Group Make date/time/time zone settings: TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 24: Chapter 5
Click to open the test program, select the card format and press START on the right to start the wireless RF card reading test. TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) -
Page 25: Camera Test
Unitech Group Camera Test Find the camera test program Click to open the test program to take a photo shoot test. TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) -
Page 26: Fingerprint Identification Test (Optional)
VERIFY: Verification fingerprint DELETE: Delete fingerprint Create a fingerprint: After pressing ENROLL, enter the number of the fingerprint (any number) TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.) - Page 27 Fingerprint TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
- Page 28 Verifying the fingerprint: Press VERIFY to enter the code for the fingerprint. Assuming that 888 is entered, press VERIFY again to verify that the fingerprint is correct. Fingerprint Verification failed: Verification successful: TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
- Page 29 Delete fingerprint: After pressing DELETE, input the fingerprint number to be deleted. Press DELETE again to return to the main screen to delete the fingerprint. TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 30: System Specifications
Unitech Group Appendix A System Specifications The following table shows the MT430 system specifications: Qualcomm APQ8016 Memory RAM: 2GB DDR3 ROM: 16GB eMMC Android 6.0 4.7”Color TFT-LCD (720x 1280), With touch screen/backlight function Button number key Function keys 5 Enter key; Return key... - Page 31 -10℃ ~ 50℃ (14ºF ~ 122ºF) temperature Storage temperature -20℃ ~ 60℃ (-4ºF ~ 140ºF) Relative Humidity 5~95% non-condensed. IP Rating IP54 (front panel) TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
-
Page 32: Worldwide Support
Unitech Japan http://jp.ute.com http://us.ute.com Unitech America http://can.ute.com Unitech Europe http://eu.ute.com In addition, you could contact TASHI Smartech by TASHI@tashi.ute.com TASHI Smartech Co LTD., TASHI website: www.tashi.ute.com 3F, No. 188, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan (R.O.C.)
