Summary of Contents for Sekurus SU538S
-

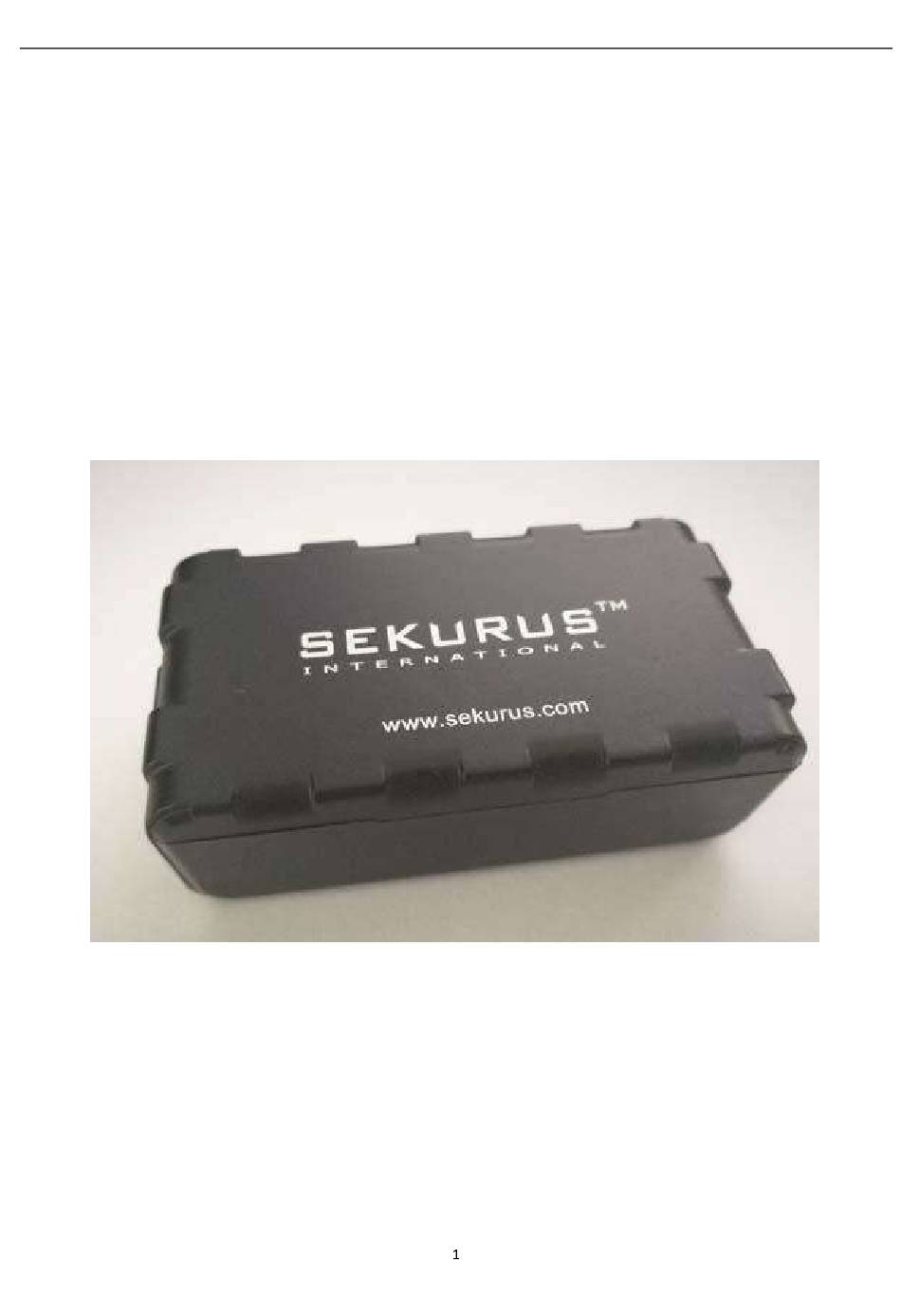

Page 1: User Manual
User Manual (SU538S) This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker. - Page 3 Name Assist Monitoring System SekurIt Type SU538S Size L77*W41*H27mm Long stand by device low power consumption to 2µA when standby locate one times a day can lifelong for three years <over than 1200 pcs data> small and smart mainly using in financial rental and private car areas.
- Page 4 GPRS Communication Network GSM:800/900/1800/1900 MHz Quad-band Communication way -25 +75 Working temperature Storage temperature -40 +85 weight 100g Battery life 3 years (CR123A) Function Details Function Illustration Can set wake-up time 4 times each day, would wake-up Alarm Mode automatically in the setting time and after sent the Data then go into sleeping mode Sent the data at one fixed time and sent the location data in the setting...
- Page 5 For RTC awaken or Sensor awaken, GPS mode will wait for location no more than 150 seconds, otherwise it will start to send data by dialing immediately, if GPS mode locate within 150s. Time mode which is set 7 to 30 minutes will quick located within 90s. Time mode which is set 7 to 30 minutes will go into sleeping mode within 3 minutes.
- Page 6 SMS format: <SPSEK*P:SEKGPS*U:219.133.034.198,6688*A:CMNET*N:13600001111*R:0010,0020,1736,1 745*D:040*W:1,12,1200> SPBSJ: fixed format U: UDP IP and port, the format as the TCP format A: stands for APN parameter P: password R: Real-Time Clock mode, R:0010,0020,1736,1745, means 0:10,0:20,17:36,17:45 will wake up and send the location data N: stands for the terminal number D: timing mode minutes if the timing mode is setting between 1-6...
- Page 7 Flash slowly (lighter after 2 seconds GPRS have signal, but not on-line and dark after two seconds) Flash fast (2 times/second) terminal equipment get online normally GPS Indicator light (Yellow) Light-off long GSM mode broken or go into sleeping state Light long terminal equipment work abnormal Flash slowly (1 time/second)
- Page 8 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, purs uant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
