Summary of Contents for Tensortec DA-P1

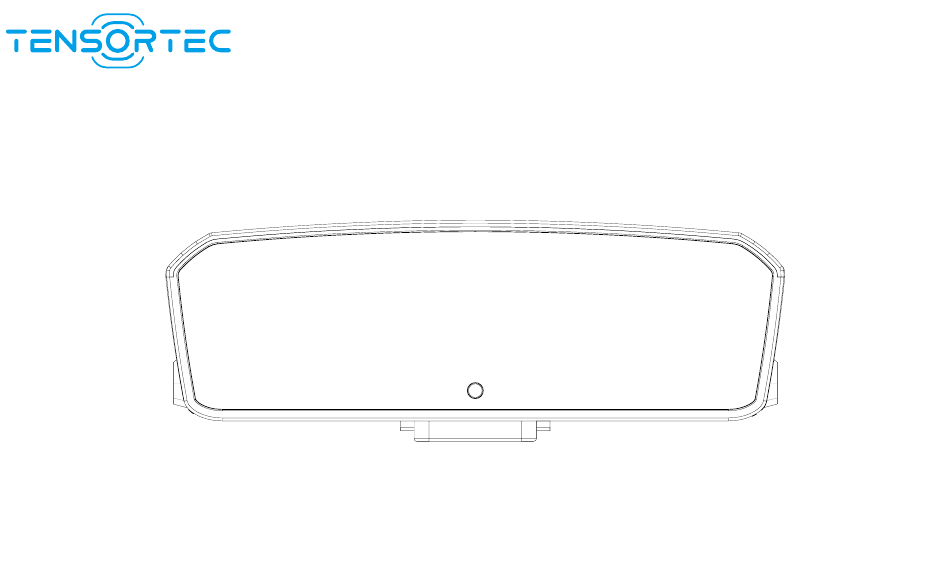

- Page 1 Driver Fatigue Monitor (Driveraid) User Manual...
- Page 2 Accessories User manual Main body Stand Bracket (option) Main body introduction Camera Led indicator light Button IR illuminator Data and power cable...
-
Page 3: Install Instruction
Install position-windshield/central rearview mirror (left&right hands suitable) install the device to the position (see above picture) remark: green light at top (the device is upside installed) Install Instruction Sit down with normal driving p, adjust the orientation and posture of Driveraid, make the acrylic side of DriverAid toward the driver's face, Then plug in power, waiting the DriverAid to green indicator light on, then the device is in working state. - Page 4 Install position-windshield next to A pillar (option) install the device to the position (see above picture) green light at bottom LED Lights Indicator Indcator lights meaning Indcator lights meaning orange standby green working condition green flashing abnormal install position alarm...
-
Page 5: Device Functions
Device functions 1. Fatigue detection: The alarm will be made once there is overtime eyelid closure and nap, though the driver gaze at safe zone 2. Distraction detection: The alarm will be made once gaze beyond safe zone overtime. 3. Calling detection:the alarm will be made once there is common calling poses and behaviors. 4. - Page 6 Device Work Flow Power on 1. Set up Face not in the scope Installation OK? Adjust Green light always on Smoking Distraction Fatigue Calling Please keep Please keep Red light No calling first alarm attention attention smoking 2. Working Standby Please keep Please keep No calling...
-
Page 7: Specifications
Specifications Product Name Daiveraid Model DA-P1 Detect Face Types All + glasses (sunglasses, myopia glasses) Detect Scopes face, eye, head pose Working Condition day & night (including tunnel, garage) Working Distance 50-100cm (from device to face) Fatigue Detect Accuracy 99.2%@ naked eye; ( 97.4% @wear glasses), keeps over 1.5S Distraction Detect Accuracy 98.2%, keeps over 3S... - Page 8 Q1: What is the major function of DriverAid? A: DriverAid is a device to detect the driving behavior and simultaneously alarm if the driver is in fatigue,distraction, calling or smoking states, in that it can prevent car accident and save driver's life.
- Page 9 driving occur, no need human intervention. Q5: Can DriverAid work at night? A: Yes, it can work day&night (including dark places like tunnel and garage), workable at extreme weather like strong sunlight, cloudy, raining and snowing days. Q6: Can it work when wearing glasses? A: Yes, but some rare glasses (like special coating glasses or very thick glasses and so on) may affect the detection accuracy.
- Page 10 Operate Precautions Special glasses will influence detect accuracy (like very thick glasses or special coating glasses) When driver's eyes are covered by hair, the device will wrongly considered it as fatigue driving. When the driver left his position, or when his/her face is not in detect scope, the device will keep showing orange light, which means the device is not in working status.
- Page 11 Waring This device complies with Part 15 of the FCC Rules. Operaion is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operaion.
- Page 12 paricular installaion. If this device does cause harmful interference to radio or television recepion, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
- Page 13 Shenzhen Tensor Technology Co.,Ltd Cell ： 0755-2692 3813 Email ： support@tensortec.net Website ：www.tensortec.net Address ： Rm402,HSAE Tech Building,No.6 Gaoxinnan,Nanshan District,Shenzhen,China,518000...
