ML931 / ML941 SET-UP GUIDE

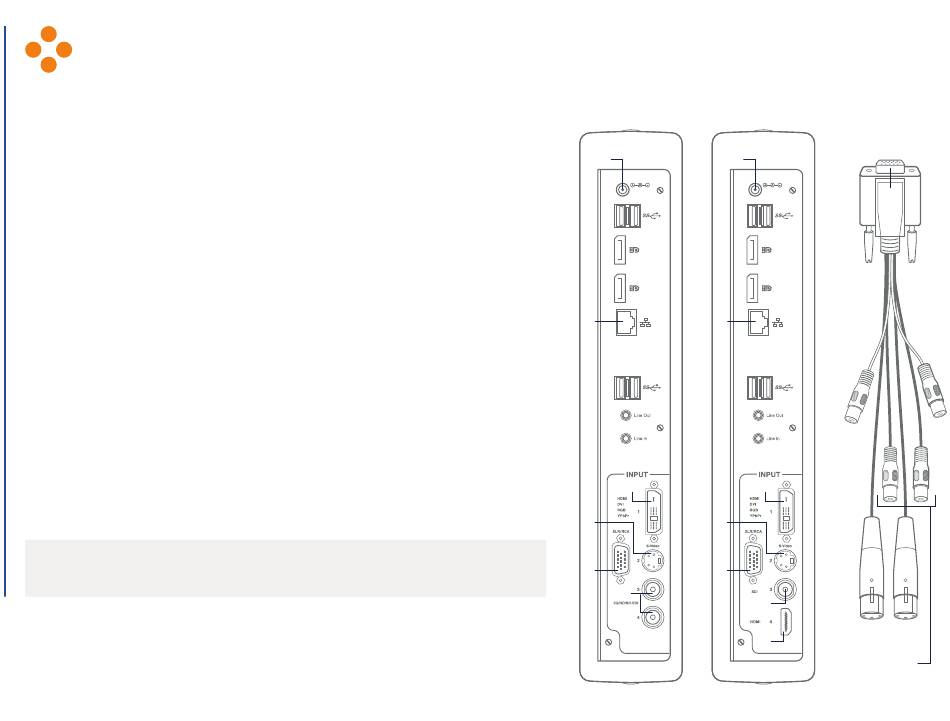

SETTING UP YOUR MEDIASITE ML MULTIVIEW RECORDER
1. CONNECT VIDEO SOURCE(S)
ML931
A. Connect a 3G/HD/SD-SDI video source to an open SDI port.
B. Connect an SD video source to the S-Video/Composite port.
ML941
C. Connect an HDMI video source to the HDMI port.
D. Connect a 3G/HD/SD-SDI video source to the SDI port.
E. Connect an SD video source to the S-Video/Composite port.
2. CONNECT A CONTENT (SLIDE) SOURCE
Connect the appropriate adapter to the HDMI/DVI/RGB/YPbPr port. Then connect
your laptop, white board, document camera or any content source to the adapter.
3. CONNECT THE AUDIO SOURCE
Connect the breakout cable to the Recorder. Then connect an audio source to the
appropriate connector on the breakout cable. If you are using embedded SDI or HDMI
audio, no additional audio source is required.
4. TURN ON SOURCES
5. CONNECT THE RECORDER TO THE NETWORK
6. CONNECT THE POWER CABLE
Connect the power cable to the Recorder and then plug into a power source.
7. POWER ON THE RECORDER
The power button is located on the left side of your ML Recorder (not shown).
ADDITIONAL FEATURES
On the back of your ML Recorder is an embedded handle, an adjustable kickstand for desktop
placement and a Kensington Security Slot.
ML931
ML941
