The new mounting flange can be used on any Dwyer Instruments, Inc.
gage that possesses a 4-1/2˝ (115 mm) diameter housing. The flange is
secured to the gage behind its bezel with three set screws. The set
screws hold the gage tight in place. The gage/flange can then be
attached to a surface or panel with a drill and the supplied mounting
screws. The flange's three mounting holes follow the industry standard
mounting pattern. The flange is made of a robust plastic composite and
comes with three pre-installed set screws, an allen wrench for tighten-
ing and three flange mounting screws.
INSTALLATION
Cut out a circular hole using the template on this manual. The diameter
hole size depends on tightness of set screws securing the flange to the
gage. Typically, a sufficient flange tightness will produce a required
diameter cut-out between 5 1/16˝ – 5 1/8˝. See the included template to
locate on your panel this proper size diameter cut-out in relation to the
locations of the three mounting screws.
Next, alternating between the three set screws, use the included allen
wrench to turn each set screw 1/4 to 1/2 turns at a time to ensure an
even tightness so one screw doesn't cause the flange to bow.
To properly secure flange to gage, 1 to 1.5 full revolutions of each set
screw will be required.
Last, install flange with secured gage to wall or panel using the three
included mounting screws.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.

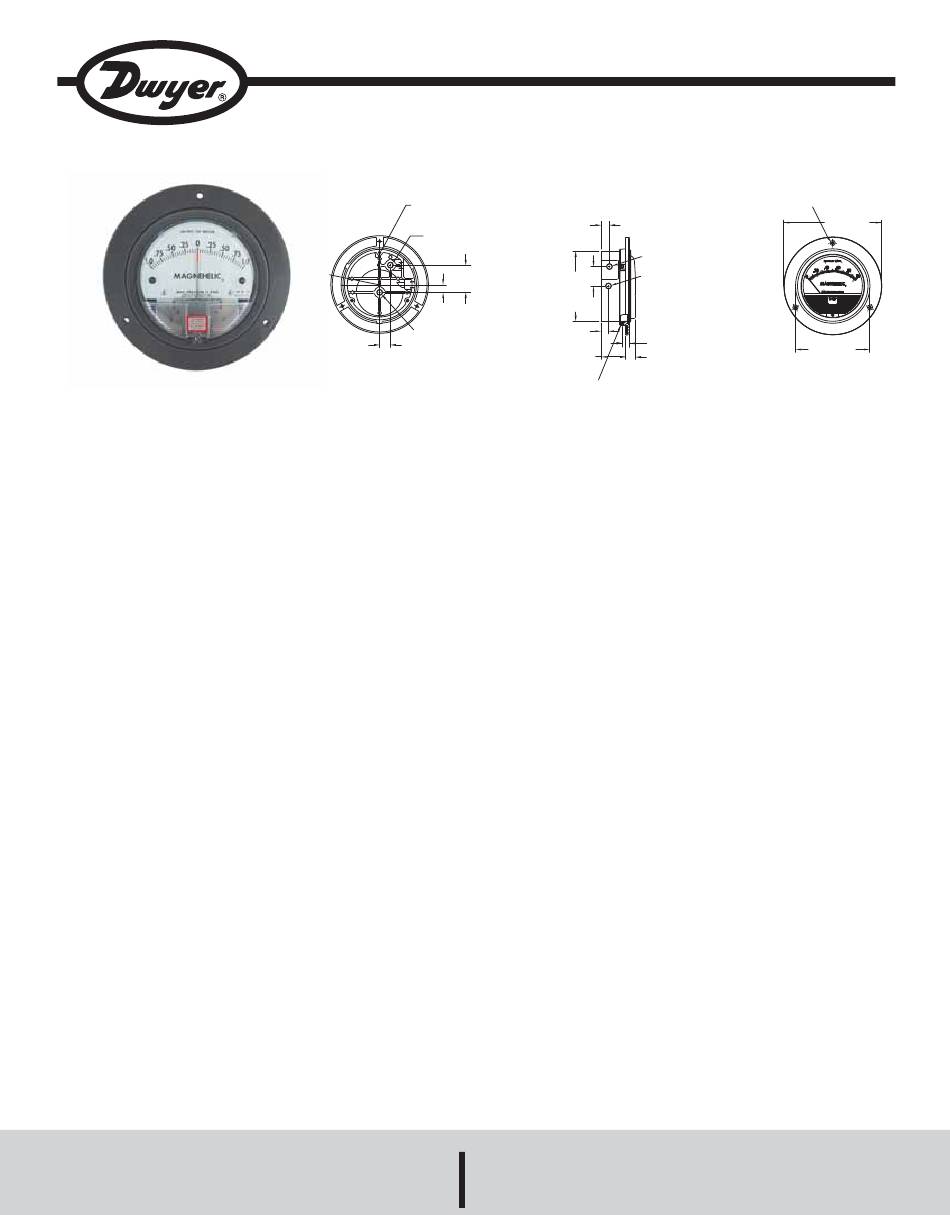

Series A-286 Magnehelic
Specifications - Installation and Operating Instructions
(3) #6-32 X 3/16 [4.76] OP HOLES
EQUALLY SPACED ON A ø4-1/8 [104.78]
BOLT CIRCLE FOR PANEL MOUNTING
1/8 FEMALE NPT HIGH
PRESSURE CONNECTION
1/2
[12.70]
11/16
1/8 FEMALE NPT LOW
[17.46]
PRESSURE CONNECTION
®
Gage Panel Mounting Flange
17/32
[13.49]
1-1/4
1-3/4
[31.75]
[44.45]
ø4-31/64
[113.90]
15/32
[11.91]
1019/32
[40.48]
(3) #8-32 X 1/4˝ [6.35] LG
SET SCREWS EQUALLY SPACED
SPECIFICATIONS
Flange Materials: Plastic.
Weight: 2.3 oz (65 g).
INCLUDED ACCESSORIES
3 Pre-installed metal set screws
3 Mounting screws
1 Allen wrench
1 Instruction manual with mounting template
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin P-A-286
(3) ø11/32 [8.73] X 82˝ COUNTERSINK
ø3/16 [4.76] X THRU ON
A 5-17/32 [140.49]
BOLT CIRCLE FOR PANEL
MOUNTING WITH FLANGE
1/8 FEMALE NPT HIGH
PRESSURE CONNECTION
1/8 FEMALE NPT LOW
PRESSURE CONNECTION
15/32
[11.91]
ø4-3/4
[120.65]
5/8
[15.88]
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
ø6-9/32
[159.54]
