Beijing Infomedia Electronic Technology Co., Ltd.
Tel: 400-653-8168 86-10-68275916
Fax: 86-10-68270176
http://www.lotoo.cn
Learn about this Device

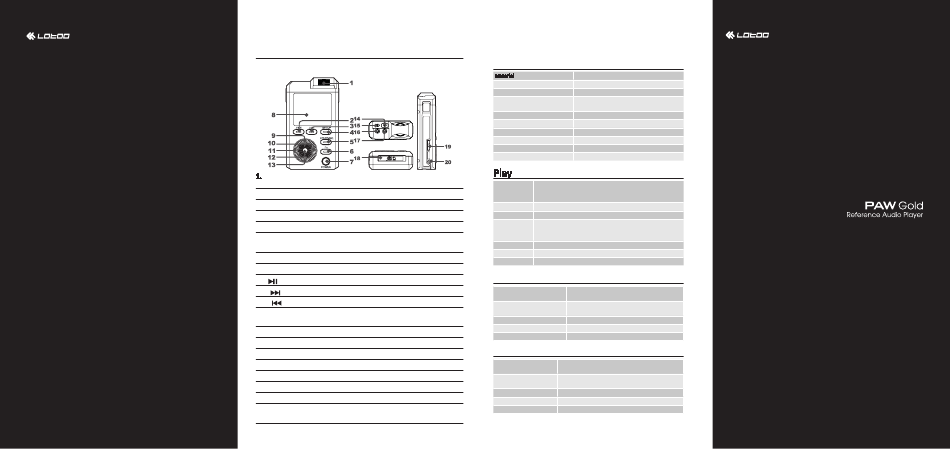

Introduction to Each Part
1. Volume knob: turn the knob to adjust the volume (directions user-
definable)
2. <FILE> Click to enter File Management function
3. <LIST> Click to enter Playlist function
4. <SETUP> Click to enter Settings function
5. <ATE/PMEQ> Click to enter ATE and PMEQ Settings functions
6. <Fn> User-defined function: functions may be user-defined in the
menu
7. <POWER> Turn on or off
8. Liquid Crystal Display (LCD)
9. <
> Play/Pause/Up
10. <
> Next/Fast Forward/Right
11. <
> Previous/Fast Reverse/Left
12. <OK> button OK/(Switch screen information or Play/Pause, to
be user-defined)
13.<■> Stop/Down
14. <HOLD> Lock keyboard
15. <GAIN> Headphone output gain
16. 3.5mm plug-headphone interface
17. LINE OUT port
18. SD card slot: support SD/SDHC/SDXC
19. USB 3.0 port
20. Power port: to charge lithium battery or energize this device via
power adapter
Specification
General Specification
Material
Aircraft-use aluminum alloy
Display
1.8-inch color OLED 160 * 128
Communication Interface
USB 3.0
Headphone jack (3.5mm)
Output Interface
Line output (3.5mm)
Size
60 x 104 x 25.4 mm (W x H x D)
Weight
280g
Battery
22Wh lithium-polymer battery
Memory Card
SDHC/SDXC (Max. 2TB)
Clock Jitter
5ps (Typ)
Firmware Upgrade
Support
Play
DSD64(2.8M,1BIT) / DSD128(5.6M,1BIT)
Play Format
File Format: DFF / DSF / ISO
FLAC / APE / WAV / AAC / ALAC / MP3 / WMA / M4A / WavePack
Play Duration
About 12 hours
Sampling Rate
PCM 8kHz-192kHz / DSD 2.8MHz
+15 dBu (headphone output, no load, high gain)
Output Level
0 dBu (headphone output, no load, low gain)
+ 9 dBu (line output, no load)
DAC Chip
TI PCM1792
Amp Chip
TI LME49600
Processor
ADI Blackfin 514 DSP
Headphone Output
±0.06dB (20~20kHz)
Frequency Response
±1dB
(5~50kHz)
Total Harmonic Distortion
0.00058%@1kHz (20-20kHz, A-weighted, no load)
+ Noise(THD+N)
Dynamic Range
121dB@1kHz (20~20kHz, A-weighted)
Signal to Noise Ratio (SRN)
120dB (20 ~ 20kHz, A-weighted)
Channel Isolation
-119dB
Line Output
±0.06dB (20~20kHz)
Frequency Response
±1dB
(5~50kHz)
Total Harmonic Distortion
0.00036%@1kHz (20-20kHz, A-weighted, no load)
+ Noise(THD+N)
Dynamic Range
121dB @ 1kHz (20-20kHz, A-weighted)
Signal to Noise Ratio (SRN) 120dB (20~20kHz, A-weighted)
Channel Isolation
-119dB
Quick Start Guide
