Ensure that the installation and wiring comply with all applicable codes.
•
For indoor use only. Do not place in wet or exposed areas.
•
Refer all service to qualified service personnel.
•
Installation
Move the cabinet to its intended location.
•
Connect the female end of the AC main line cord (provided in the parts box) to the IEC power connector
•
on the rear of the cabinet. Install the male end into a properly grounded power outlet.
Zip-tie the power cord to the bridge lance to prevent it from loosening when the cabinet is moved.
•
Place the cabinet in its final position, taking care to ensure that ventilation openings are not blocked and
•
the cords and cables are not pinched.
Adjust the four cabinet leg levelers down, so that the cabinet is level and does not move or rock. The
•
cabinet wheels must be raised up from the floor and not be supporting the cabinet.
Turn the cabinet power switch "ON."
•
Camera Topper Installation
Turn the photo booth OFF, and disconnect the AC main line cord BEFORE installing the camera topper.
•
Remove the access panel from the top of the photo booth via the four bolts.
•
Mount the access panel to the bottom side of the camera with the three bolts, nuts and washers provided.
•
Connect the wire connector inside the camera topper to the matching connector on top of the photo
•
booth, and replace the access panel on top of the photo booth.
Printer Paper Installation
Unlock, open, and remove the printer access panel. Keys are zip-tied to the photo booth curtain rod.
•
Press the "OPEN" button on the front of the printer door. The printer will unlock the door and allow the
•
door to be rotated down into the horizontal position.
Ensure that the photo booth cabinet is connected to the A.C. power outlet.
o
The cabinet must be "Turned On" in order to load paper into the printer.
o
Remove all shipping materials from inside the printer.
•
Follow the paper and ribbon installation instructions displayed on the decal inside the coin door.
•
The paper support reels are located inside the parts box shipped with the photo booth.
o
The ribbon support tray is located inside the parts box shipped with the photo booth.
o
Close the printer door by gently rotating the door up to the vertical position. The printer will then securely
•
lock the door into position.
The printer will feed four sheets of paper when the paper and ribbon have been correctly loaded
o
and the door has been properly closed.
(See the included Manufacturer's Printer Manual for more information and trouble-shooting.)
Configuration
Open the coin door, and press the "MENU" button.
•
Use the up and down buttons on the Touch Screen LCD monitor to select the appropriate options.
•
Set pricing, location, and other options.
•
Select "Exit" at the bottom of the Menu to return to normal operation.
•
View and download the Fun Stop Photos Manual and other helpful Guides at www.TeamPlayInc.com.
•
TEAM PLAY, INC.
847.952.7533
phone
847.952.7534
fax
Service@teamplayinc.com
www.teamplayinc.com
Quick Installation Guide
Need help?
Do you have a question about the Fun Stop Photos Gen II and is the answer not in the manual?
Questions and answers

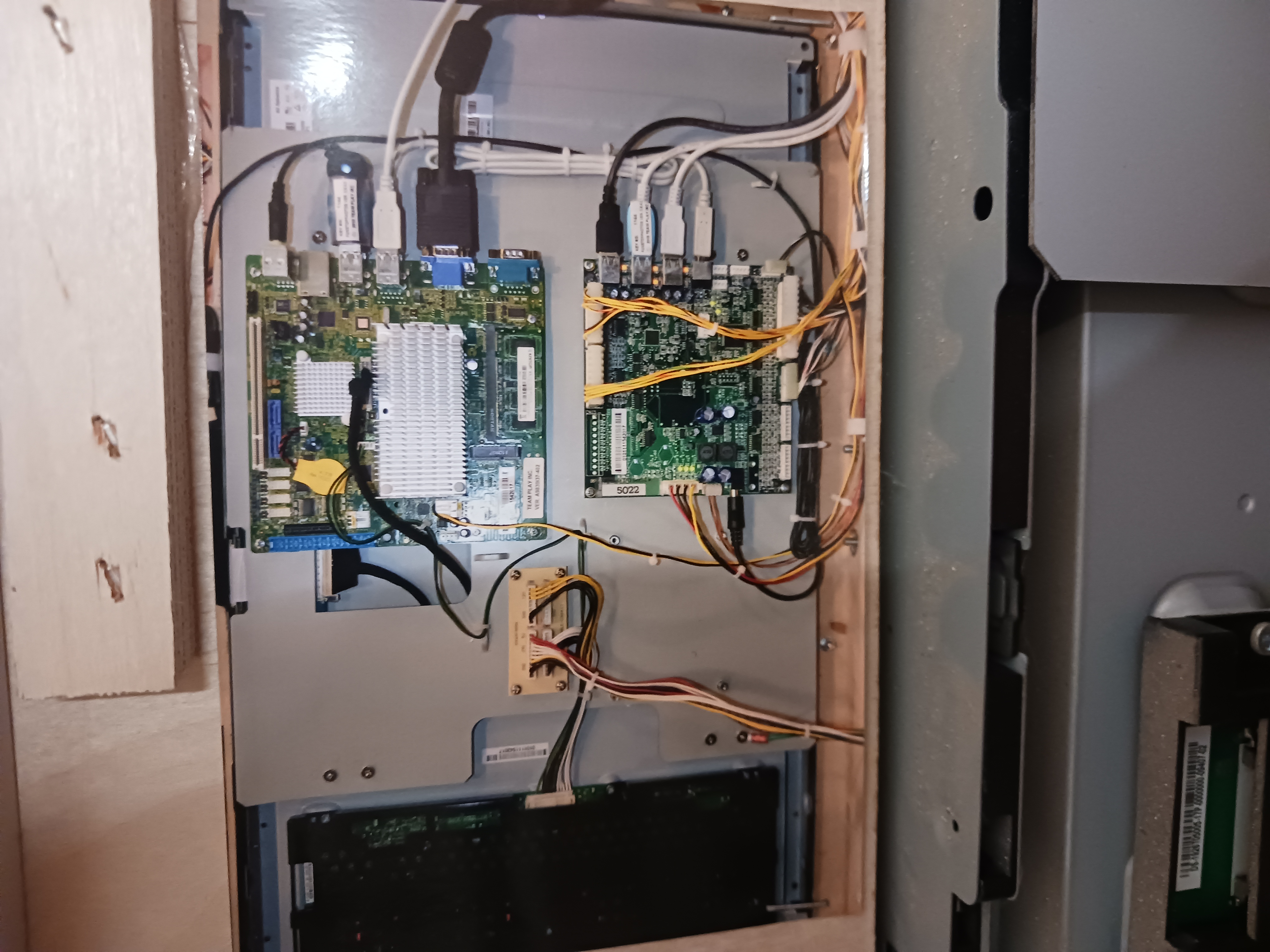

It seems that I do not have this wired properly lights on btm board but not on top board please help
