Luda Farm farmcamhd Installation Manuals

1
INCLUDED IN THE BOX
x1
Receiver (4 channel)
IP Camera
Art.No. 1076
Art.No. 1077
x1
Receiver Power Adapter Camera Power Adapter
Art.No. 6054 Art.No. 6055
x1
2 m HDMI Cable 18 m Power Extension Cable
Art.No. 5036 Art.No. 5035
x1
1 m Ethernet Cable USB Mouse
Art.No. 5037 Art.No. 7036
x2
Large Antennas Small Antennas
Art.No. 5033 Art.No. 5038
x3
9 m Antenna Cables Shrinkable Tubing
Art.No. 5034 Art.No. 7037

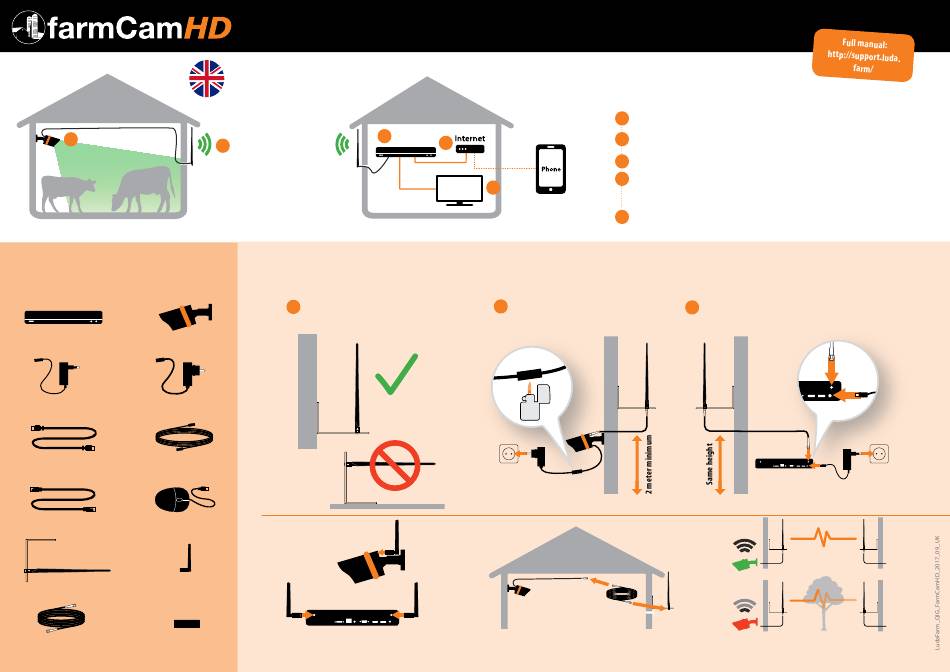

INSTALLATION GUIDE
3
Receiver
2
1250 m
Maximum Range
At Free Line of Sight
INSTALLATION
x1
Mount the large outdoor antennas vertically as illustrated below.
A
Place them at the same height and avoid any nearby metal objects.
x1
x1
x1
TIP!
x3
x1
Use the small antennas on camera and receiver when the distance
between them is short.
1
2
4
3
4
TV 5
5
B
Connect the antennas to camera and receiver using the 9 m
antenna cables. Connect the camera to power. Water-proof the
camera power connector using the shrinkable tube.
Use the included extra 9 m antenna cable if needed on either the
camera or receiver side.

HOW IT WORKS

The camera monitors your animals. The signal is transmitted through the cable (9-18m) to the outdoor antenna.
The signal is sent wirelessly to the office/home.
The receiver receives the signal through its outdoor antenna connected with cable (9-18m).
By connecting the receiver to your internet router you can see your animals/barn/buildings/farm wherever you go,
using any smartphone, tablet or computer connected to the internet.
By connecting the receiver to your TV you can see the camera picture there as well!
C Connect the receiver to power. The system will setup automatically
Avoid obstacles (trees, bushes, buildings) between the
outdoor antennas, to obtain a Free Line of Sight
signal quality.
= The best
