Summary of Contents for AromaTech AromaPro

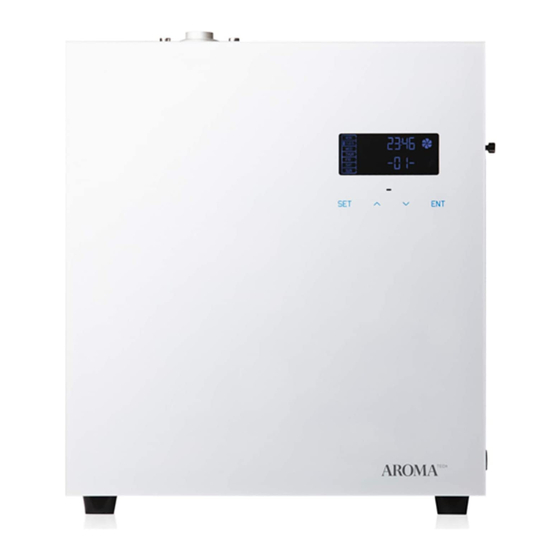

- Page 1 Think Scent AromaPro Essential Oil Nebulizing Diffuser...
- Page 2 Please comply with the following for safety reasons. Do not modify or disassemble the scent machine without first consulting AromaTech. In case of product failure please contact us. Do not use the power cord if it is damaged, kinked or cut. It's a fire hazard.
-
Page 3: Table Of Contents
CONTENTS DISCOVER THE POWER OF SCENTING! ............3 FEATURES ......................3 TECHNOLOGY .......................4 SPECIFICATIONS ....................5 DIAGRAM OF PARTS ....................6 ACCESSORIES ......................6 WHERE TO PLACE THE DIFFUSER ..............7 INSTALLATION INSTRUCTIONS ................8 HVAC INSTALLATION ..................10 TIMER SETTINGS....................15 INTENSITY AND CONSUMPTION..............18 AROMA OIL CONSUMPTION................19 MAINTENANCE....................20 TROUBLESHOOTING..................21 CAUTIONS......................22... -
Page 4: Discover The Power Of Scenting
Simply add your favorite AromaTech scents and transform your space in to whatever you need it to be. The AromaPro allows you to easily tailor your scent experience to your preferences and your space. With unique cold-air diffusion technology, this diffuser scents your environment subtly and consistently while preserving the quality of your 100% Essential or Aroma Oils. -
Page 5: Technology
TECHNOLOGY The AromaPro uses nebulization (cold-air diffusion) technology to diffuse our aroma oil blends, this is a process that breaks down the oils into a very fine dry mist. Nebulization preserves the intention and integrity behind our oils while maximizing their olfactive and therapeutic powers, without diluting in water, solvent, or using heat. -
Page 6: Specifications
SPECIFICATIONS [ Model AromaPro [ Dimension 279 x 254 x 88 mm / 11" w x 10" h x 3.5" d [ Machine N.W. 3.5kg / 7lbs [ Voltage Input: AC100V-240V 50/60Hz Output: DC12V1A Cable length: 100cm / 3.3ft [ Technology... -
Page 7: Diagram Of Parts
DIAGRAM OF PARTS Front side Top side LCD monitor Internal Fan Controls Fragrance nebulizer Wall hanging screws Air intake DC connector ACCESSORIES Power Bottle PU tube Manual 2 x HVAC Screws, 1 x Hose Mounting PTFE tape Silencer adaptor Adaptors Nails guide Bracket... -
Page 8: Where To Place The Diffuser
AromaPro is where there is a lot of airflow. • If you are not sure of the direction of the airflow, simply turn on the AromaPro and using a flashlight point it at the scent output and watch where the scent will travels. Alternatively, light up a match and blow it out immediately. -
Page 9: Installation Instructions
Parts and Tools Required You will require the following tools to wall mount or connect the AromaPro to your HVAC. If using AromaPro as a stand-alone or shelf top unit no installation or tools are required. 1. A level to ensure the wall mount bracket is exactly horizontal. - Page 10 3. Screw the bracket to the wall aligning with drywall plugs. Wall Mounting: 1. Always make sure the AromaPro is mounted straight up. 2. Attach the wall bracket with all the supplied screws or nails (depending on the surface). 3. Hang the machine on its hinges.
-
Page 11: Hvac Installation
HVAC INSTALLATION HVAC Pre-installation Checklist Please complete this checklist before to installing the scent diffuser 1. Confirm the area to be scented. 2. Locate the Air Handling Unit or duct that serves the area to be scented. 3. Make sure the Air Handling Unit does not use an open gas flame. 4. - Page 12 Open gas flames should absolutely be avoided. If installation must be over gas heated coils or open gas flames, contact AromaTech Technical Support. The best location for the Scent Machine is below the Scent Point. The air tube should be run upward as short a distance as possible and NEVER MORE THAN 3 FEET.
- Page 13 7. Take a second HVAC adaptor and screw it into the AromaPro. 8. Either wall mount the AromaPro to the duct, the wall or place on a shelf directly under the Scent Point connection. It’s important to keep the AromaPro as close as...
- Page 14 9. Cut supplied air tube to length to go from the AromaPro to the hose guide. The distance between the AromaPro and hose guide should be as short as possible. MAX 3 FEET. Do not leave any slack. Coiling or excess of the air tube will create air pockets and buildup of scent inside the tube.
- Page 15 Warning: After installation, please keep the machine vertical. Tilting or placing it flat may cause an oil overflow. If the AromaPro is tilted, the oil will over flow inside and may potentially damage the machine. WRONG CORRECT...
-
Page 16: Timer Settings
TIMER SETTINGS local time Mon-Sun 7-day timer work icon Intensity level Power ON Connect the 12V adaptor to the outlet and turn ON the power switch. Local time and scent intensity level will appear. Screen Lock and Unlock The LCD screen will automatically lock itself after 10 seconds if not used. Press SET and hold for 5 seconds to unlock the display. - Page 17 Setting Hours of Operation There are 5 working periods available to set the hours of operation (Figure 2). Touch SET button to set working period 1 (ON 1 & OFF 1). Press or button to adjust the ON time hours, then press ENT to move to the next position.
- Page 18 THUR Setting Scent Intensity You are now ready to start scenting. Remember, the AromaPro is a high performance adjustable device capable of scenting spaces from 100 to 4,000 sq.ft. Once the fragrance is in the device, basic operation is simply adjusting the scent level to match the room size, conditions, and your taste.
-
Page 19: Intensity And Consumption
INTENSITY AND CONSUMPTION Intensity level and Time Cycle 300s 150s 120s 120s 150s 300s Using the UP or DOWN button allows you to control the intensity of the fragrance output. -
Page 20: Aroma Oil Consumption
AROMA OIL CONSUMPTION AromaPro(500ml) Consumption(ml/h) Note: 1. Above data is based on using AromaTech aroma oil. 2. Using another type of oil may affect the consumption rate. Recommended Intensity Settings. The grading system starts from 1 being the lowest and ends with 20 being the highest. -
Page 21: Maintenance
MAINTENANCE Machine cleaning: 1. We recommend cleaning the AromaPro every 2 months. 2. When changing oil clean out the diffuser. 3. If scent diffusion becomes weak, cleaning is recommended. Cleaning steps: 1. Empty the oil from a canister and replace with 20ml of rubbing alcohol. -
Page 22: Troubleshooting
TROUBLESHOOTING Before submitting a warranty claim, please try the below steps to diagnose the problem and fix the issue. For warranty information, please contact AromaTech at 1.888.276.6245 or send us an email at help@aromatechsystems.com Problem Solution - Check if the power is ON or OFF. -
Page 23: Cautions
• Do not cover the diffuser with objects or material while in use. • Keep the device at least 24” from the ceiling. • Use only AromaTech diffuser blends; other oils may contain fragrances, base oils or synthetics that could result in malfunction. Some single note essential oils are also too thick or heavy for use in the ultrasonic diffuser. - Page 24 Avoid getting aroma oil liquid in contact with wood or other delicate surfaces. NOTE: Do not place the AromaPro near an HVAC return grill, exhaust fan or vent, open door or a window as that will cause the scent to escape the space. Remember you want to work with the natural airflow not against it.
-
Page 25: Faqs
Alternatively, you can wall mount it or connect to the HVAC. When wall mounting the AromaPro, make sure it is secured properly and is at least 6 feet off the ground and 20” from the ceiling. Refer to the User Manual for more details and how to connect to HVAC... - Page 26 Q: How long does the essential oil last in the bottle? The AromaPro uses a 500ml bottle of essential or aroma oil that will last 1 month with daily usage running about 12 hours a day. To preserve the essential oil, we highly recommend using the internal 24/7 timer and set it up so that the diffuser doesn’t run at night.
- Page 27 It can, but it depends on how big your house is and how many air handlers you have in your home. If you have more than 1 air handler, you will require an additional AromaPro. Q: How do I connect the AromaPro to the HVAC (air conditioning system)? Depending on the HVAC set up of your home and amount of air handlers that service your entire home, choose the air handler that covers the largest area.
- Page 28 Designed by AromaTech Inc. Vancouver, BC, Canada Consumer http://aromatechscent.com Toll Free: +1.888.276.6245 Business http://aromatechsystems.com Toll Free: +1.877.347.5239 Support http://support.aromatechsystems.com help@aromatechsystems.com...
