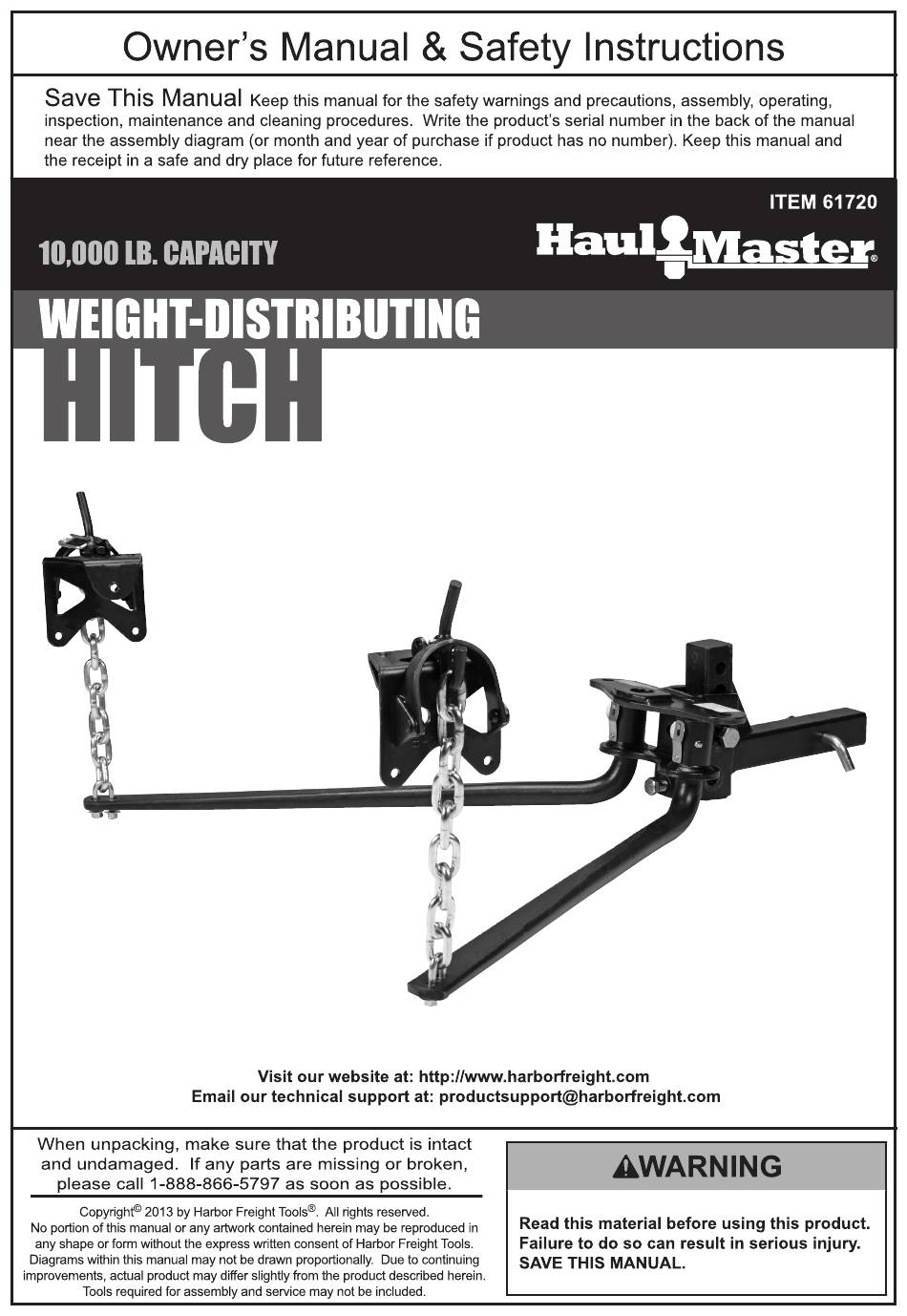

HAUL MASTER 61720 Owner's Manual And Safety Instructions

HAUL MASTER 61720 Owner's Manual And Safety Instructions

10000 lbs capacity hitch

Advertisement

Advertisement

loading
Need help?

Need help?

Do you have a question about the 61720 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAUL MASTER 61720

  • Page 2 It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. Page 2 For technical questions, please call 1-888-866-5797. Item 61720...
  • Page 3 This will abnormal noise or vibration occurs, have the ensure that the safety of the hitch is maintained. problem corrected before further use. SAVE THESE INSTRUCTIONS. Item 61720 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4: Square Shank

    Note: For greater stability, a Sway Control Kit (Item 96462, sold separately) can be used along with this Hitch. Components Connection Brackets Weight Distribution Head Square Shank Lock Pin Spring Bars Figure A Page 4 For technical questions, please call 1-888-866-5797. Item 61720...
  • Page 5: Retaining Pin Spring

    Weight Distribution Head (2). Weight 2. Secure in place using the washer(s) and Distribution nut(s) provided with the hitch ball. Head (2) Figure D Item 61720 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6: Angle Set Bolt

    Spacing Rivet (14) and from 0 to 7 Spacing Washers (13) until the Spring Bars tilt downward slightly (10-13°). Loosen the Angle Set Bolt (2c) before adding/removing Spacing Washers and tighten afterwards. Page 6 For technical questions, please call 1-888-866-5797. Item 61720...
  • Page 7: Nut 3/4

    Spring Bars (4) MUST be removed: temporarily removed. Hold onto the Spring Bar while prying the Retaining Pin Spring (2a) back, pulling the Bar Retaining Pin (2b) outwards. Item 61720 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 3. Slide Handle over pin on Bracket and must also be temporarily removed. CAREFULLY rotate down completely to release Chain. Repeat for other side. Page 8 For technical questions, please call 1-888-866-5797. Item 61720...
  • Page 9 • cracked or broken parts • any other condition that may 4. Before installing the Spring Bars, clean and affect its safe operation apply axle grease to the rounded end. Item 61720 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10: Table Of Contents

    Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 10 For technical questions, please call 1-888-866-5797. Item 61720...
  • Page 11 Assembly Diagram Item 61720 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
