Xunison BLE RCU User Manual

Table of Contents

Download this manual

AM003-2XU-002 brief user manual

一、Brief introduction

This product is an RF2.4G + BLE double-sided keyboard remote control, the

power button is RF2.4G communication mode, can switch the terminal device (smart

box), and other buttons are BLE communication mode. The receiver is built into the

device terminal board, and the remote is only the transmitter. The remote control

has one-way voice, air mouse, low power detection and other functions.

二、Basic instructions for remote control

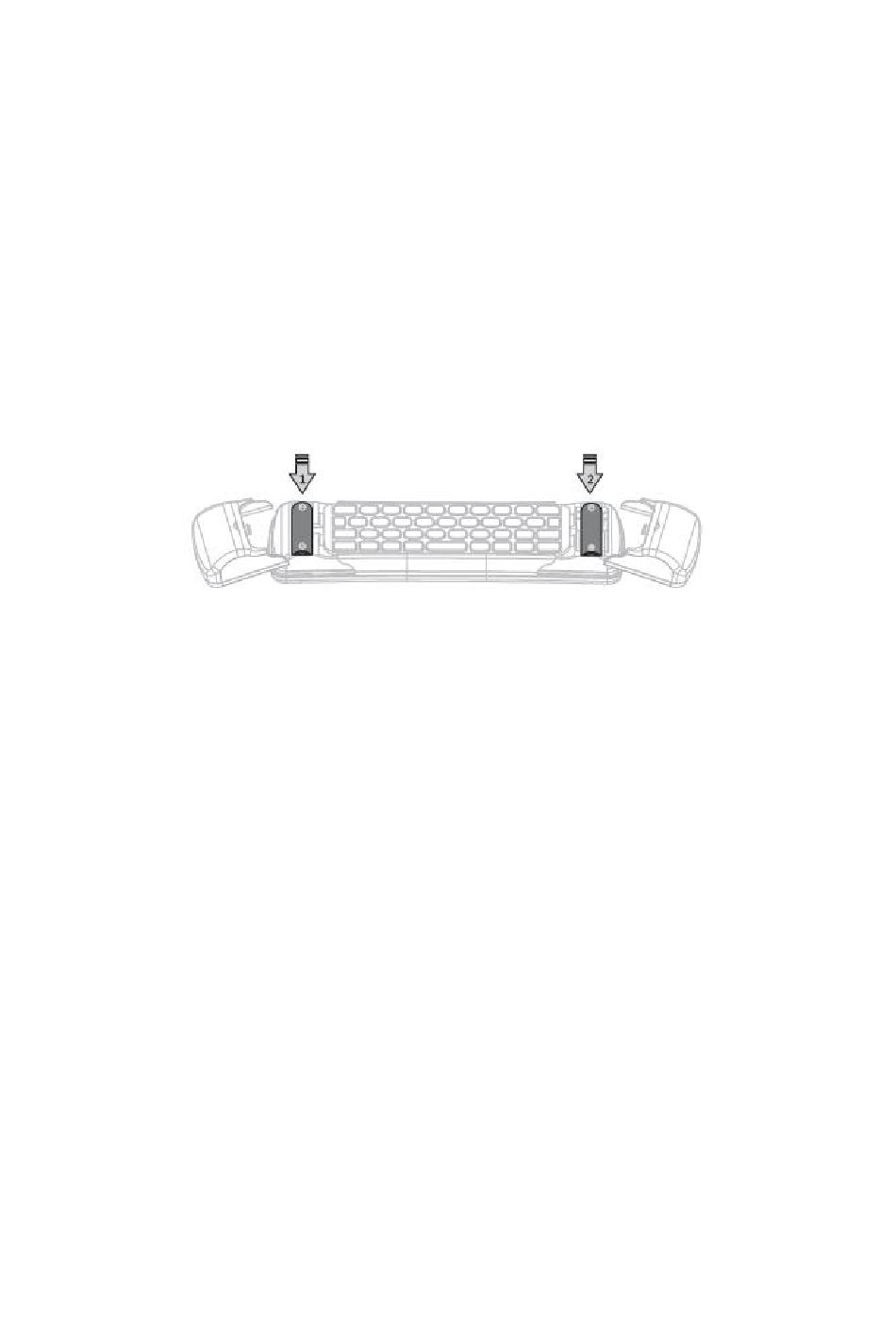

Open the battery cover at both ends of the remote control, and then press the

battery polarity indicator inside, insert two 7-cell batteries, and then install the

battery cover.

The remote control is one-to-one paired with the terminal device.RF2.4G, and the

BLE portion is respectively paired with the device. When the device is turned on,

power on remote control and press any button, remote control will connect with

device automatically.

RF2.4G part of the remote control: If the remote controller needs to be re-paired

with other devices, the terminal device needs to be restarted,and power on remote

control, press the power button, the remote control will enter the pairing state and

be paired with the terminal device.

BLE part of the remote control: If the remote control needs to be re-paired with the

device, press and hold [HOME] and [RETURN] on the A side of the remote control at

the same time for 3 seconds, after the BLE work indicator on the front of the remote

control flashes three times to enter pairing mode. The long light enters the pairing

state, and the remote controller enters the broadcast pairing request state. During

the pairing time, the terminal device searches for the Bluetooth device name of the

remote controller and selects to connect with it.

Remote control automatically exits the pairing state if it is not paired in 60 seconds

in paring state.

Bluetooth device name: BLE RCU

Air mouse function is turned off by default when the remote control is powered on.

Press air mouse button on A side to turn on/off air mouse function. When air mouse

is on, OK button is left mouse button. Press up/down/left/right button to turn off air

Table of Contents

Need help?

Do you have a question about the BLE RCU and is the answer not in the manual?

Page 1 Remote control automatically exits the pairing state if it is not paired in 60 seconds in paring state. Bluetooth device name: BLE RCU 3.Air mouse function: Air mouse function is turned off by default when the remote control is powered on.
Page 2 mouse.When air mouse is off, OK button is of ENTER function.If there is no operation for 15s when air mouse is turned on, the remote mouse function is turned off. 4. sensor correction function: Correction key combination: [VOL+] & [VOL-] The remote can enter the calibration state under the Bluetooth connection state.
Page 3 1.) Side A: Yellow green are RF2.4G work lights. 2.) Side A: Red is the BLE work indicator. The remote control BLE is coded, press the button to light up, and release to turn off. Turn on the voice function, the BLE indicator lights up, and turns off when it is off.
Page 4 FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Am003-2xu-002
