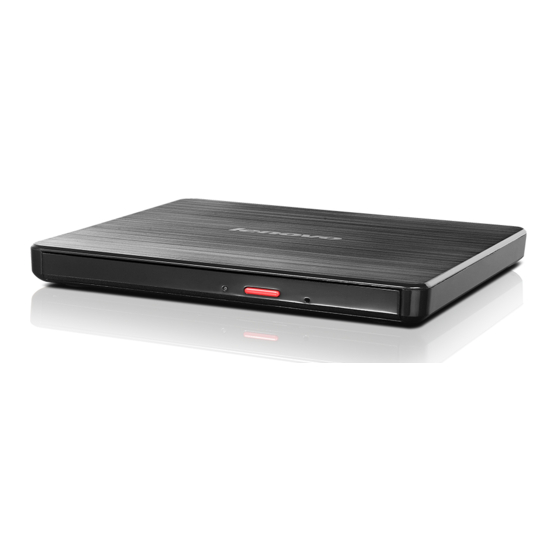

"Lenovo Ultra Slim DVD DB66"
User Guide

Advertisement

   Related Manuals for Lenovo Ultra Slim DB66

No related manuals

   Summary of Contents for Lenovo Ultra Slim DB66

  • Page 1 “Lenovo Ultra Slim DVD DB66” User Guide...
  • Page 2: Table Of Contents

    ■ Contents Safety precautions.........................1 Safety precautions..........................1 During operation..........................2 During installation & Others......................3 RoHS and WEEE..........................4 Part names..........................5 How to install..........................6 How to install...........................6 How to remove the USB cable......................7 How to use..........................8 How to use discs..........................8 How to use AV Connectivity......................8 How to use Smart Archive......................12 How to store and clean......................14 How to store discs.........................14...
  • Page 3: Safety Precautions

    Important IF A SOFTWARE PROGRAM IS TO BE BUNDLED WITH THE OPTICAL DISC DRIVE PROVID- ED BY LENOVO, THEN YOU MUST HAVE A SEPARATE, VALID LICENSE FOR SUCH BUN- DLED SOFTWARE WITH RESPECT TO THE MANUFACTURE, SALE OR DISTRIBUTION OF THE PRODUCT (SUCH AS A PERSONAL COMPUTER) CONTAINING THE OPTICAL DISC DRIVE AND THE BUNDLED SOFTWARE AS ITS COMPONENTS.
  • Page 4: During Operation

    This will cause irreparable damage to the disc. ▶Do not use low-quality discs (illegal, scratched, damaged, etc.). ▶If you use such discs, LENOVO is not responsible for the damage that this can cause. Do not put any heavy items on the drive.
  • Page 5: During Installation & Others

    ■ During Installation ・Installation Do not install the drive on the unstable surface. Do not place the drive in direct sunlight. Avoid very low or high temperatures. Avoid high humidity. ■ Others Make sure that no foreign material enters the drive casing. To protect against fire, do not use any flammable liquids such as alcohol or benzene on the drive.
  • Page 6: Rohs And Weee

    ■ RoHS and WEEE ・RoHS RoHS(Restriction of the use of certain hazardous substances in electrical and electronic equipment) The RoHS, the environmental regulation announced by European Union, restricts the use of lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE in products put on the market in the European Union after July 1, 2006.
  • Page 7: Part Names

    ■ Part names ・Top 1. LED 2. Eject button ・Front 1. Emergency hole Note Design and specifications are subject to change without prior notice. ・Back 1. USB interface port ・Components ▶Portable DVD Writer ▶Quick installation guide ▶Application software & user manual CD ▶USB cable Note ▶The type of accessories varies depending on a product model.
  • Page 8: How To Install

    ■ How to install 1. Connect the necessary cable, then switch on the drive. ▶Connect the USB cable to the USB connector on the drive. 2. Connect the other end of the USB cable to your PC, TV or other devices. ▶Connecting to the PC ▶Connecting to the TV (In AV Connectivity mode)
  • Page 9: How To Remove The Usb Cable

    ■ How to remove the USB cable Warning Do not disconnect the USB cable while the drive is in operation or the computer starts. ・For Windows This drive supports Windows Plug & Play. To remove the USB cable: 1. Close all active software programs. 2.
  • Page 10: How To Use

    ■ How to use discs Caution It is illegal to make unauthorized copies of DVD or software titles. A person who makes illegal copies can be held responsible for copyright infringement. If you use low-quality discs, this can increase the recording time or make it impossible to use the disc.
  • Page 11 ・How to use the AV Connectivity function 1. Hold down the Eject button on the ODD for 3 seconds while the ODD tray is open to switch the ODD to AV system support mode. At this time, the LED is lit. 2.
  • Page 12 Note ▶AV System: Supports the FAT32 file system. ▶File System: When an HDD, DVD/CD media or flash memory device is connected to a computer, Windows Explorer shows the file name, the size and the creation date for the files saved on the storage device, by using the information saved on the file system. In addition, the file system stores the locations of the data that make up the files on the media.
  • Page 13 Note Since some AV systems have a timeout scheme for recognizing USB devices, if recognizing a device is delayed, the process may time out and the device may not be recognized. This may occur when the disc contains a big file or a number of files. My TV works as a Personal Video Recorder when an external-type HDD is connected.
  • Page 14: How To Use Smart Archive

    ■ How to use Smart Archive What is the "Smart Archive" function? This technology provides a recording quality that has been optimized for storing DVDs for a long time when saving data to archival DVDs. For an optimal recording, the write speed is automatically selected and a recording algorithm specialized for long term archiving is also applied.
  • Page 15 Media storage method ▶Temperature: 25 °C, Humidity: 50% (on the basis of the disc specifications ISO10995) ▶Avoid radical changes of temperature or humidity. ▶Avoid exposure to light for a long time (especially sunlight or ultraviolet) ▶Use a dry-type pen for labeling. ▶Do not attach a sticker label.
  • Page 16: How To Store And Clean

    ■ How to store discs Important This part of the manual gives information to prevent damage or data loss. Read carefully and use the device correctly. ▶Do not place it in direct sunlight. ▶Store discs so that they are lying face down on a flat surface.
  • Page 17: Troubleshooting

    This drive can work via USB 1.1 interface, but its performance may decrease. Note For more information about using the software, refer to the help information in the program or on the website below. ▶Address: www.cyberlink.com ▶Address: www.nero.com ▶Address: www.lenovo.com...
  • Page 18: Caution: Possible Errors

    (The Windows operating system can be damaged if you install different language versions) Note We recommend that you use the data recording software provided by Lenovo. If you use other recording software, this can cause an error. The write speed for a disc can be restricted if: 1.
