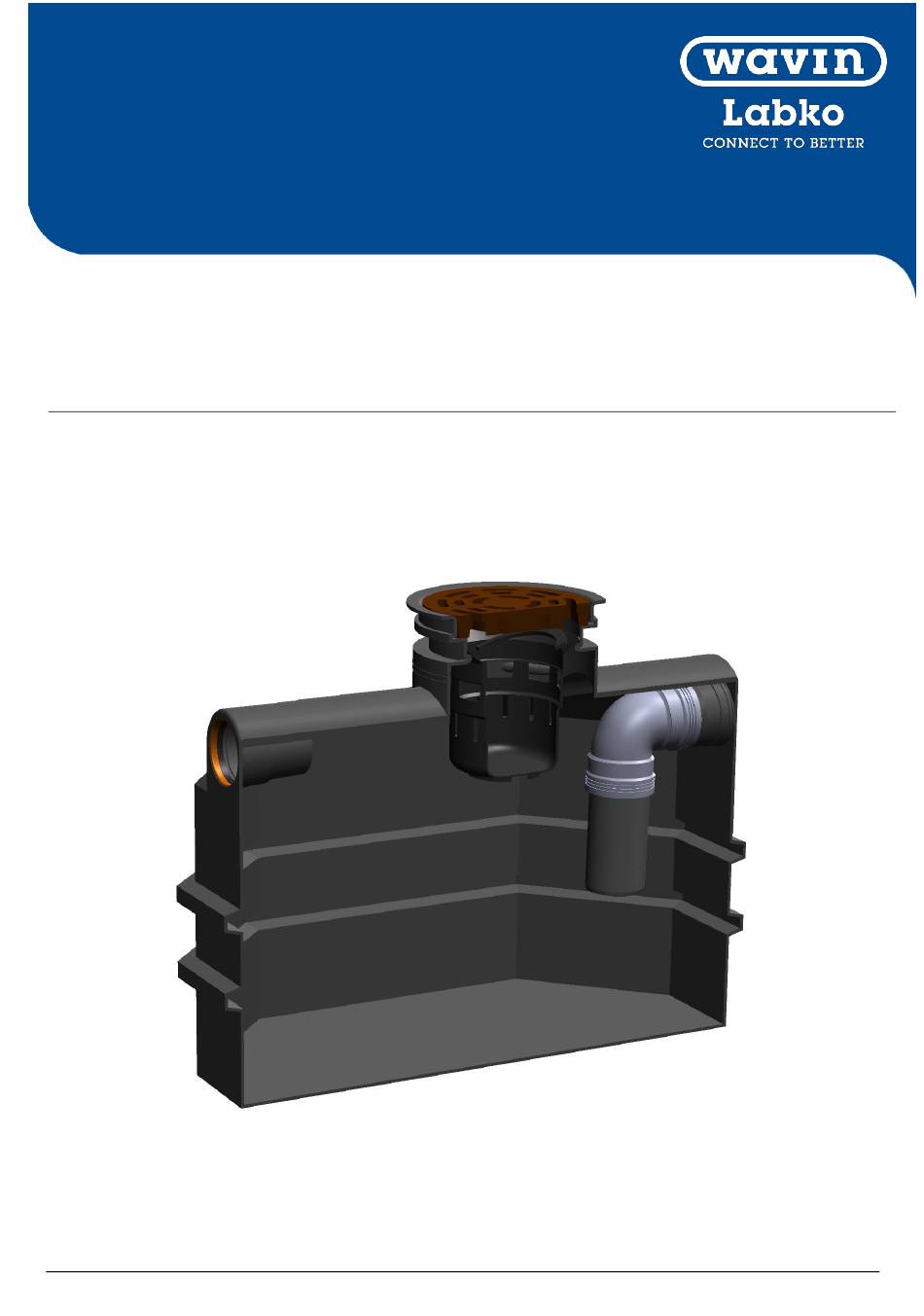

- Page 1 MiniPEK sand, oil and fuel trap Installation, use and maintenance instructions 02BI01_e 06/16...
-
Page 2: Table Of Contents
02BI01_e Contents GENERAL INFORMATION ............................3 ........................3 MPORTANT INFORMATION ON THE TRAP ..............................3 ANDLING THE TRAP MINIPEK SAND, OIL AND FUEL TRAP ........................4 ............................... 4 PERATING PRINCIPLE ................................4 TRUCTURE INSTALLATION INSTRUCTIONS..........................5 MAINTENANCE................................8 ................................8 EPARATOR .................................. -
Page 3: General Information
The traps are intended for indoor use, e.g. in boiler, auxiliary power and compressor rooms. MiniPEK traps must not be used on vehicle washing sites. MiniPEK traps are CE-marked in accordance with the EU regulation on construction products. Important information on the trap These installation instructions are general instructions, which means that every installation must be designed site-specifically and separately in cooperation with the designer and the authorities. -
Page 4: Minipek Sand, Oil And Fuel Trap
Sand and sludge – 40 l 80 l 120 l storage capacity Outlet fitting elevation Inlet fitting elevation Overall height 1,100 Width Length 1,060 1,060 1,060 Image 1 and table 1. Structure of the MiniPEK traps. WAVIN-LABKO OY 4(12) -
Page 5: Installation Instructions
MiniPEK 02BI01_ee INSTALLATION INSTRUCTIONS Perform trap groundwork in accordance with the site designer’s instructions. Please perform the sealing carefully. Position the trap into place onto the correct elevation measured from the upper surface of the covers, as specified in the plan. - Page 6 MiniPEK 02BI01_ee Next, open the inlet fitting if it is to be used. After positioning, support the trap so that it stays in place during casting. Continue the groundwork on site in accordance with the site designer’s instructions, including the installation of HVAC pipes, soil densification, sealing and concrete reinforcement.
- Page 7 MiniPEK 02BI01_ee Put the cover in the plastic bag, put the cover in place on top of the trap and hold in place during casting. WAVIN-LABKO OY 7(12)
-
Page 8: Maintenance
02BI01_ee MAINTENANCE MiniPEK traps must be subjected to regular inspections and maintenance measures in order to ensure reliable and good operation. Regular maintenance also ensures the best purifying results. It is recommended that inspections, emptying and other measures are logged into a maintenance journal, along with all maintenance operations and fault situations as well as operations during fault situations. -
Page 9: Maintenance Journal Template
MiniPEK 02BI01_ee MAINTENANCE JOURNAL TEMPLATE Date Operation Performed by 5 June 14 Separator installed A. Joe Sludge and oil amount checked Separator cleaned 12 October 14 A. Joe / E. Emptier Sludge and oil amount checked Separator cleaned 4 May 15 A. - Page 10 MiniPEK 02BI01_ee Notes and contact details: Name and contact information Wastewater system designer _______________________________________ _______________________________________ Wastewater system _______________________________________ constructor _______________________________________ Property owner _______________________________________ _______________________________________ Wastewater system _______________________________________ maintenance person _______________________________________ Precipitation tank emptier _______________________________________ _______________________________________ ________________________ _______________________________________ _______________________________________ ________________________ _______________________________________...
- Page 11 MiniPEK 02BI01_ee Notes: WAVIN-LABKO OY 11(12)
- Page 12 Wavin-Labko Oy Visiokatu 1 FIN-33720 Tampere Tel. 020 1285 200 E-mail: info@wavin-labko.fi www.wavin-labko.fi www.wavin-labko.fi © Wavin-Labko Oy 2014. Wavin-Labko reserves the right to make alterations without prior notice. Due to continuous product development, changes in technical specifications may occur.
