Summary of Contents for HUBITOOLS HU23090

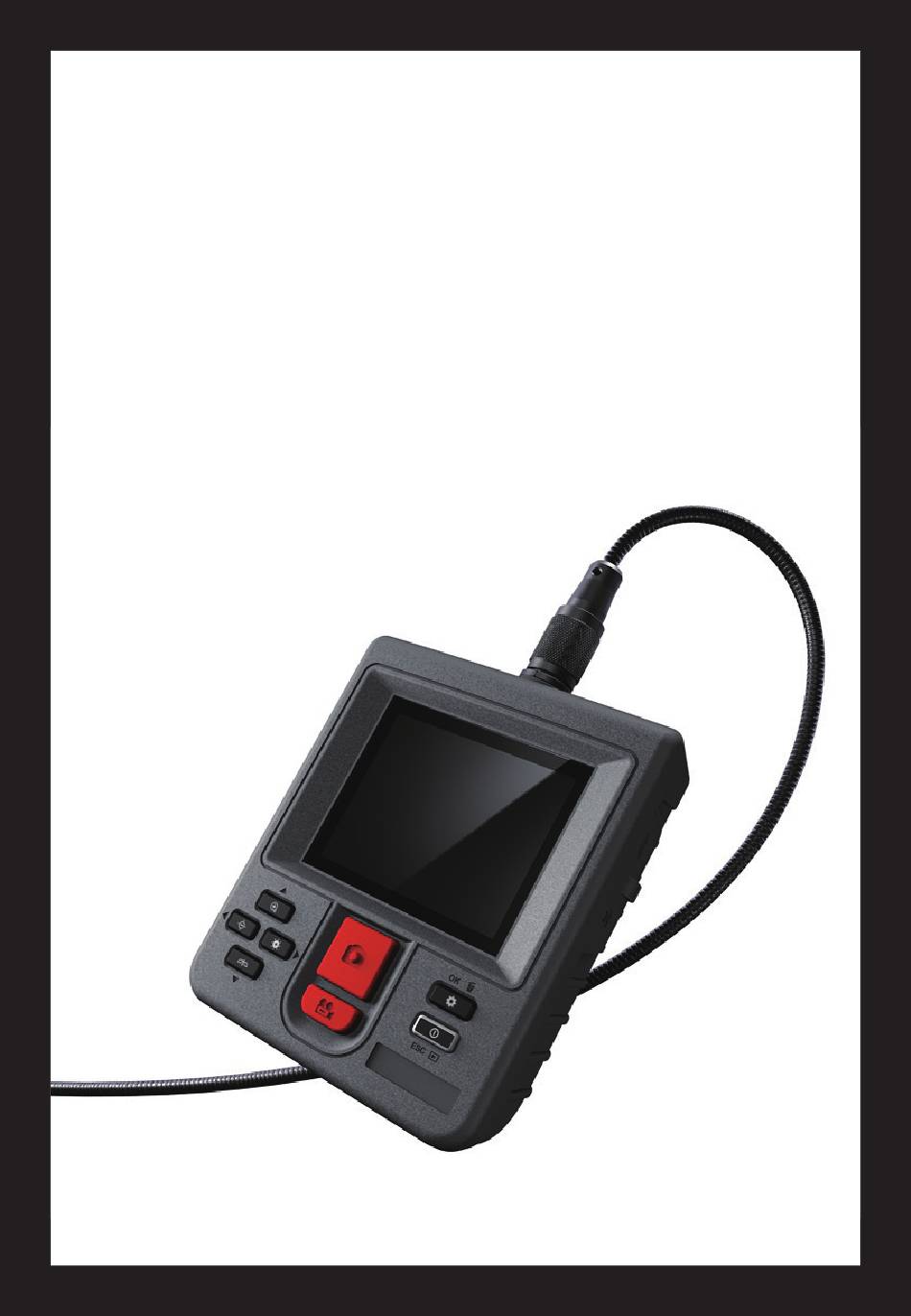

- Page 1 PORTABLE VIDEO BORESCOPE User Manual...
-
Page 3: Table Of Contents
CONTENTS Product Overview -------------------------------- 2 First Time Use ------------------------------------- 3 System Mode -------------------------------------- 5 Multifunction Key --------------------------------- 5 Screen ----------------------------------------------- 6 System Menu -------------------------------------- 6 Operating Guide --------------------------------- 8 Specification--------------------------------------10 Caution for Use----------------------------------11 User Guide... -
Page 4: Product Overview
Product Overview Device connector Screen SD card socket Video out USB out Function key Battery cover in the back User Guide... -
Page 5: First Time Use
First Time Use Step 1: Remove the battery cover. Step 2: Place battery in correctly, put the battery cover back on. Step 3: Close the battery cover and tighten the screw. User Guide... - Page 6 Step 4: Insert probe onto the device connector and tighten it up clockwise. Step 5: Insert SD memory card correctly, then screen will show memory card capacity. 2010/09/22 12:35:45 Step 6: Hold down the device switch until the screen displays. Step 7: After the device turns ON, aim the probe front end at an area to be snapped or recorded.
-
Page 7: System Mode
System Mode This device offers 3 easy-to-operate modes: “Preview”, “Browse” and “Menu ”. -Preview: Once the device turns ON, “Preview” mode is activated. Images received by the device are shown on the screen real-time. Under the “Preview” mode, the user may retrieve pictures or record. -Browse: Under “Browse”... -
Page 8: Screen
Screen System time 2010/09/22 12:35:45 Battery indicator Memory card capacity System menu Step 1: Press to enter the Menu mode. MAIN MENU Step 2: Press the button AUTO POWER OFF choose the item you need. DELETE ALL FILES Step 3: Press to enter. - Page 9 AV Output This command will send the video signal out through the AV port. The screen of the device will turn black until you execute this command again. Date / Time The user may set system time through this instruction. -Format: Set sequence of day, month, SETTINGS year.
-
Page 10: Operating Guide
Operating Guide Zoom-in & Mirror -Zoom-in: Press to enlarge the image, press again to enlarge more, and press it again to the default image setting. * Default image * enlarged 3X * enlarged 5X -Mirror: Press to mirror the image, and press it again to rotate the image. - Page 11 Taking Photos 2010/09/22 12:35:45 Press button during Preview mode to take the photo. If the bottom of the screen displays the file name, then your file is PICT0000.JPG properly saved. Video Recording Press button during Preview mode 2010/09/22 12:35:45 to record the video. In the recording process, the recording time is displayed 00:00:12 on the screen.
-
Page 12: Specification
Specification Main System System Dimension 140mm x 116mm x 42mm System Weight 300g (w/o battery) Display 3.5” TFT LCD QVGA Display Resolution 320X240 Power AA x 4 (Alkaline or Ni-HM) Battery life 4hours Recording Medium SD CARD (Support to 32G) Video Out Format NTSC &... -
Page 13: Caution For Use
Caution for Use -To avoid danger, do not put the insert tube into any flammable liquid or gas. -Do not use this product in a fuel tank or other dangerous environment such as a gasoline or alcohol storage tank. -The insert tube contains a series of small wires that control the optics and electronics of the camera tip. - Page 14 system in a cool, dry and well-ventilated place. -Camera lens cleaning: The user may clean the camera lens with a cotton swab and small amount of soft grease remover. _ Do not use any corrosive liquid for cleaning, such as alcohol or thinner.
- Page 15 1. Card reader function (mass storage mode): While USB cable is connected to PC, the screen will show MASS STORAGE MODE (while SD card is correctly inserted), you can access the image/video data from the SD card. Note: You can only process the images data in SD card, other operations are not allowed.
- Page 16 adaptor. After the power adaptor is plugged-in, the system will show up MASS STORAGE MODE, you can press “esc” button to live view and continue the inspection. Note: You don’t need to remove batteries inside the system while DC-in mode is on. When you unplug the DC power, the system will automatically switch to battery power.
- Page 18 PORTABLE VIDEO BORESCOPE User Manual...
