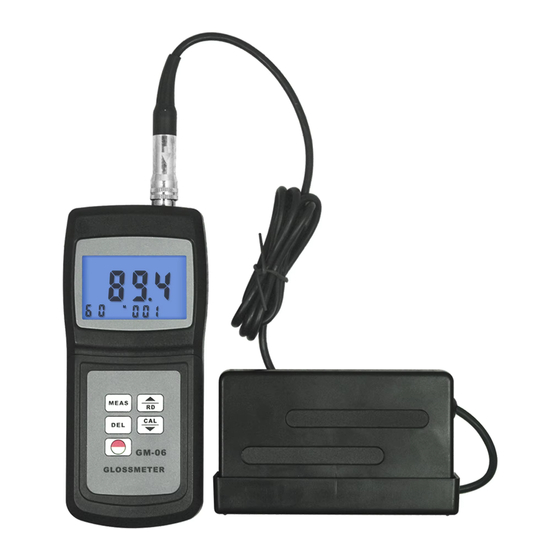

Landtek GM-06 User Manual

GLOSSMETER
GM-06
1.Feasures:
designed and manufactured in
accordance with international
standard ASTM D523, ASTM D1455,
ASTM C346, ASTM C584, ASTM
D2457, DIN EN ISO 2813, DIN
67530, EN ISO 7668, JIS Z 8741,
MFT 30064, TAPPI T 480, GB
9754, GB/T13891, GB 7706 and GB
8807. Its technical parameters
conform with JJG 696-2002.
Flexible use with its separate probe.
2.Applications:
Widely used in Floor maintenance,
Surface cleaning quality control,
Stone and tile gloss measurement,
Checking printed matter, Quality
control of paint and ink, Polished
m e t a l s u r f a c e ,
m e a s u r e m e n t
(chrome plating), Inspection of paint
protection and waxing, Auto-body
6.FRONT PANEL DESCRIPTIONS
6-1
6-10
6-2
6-3
6-9 6-7
6-6
6-13
6-4
6-11
MEAS
6-5 RD
CAL
DEL
GM-06
6-8
GLOSSMETER
6-12
6-1Sensor Plug 6-2Display
6-3Number Memorized 6-4Measuring key
6-5Delete key 6-6Read/Up key
6-7CAL/Down key 6-8Power key
6-9Angle indicate
6-10Jack for RS232 interface
6-11Measurement Aperture
6-12Protective Cap with calibration
standard
6-13Battery cover/compartment
i n s p e c t i o n ,
p a i n t S u r f a c e
inspection of plastic moldings,
E v a l u a t i o n o f d e t e r g e n t s a n d
washers, Checking masonry and
building exteriors.
3.TECHNICAL SPECIFICATIONS
Display: 4 digits backlit LCD
Measuring geometry: 60 Degrees
Range: 0.1 to 200 gloss units
Accuracy: ± 1.0 gloss unit
( against reference standard )
Resolution: 0.1 gloss unit
Repeatability: ± 0.5 GU
(0 ... 99.9)
Measuring area: 7x14mm ellipse
Data memorized: 254 groups
Data output: RS 232 C serial
interface
Power supply: 4 x1.5 V AAA
battery
7.Power ON / OFF
Press the key to power on the
meter. To turn it off, just press
this key again. This meter
is powered with 4 x1.5vAAA dry cell
batteries. To install or replace the
batteries, just remove the battery
cover and
Insert the new cells in the
. Pay attention to
battery cartridge
the battery pole.
8.Calibration :
Lay the main unit into the holder
with calibration standard of high
gloss black tile. Take a reading
b y p r e s s i n g t h e M E A S k e y .
Compare the measured value with
the value marked on the tile. If it
matches the value on the tile holder,
the instrument is within calibration
and ready for use. If the measured
value
Dimensions: main unit: 156
x67x28mm
Separate sensor:58x28x108mm
Weight: about 300g ( including
fitted batteries )
Working condition:
Temperature range 0 - 40°C
Humidity up to 85%
4.Accessories
Carrying case ........1 pc
Operation manual .........1 pc.
External probe..............1 pc.
Holder with calibration
standard...................1 pc.
.
cleaning cloth...1
Optic pc
5.Optional accessories
Cable & software for RS232C.
USB adaptor. Bluetooth interface.
does not match the assigned value,
just press the CAL key.
It is necessary to inspect the
condition of the calibration tile and
instrument optics before each
calibration. Any dust or debris on
the optic should be blown from the
lenses using dry clean air, the
optics must not be touched. If there
a r e a n y p e r m a n e n t m a r k s o r
s cr a tch e s o n th e len s e s , th e
instrument is no longer suitable for
measuring and should be returned
to an authorized service center.
T h e c a l i b r a t i o n t i l e m u s t b e
perfectly clean from smears and
s c r a t c h e s b e f o r e a t t e m p t i n g
calibration. Fingerprints and dust
can be removed with the supplied
optic cleaning cloth.
