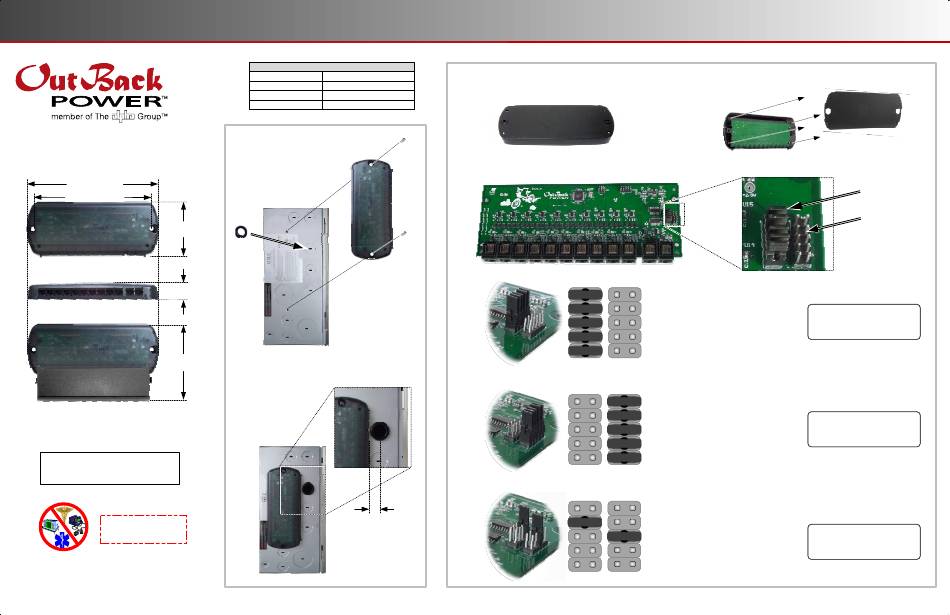

OutBack Power HUB 10.3 Quick Start Manual

Quick Start Guide
Dimensions
10.63" (27 cm)
9.24" (23.5 cm)
4.23"
(10.7 cm)
1.27"
(3.2 cm)
6.18"
(15.7 cm)
Contact Technical Support:
Telephone: +1.360.618.4363
Email: Support@outbackpower.com
Website: www.outbackpower.com
IMPORTANT:
Not intended for use with
life support equipment.
OutBack Power and the OutBack Power logo are trademarks owned and used by
OutBack Power Technologies, Inc. The ALPHA logo and the phrase "member of
the Alpha Group" are trademarks owned and used by Alpha Technologies.
These trademarks may be registered in the United States and other countries.
900-0154-01-00 REV B.vsd\2014-02-18
©2013 OutBack Power Technologies. All Rights Reserved.
Parts List
HUB10.3 HUB Wiring Cover
#10 x ½" Screws x 2 Cable, CAT5e, 3' (1 m) x 2
Shutter Bushing x 2 Cable, CAT5e, 6' (2 m) x 3
Snap Bushing x 2 Cable, CAT5e, 10' (3 m) x 4
Mounting
2.
1.
3.
1" recommended
Changing Jumpers
Back of HUB 10.3
1.
3.
4a.
4b.
4c.
2.
Jumper position identified by
Used for Subphase Master stacking in FX
MATE3 on power-up:
and GS inverters (both three-phase and
series configurations).
Searching for Devices
For these applications, place all jumpers
in the positions noted in the photograph
and the diagram.
NOTE: This option requires MATE3
firmware revision 002.013.000 or higher.
This is the factory-installed initial position. Jumper position identified by
MATE3 on power-up:
Used for classic series, OutBack series, and
parallel stacking. Also used for three-phase
Searching for Devices
OutBack stacking with models GVFX(E) and
GTFX(E) .
For these applications, place all jumpers in
the positions noted in the photograph and
the diagram.
Jumper position identified by
Used for three-phase OutBack stacking with
MATE3 on power-up:
FX, VFX, FX(E) or VFX(E) inverters.
For these applications, place only two jumpers
Searching for Devices
in the positions noted in the photograph
and the diagram.
HUB10.3 Sub-phase Master
Remove all remaining jumpers. No others are
used for this configuration.
HUB 10.3
A Positions
B Positions
Found
HUB10.3
Found
HUB10.3
Found
